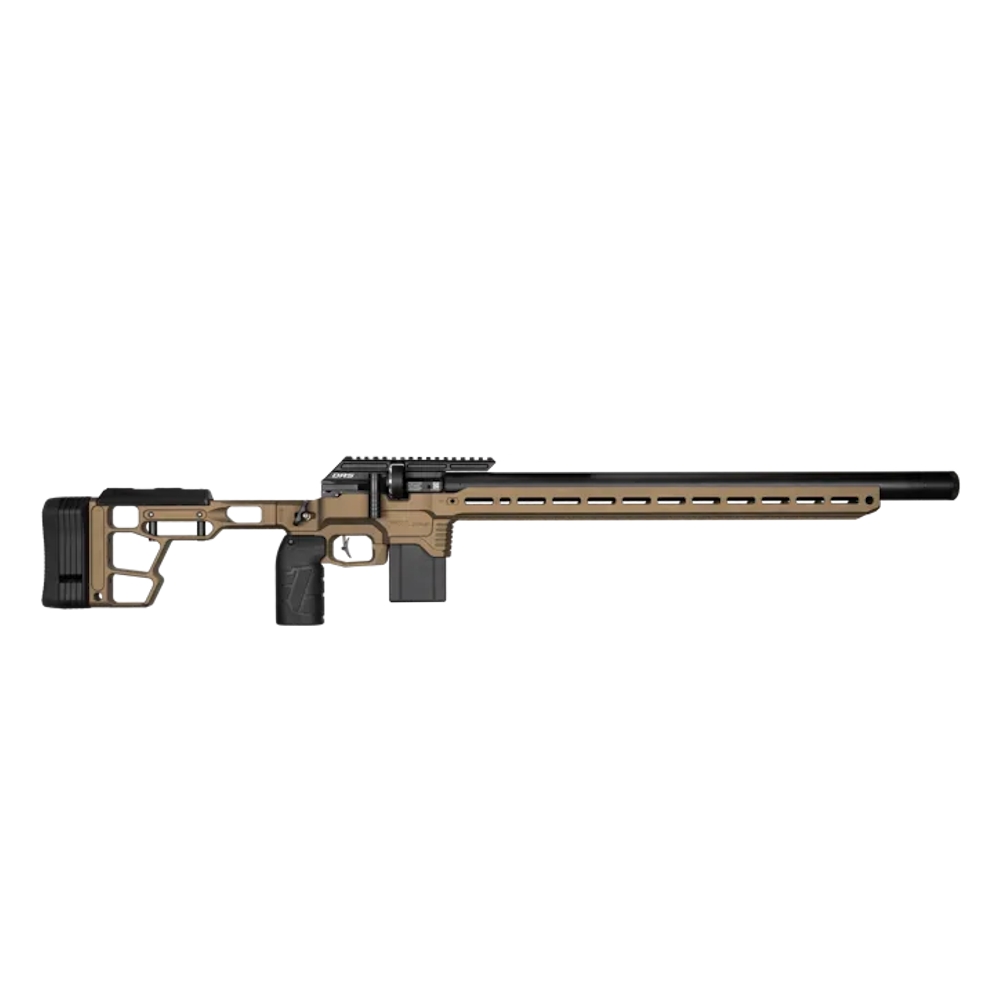

FX DRS MKII Pro MDT Elite Chassis Air Rifle with 600mm Standard Barrel (Sub-12 ft/lbs)
The FX DRS MKII Pro MDT Elite Chassis Air Rifle combines competition-ready ergonomics with outstanding accuracy and adjustability. Available in .177 and .22 calibre, it features a 600mm barrel, rigid APB Air Pressured Barrel System, purpose-built MDT Elite Chassis and crisp Match Grade Trigger. The upgraded AMP MKII regulator, external hammer and regulator adjustments, 30 MOA Picatinny rail, M-LOK slots and smooth side-lever action create a balanced, highly tunable precision platform for demanding shooters.
The FX DRS MKII Pro MDT Elite Chassis Air Rifle is a refined precision platform built for shooters who demand outstanding accuracy, consistency and control. Available in both .177 and .22 calibre, this sub-12 ft/lb model features a 600mm Standard barrel and has been engineered for competition, training and precision shooting.
Developed in collaboration with MDT, the purpose-built MDT Elite Chassis delivers exceptional rigidity, competition-proven ergonomics and a perfectly balanced shooting position. Its slim, streamlined profile improves manoeuvrability, allowing the rifle to move naturally between positions while remaining stable and comfortable to shoulder.
At the heart of the MKII is the new APB Air Pressured Barrel System, which routes the air cylinder around the barrel to create a low-profile design with excellent barrel rigidity. The proven FX interchangeable liner system is retained, while the updated design allows liners to be changed without degassing the rifle.
A Match Grade Trigger provides a crisp and consistent break, complemented by the smooth right-handed side lever and high-capacity removable magazine. The upgraded AMP MKII regulator, external hammer adjustment and external regulator adjustment give shooters greater control over the rifle’s performance.
Further competition-focused features include a 30 MOA Picatinny optics rail, M-LOK accessory slots, dual pressure gauges, a 63cc power plenum with an additional 9cc internal plenum, a 260cc air capacity and a convenient QD fill probe. The result is a highly tunable and balanced precision air rifle designed to inspire confidence with every shot.
- Model FX DRS MKII Pro MDT Elite Chassis
- Available calibres .177 / 4.5mm and .22 / 5.5mm
- Magazine capacity 16 shots in .177 and 14 shots in .22
- Magazine type Removable, high-capacity, easy-load magazine
- Barrel length 600mm Standard
- Overall length 1,035mm
- Weight 3.5kg
- Orientation Right-handed
- Cocking system Smooth right-handed side-lever
- Trigger Match Grade Trigger
- Safety Lever-style safety
- Regulator AMP MKII regulator
- Optics mounting rail 30 MOA Picatinny rail
- Muzzle thread 1/2 UNF
- Grip MDT Elite
- Maximum fill pressure 230 bar
- Air cylinder system APB Air Pressured Barrel System
- Air capacity 260cc
- Plenum 63cc power plenum plus 9cc internal plenum
- Charging system QD pin probe
- Pressure gauges One system-pressure gauge and one regulator-pressure gauge
- .177 shot capacity Approximately 135 shots using 10.34gr pellets at 720fps
- .22 shot capacity Approximately 200 shots using 15.89gr pellets at 580fps
- Maximum energy Up to 12 ft/lb
- Power classification Sub-12 ft/lb
- Purpose-built MDT Elite Chassis developed specifically for the FX DRS platform
- Competition-proven chassis design offering excellent rigidity and stability
- Slim, streamlined profile for improved handling and manoeuvrability
- Optimised balance point for greater control from standing, kneeling and supported positions
- Designed to reduce shooter fatigue during longer training or competition sessions
- APB Air Pressured Barrel System provides exceptional barrel rigidity within a low-profile design
- FX interchangeable barrel liner system for added versatility
- MKII liner design allows liners to be changed without degassing the rifle
- Crisp and consistent Match Grade Trigger
- Smooth right-handed side-lever cocking action
- High-capacity removable magazine with an easy-loading design
- AMP MKII regulator for consistent and dependable shot performance
- External regulator adjustment for convenient tuning
- External hammer adjustment for additional performance control
- Integrated Picatinny optics rail with forward inclination for long-range scope adjustment
- M-LOK accessory slots for mounting compatible shooting accessories
- MDT Elite pistol grip for a comfortable and controlled shooting position
- Lever-style manual safety
- Dual pressure gauges for monitoring the rifle’s system and regulator pressures
- Quick-detach fill probe for straightforward charging
- Threaded muzzle for fitting compatible moderators and muzzle accessories
- Designed for precision shooting, training and competitive PRS-style disciplines
- Available in both .177 and .22 calibre
- FX DRS MKII Pro MDT Elite Chassis Air Rifle with 600mm Standard Barrel
What calibres is the FX DRS MKII Pro available in?
This model is available in both .177 and .22 calibre.
Is this rifle sub-12 ft/lb?
Yes, both calibre options are supplied with a maximum power of up to 12 ft/lb.
What type of shooting is this rifle designed for?
The FX DRS MKII Pro is designed for precision shooting, competition use, training and PRS-style shooting disciplines.
What is the magazine capacity?
The .177 model uses a 16-shot magazine, while the .22 model uses a 14-shot magazine.
Does the rifle come with a magazine?
Yes, it uses a removable, high-capacity, easy-loading magazine.
What barrel length does this model have?
This version is fitted with the 600mm Standard barrel.
Can the barrel liner be changed without emptying the air cylinder?
Yes. The updated MKII APB barrel system allows the liner to be changed without degassing the rifle.
What is the APB barrel system?
The APB Air Pressured Barrel System positions the air cylinder around the barrel, creating a slim profile while improving barrel rigidity.
Is the regulator adjustable?
Yes, the rifle features an externally adjustable AMP MKII regulator.
Can the hammer settings be adjusted?
Yes, the rifle has external hammer adjustment for convenient performance tuning.
What type of trigger does it have?
It is fitted with a Match Grade Trigger designed to provide a crisp and consistent break.
Is this rifle suitable for left-handed shooters?
The rifle has a right-handed side-lever cocking system and is primarily configured for right-handed use.
What type of scope rail is fitted?
It features a 30 MOA Picatinny rail for mounting compatible riflescopes.
Can a moderator be fitted?
Yes, the muzzle has a 1/2 UNF thread for fitting a compatible moderator or muzzle accessory.
Does the chassis accept accessories?
Yes, the MDT Elite Chassis includes M-LOK slots for mounting compatible accessories.
What is the maximum fill pressure?
The rifle has a maximum fill pressure of 230 bar.
How is the rifle filled?
It is charged using the supplied-style QD pin probe system.
How much air does the rifle hold?
The rifle has a 260cc air capacity.
How many shots can I expect from a fill?
The .177 model can provide approximately 135 shots using 10.34gr pellets at 720fps. The .22 model can provide approximately 200 shots using 15.89gr pellets at 580fps. Actual shot count may vary depending on setup, pellet choice and conditions.
Does the rifle have pressure gauges?
Yes, it has two pressure gauges: one for system pressure and one for regulator pressure.
How much does the rifle weigh?
The rifle weighs approximately 3.5kg without a scope or additional accessories.
What is the overall length?
The overall length of the 600mm Standard model is approximately 1,035mm.
Is the rifle supplied with a scope?
No scope is included. A compatible scope and mounts will need to be selected separately.
Is it suitable for hunting and pest control?
Yes, the sub-12 ft/lb versions can be suitable for lawful pest control when used responsibly with the correct calibre, pellet and shot placement.
Do I need a firearms certificate to own this rifle in the UK?
In England and Wales, a sub-12 ft/lb air rifle can generally be owned without a firearms certificate, subject to age restrictions and local laws. Different rules apply in Scotland and Northern Ireland, so customers should check the regulations that apply in their area.
- All FX Airguns carry a One Year Warranty against faulty workmanship and defective materials.
