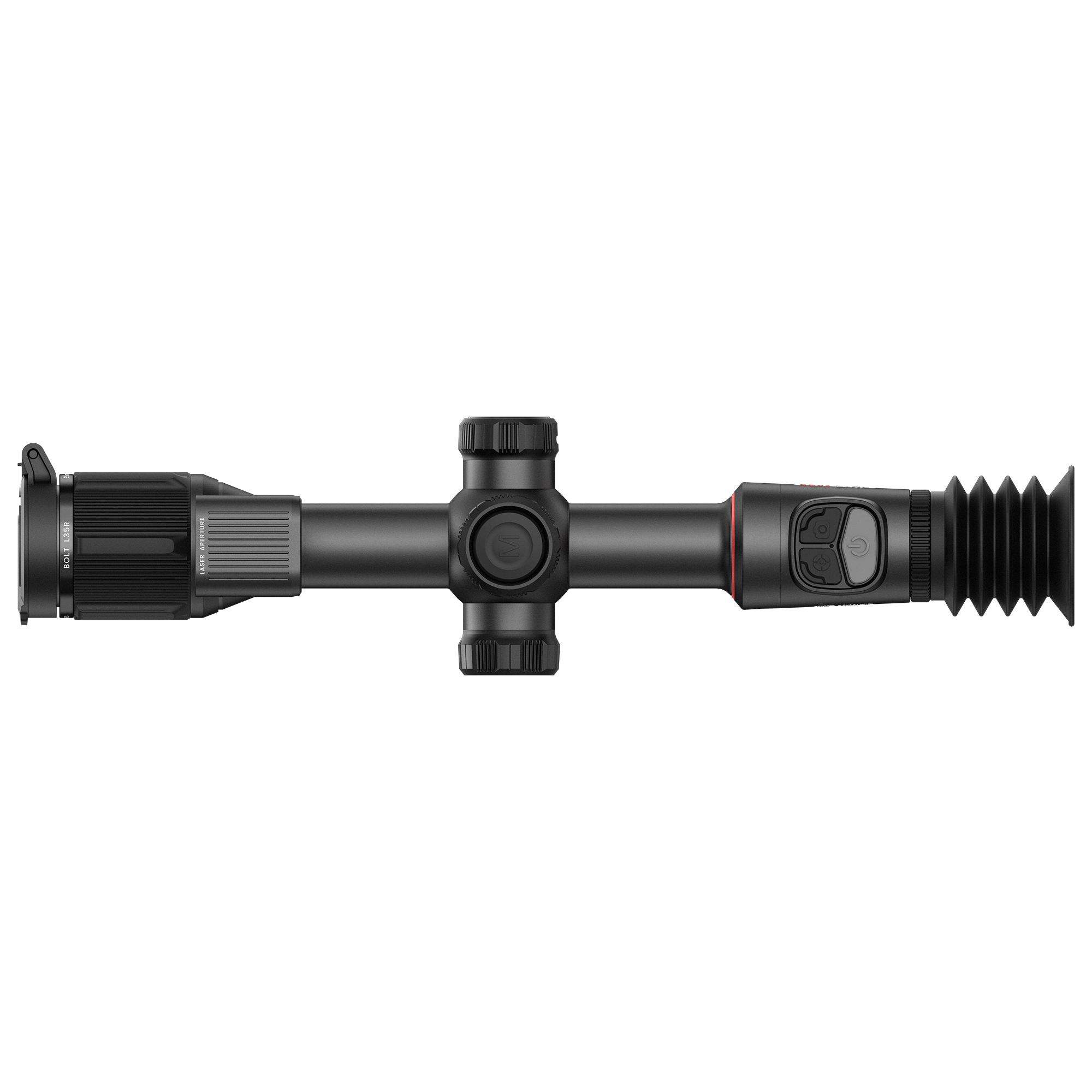

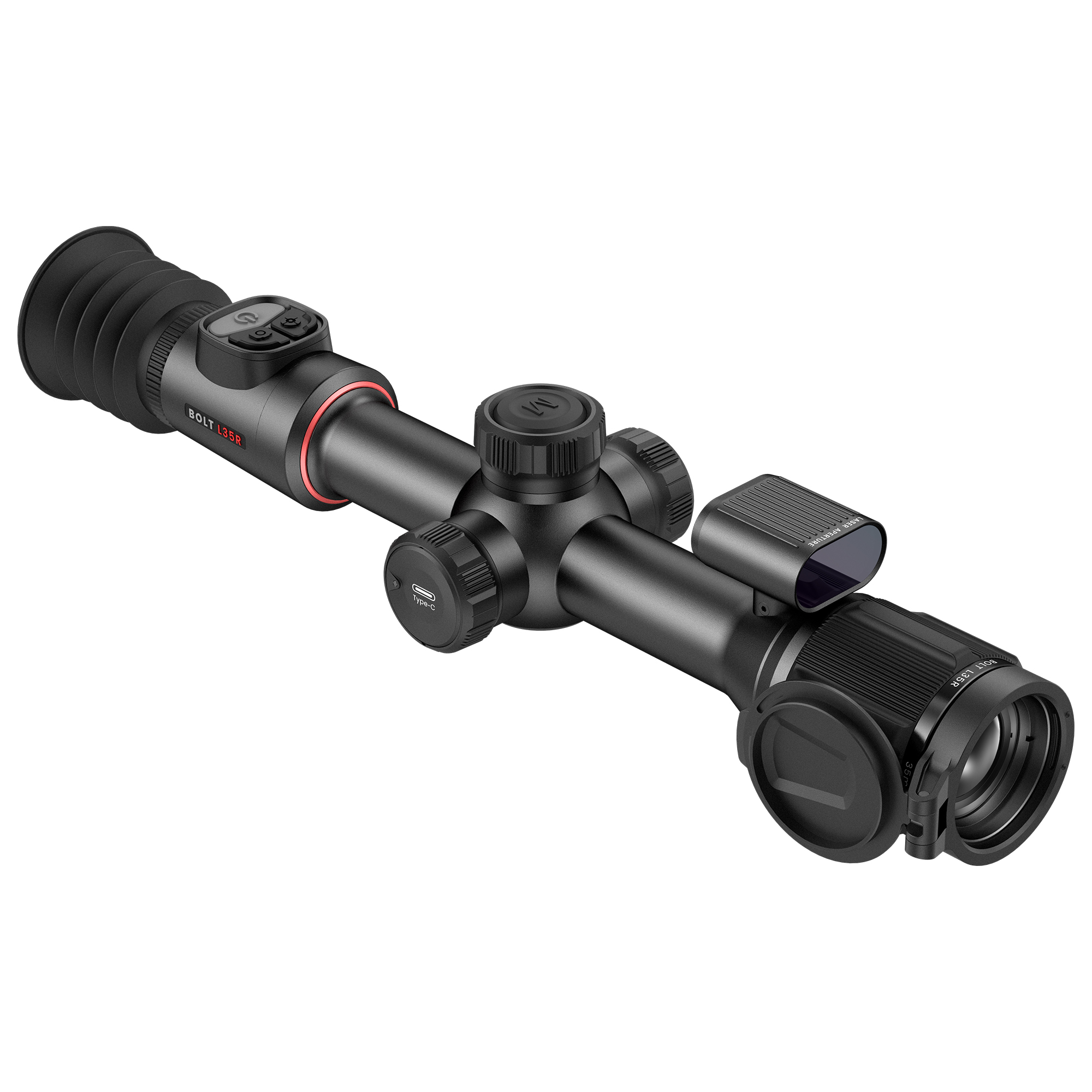

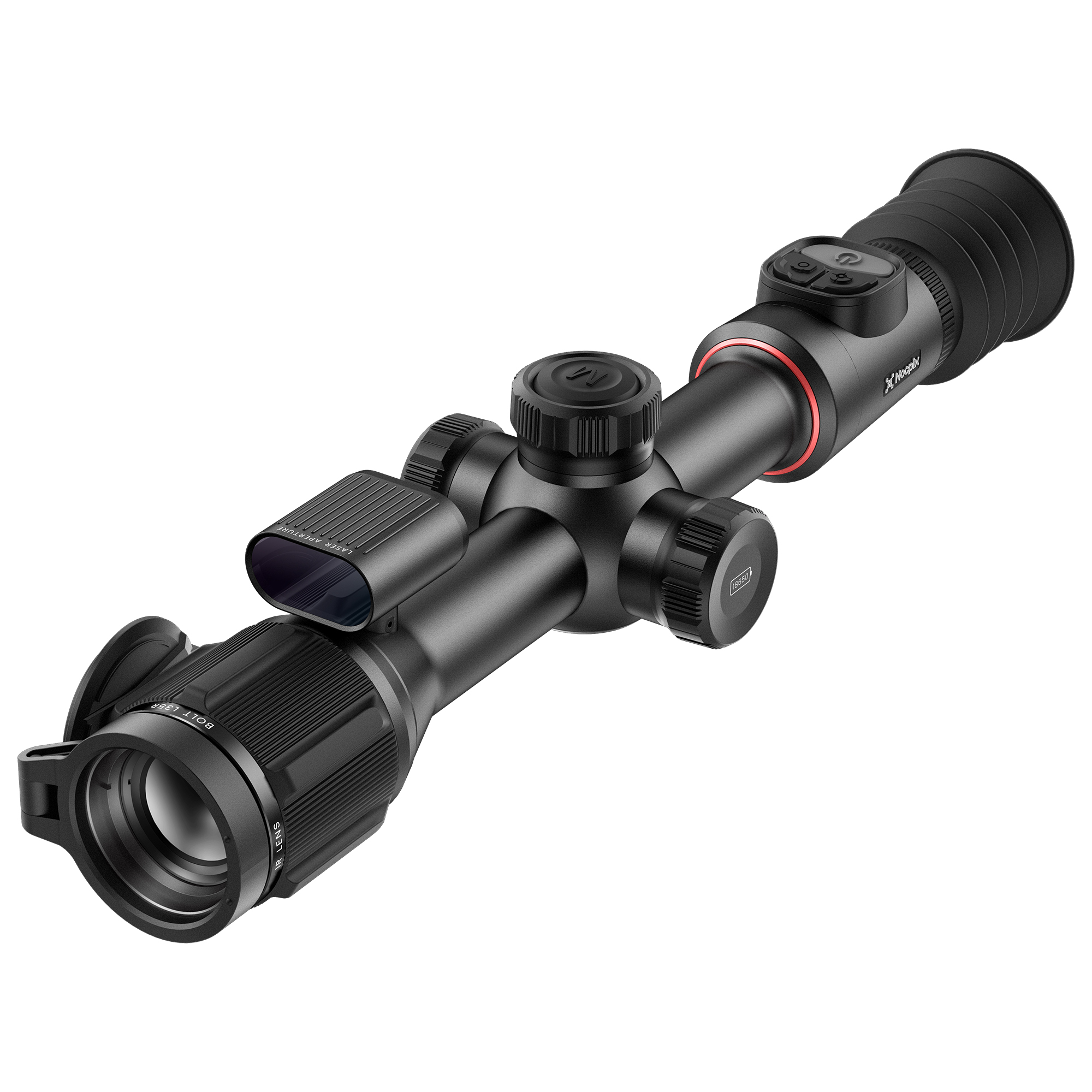

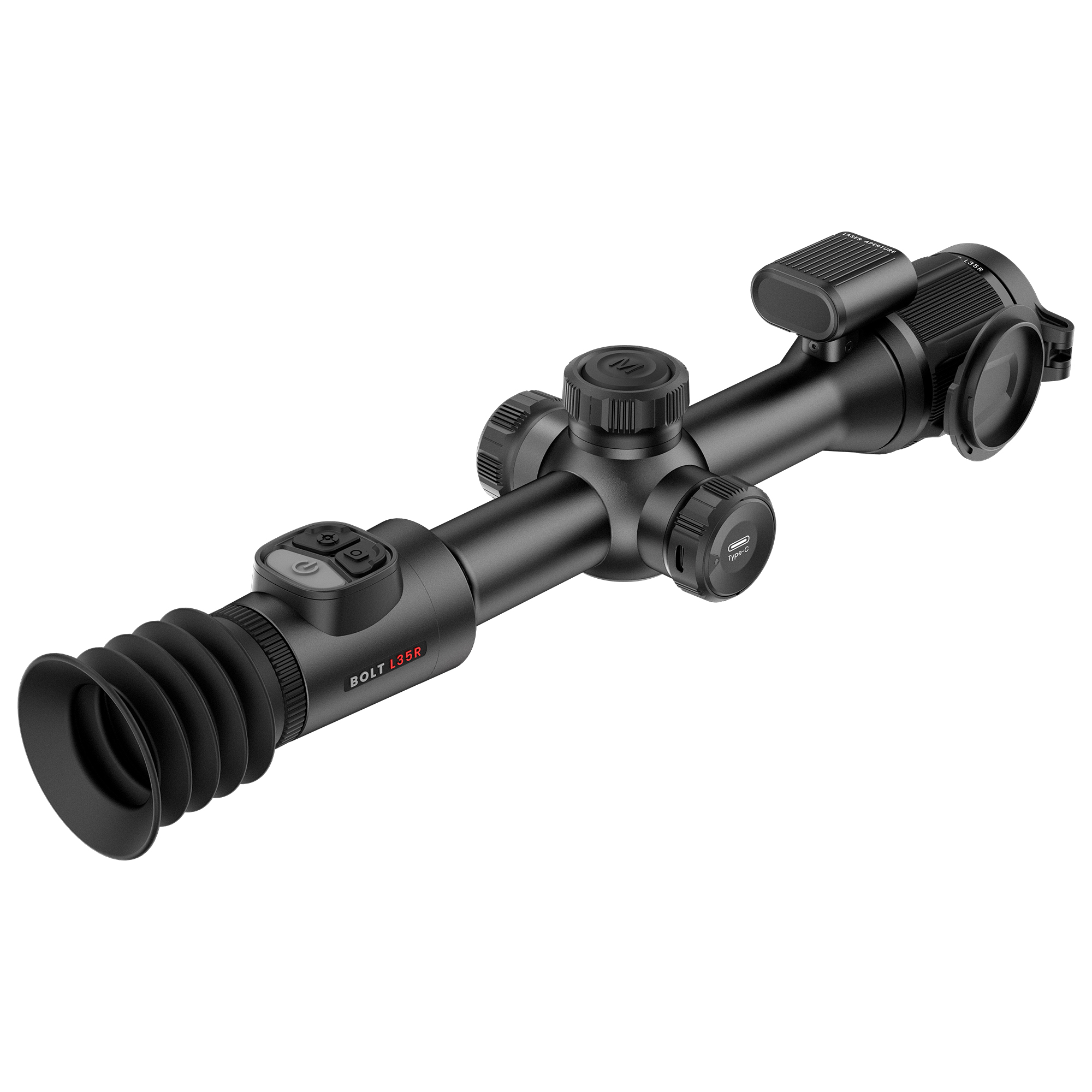

NocPix Bolt L35R Thermal Imaging LRF Rifle Scope with Ballistics Calculator - 35mm, 384x288, ≤20mK, 12μm
A defining capability of the Bolt L35R is its built-in ballistics calculator paired with an integrated laser rangefinder and thermal sensor, enabling it to process real-time distance data alongside thermal imaging and adjust calculations accordingly. - George
The NocPix Bolt L35R Thermal Imaging LRF Rifle Scope is a cutting-edge solution for serious hunters and shooters, combining advanced thermal imaging with precision technology for day and night use in all weather conditions. Designed around a highly sensitive 384x288, 12μm thermal sensor with a NETD of ≤20mK, this scope delivers ultra-clear thermal imagery, even in rain, snow, fog, or through obstacles like branches and foliage.
Featuring a fast 50Hz refresh rate and a bright 35mm f/1.0 objective lens, the Bolt L35R offers smooth imaging with an effective detection range of up to 1800 metres. Optical clarity is matched with a 3.5–14x magnification range, displayed on a high-resolution 1024x768 AMOLED screen for exceptional target recognition.
This model integrates a built-in laser rangefinder with a distance capability of up to 1200 metres, paired with a powerful ballistics calculator, enabling accurate real-time shot placement. For added functionality, it includes a Recoil Activated Video (RAV) feature, internal 64GB memory for photos and video recording, and an integrated Wi-Fi module for live streaming and app connectivity.
The scope supports a dual power system, combining a built-in 5000mAh battery with a replaceable 18650 cell, giving up to 12 hours of operation. Other features such as Ultra Clear mode, pixel defect correction, and Reality+ AI enhancements ensure consistent performance in demanding scenarios.
Rugged and waterproof to IP67 standard, and capable of operating between –20°C and +50°C, the Bolt L35R is built for extreme environments. Compact and weighing just 880g, it comes complete with heated zeroing target, 18650 batteries and charger, carry bag, and all essential accessories for immediate deployment in the field.
- Type Riflescope
- Series BOLT
- Sensor Resolution 384 × 288
- Pixel Size 12 μm
- Thermal Sensitivity (NETD) ≤ 20 mK
- Frame Rate 50 Hz

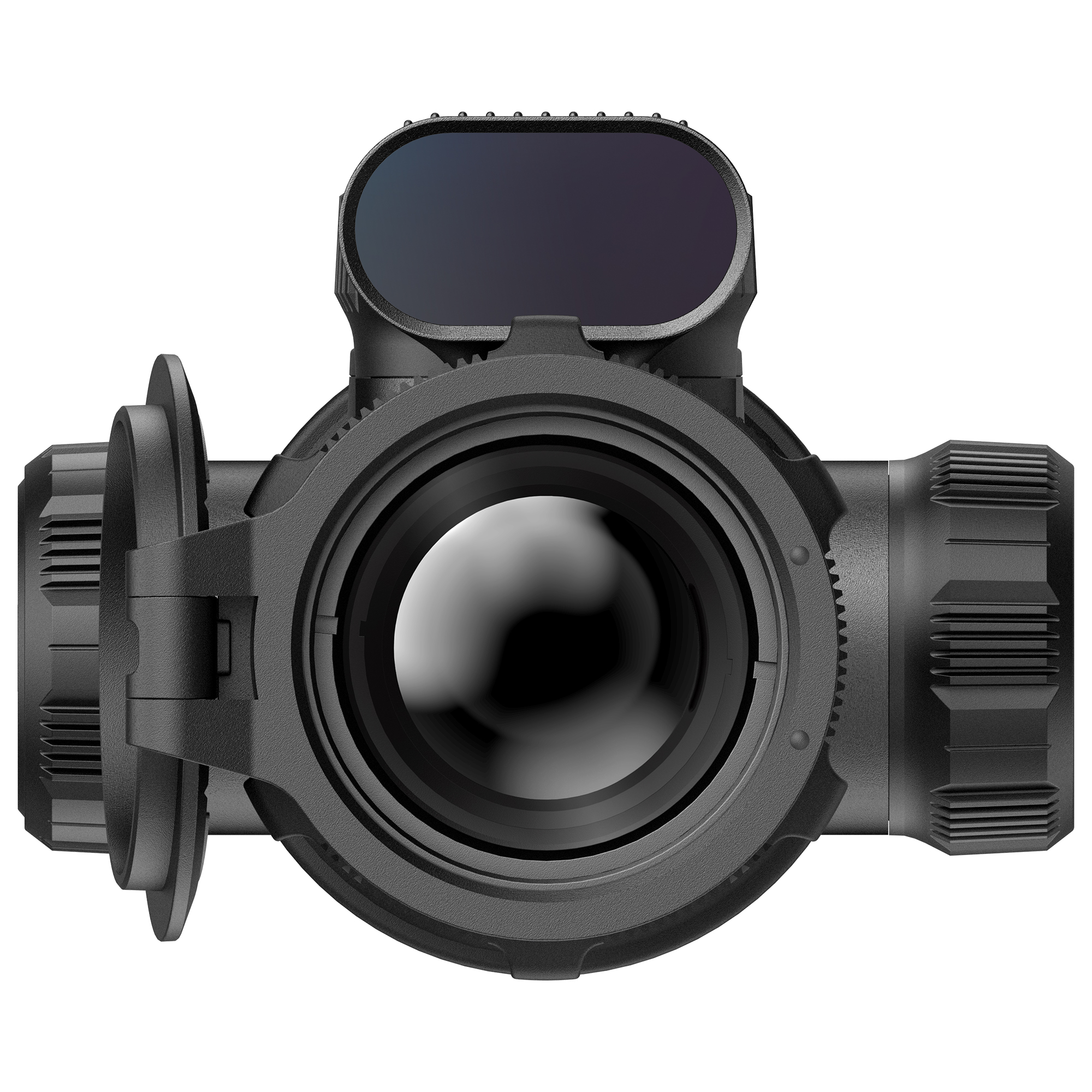

- Objective Lens 35 mm f/1.0
- Field of View (H × V) 7.5° × 5.7°
- Magnification 3.5× – 14× (optical/digital)
- Detection Range 1800 m
- Laser Rangefinder Distance 1200 m
- Display Type AMOLED
- Display Resolution 1024 × 768
- Display Shape Rectangle
- Eye Relief 50 mm
- Exit Pupil 10 mm
- Diopter Adjustment –5 D to +5 D
- Reality+ AI Supported
- Ingress Protection IP67
- Operating Temperature –20 °C to +50 °C
- Operating Time Up to 12 hours
- Power Supply Built-in 5000 mAh battery + replaceable 18650 cell
- Replaceable Battery Yes
- Built-in Battery Yes
- Internal Storage 64 GB
- Microphone Integrated
- Dimensions (L × W × H) 376 × 92 × 75 mm
- Weight (with battery) 880 g
- Built-in Laser Rangefinder (LRF) for precise distance measurement up to 1200m
- Integrated Ballistics Calculator for real-time shooting adjustments
- Recoil Activated Video (RAV) function to automatically record shots
- Photographing and Video Recording with 64GB of internal storage
- Integrated Wi-Fi Module for live streaming and connection to a companion app
- Reality+ AI Enhancements for improved image processing and target identification
- Ultra Clear Mode for enhanced visibility in low-contrast environments
- Pixel Defect Correction for clean, uninterrupted viewing
- Dual Power Supply System, combining built-in and replaceable battery options
- Long Battery Life, offering up to 12 hours of continuous use
- Heated Target for Zeroing included for fast and accurate setup
- IP67-Rated Waterproof and Dustproof Housing, built to perform in extreme conditions
- Operating Temperature Range from –20°C to +50°C for all-season reliability
- Compact, Rugged Design, ideal for field use and long hunting sessions
- Integrated Microphone to record audio alongside video footage
- User-Friendly Interface with intuitive controls and menu navigation
- Quick Start Guide and Accessories Included for easy setup out of the box.
- NocPix Bolt L35R Thermal Imaging LRF Rifle Scope with Ballistics Calculator - 35mm, 384x288, ≤20mK, 12μm
- Heated target for zeroing
- Portable bag
- 18650 Battery (x2)
- Data cable
- Lens cleaning cloth
- Quick start guide
- 18650 Battery charger
What distinguishes the Bolt L35R system?
It integrates thermal imaging, a laser rangefinder, and a ballistics calculator.
How does the ballistics calculator operate?
It uses range data to support ballistic computation within the system.
What thermal sensor resolution is used?
A 384 × 288 resolution thermal sensor.
Why is the integrated LRF important?
It provides immediate distance data without external devices.
What is the role of the 35 mm lens?
It supports mid-range detection and observation.
Is data processing handled in real time?
Yes, thermal imaging, ranging, and calculations operate simultaneously.
Is the unit designed for harsh environments?
Yes, it is built to withstand demanding field conditions.
Does the system reduce equipment complexity?
Yes, multiple functions are combined into a single platform.
What is the intended user profile?
Users requiring an integrated thermal and ranging system.
- NocPix 3 year warranty for main body, 2 year warranty for battery and 10 years for detector.
