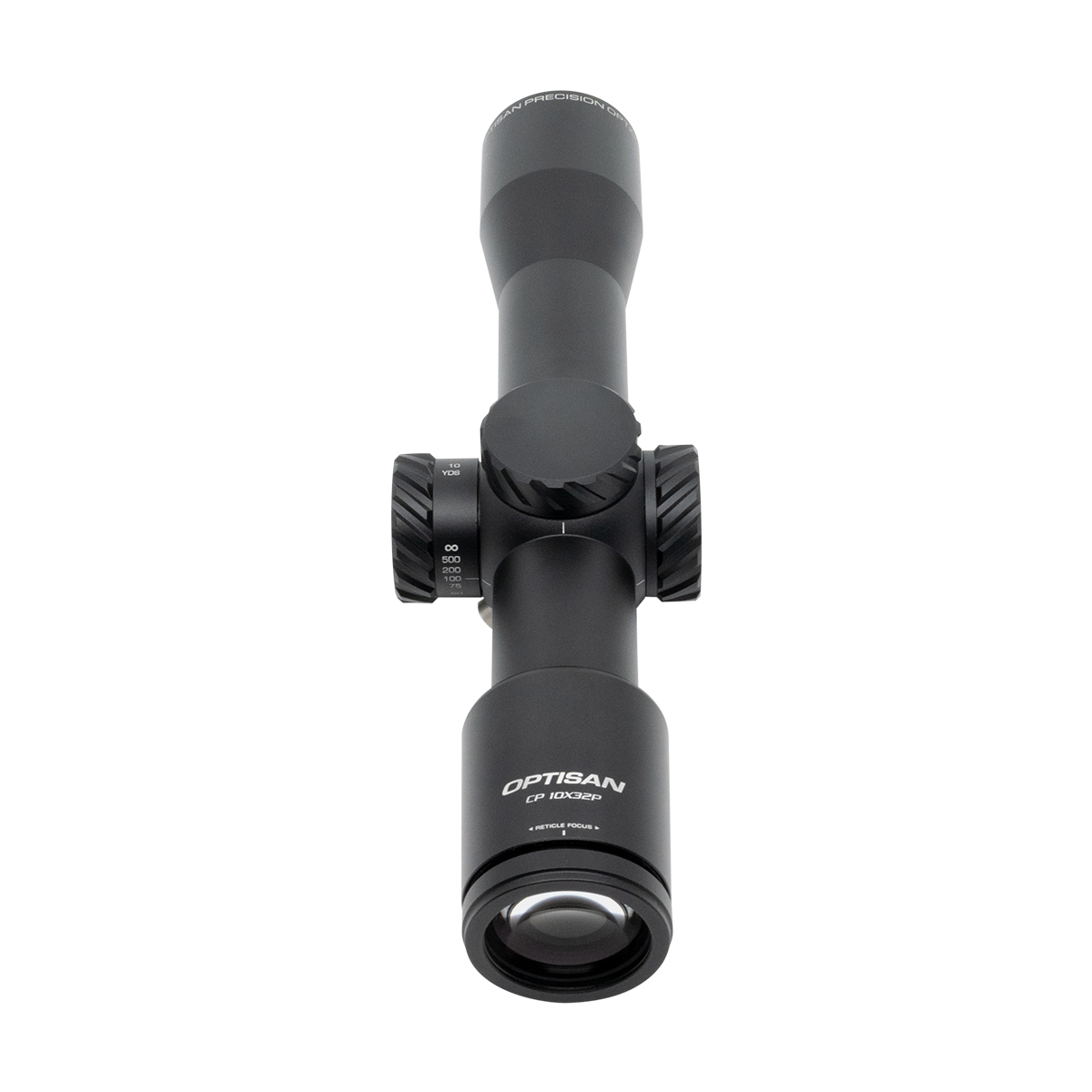

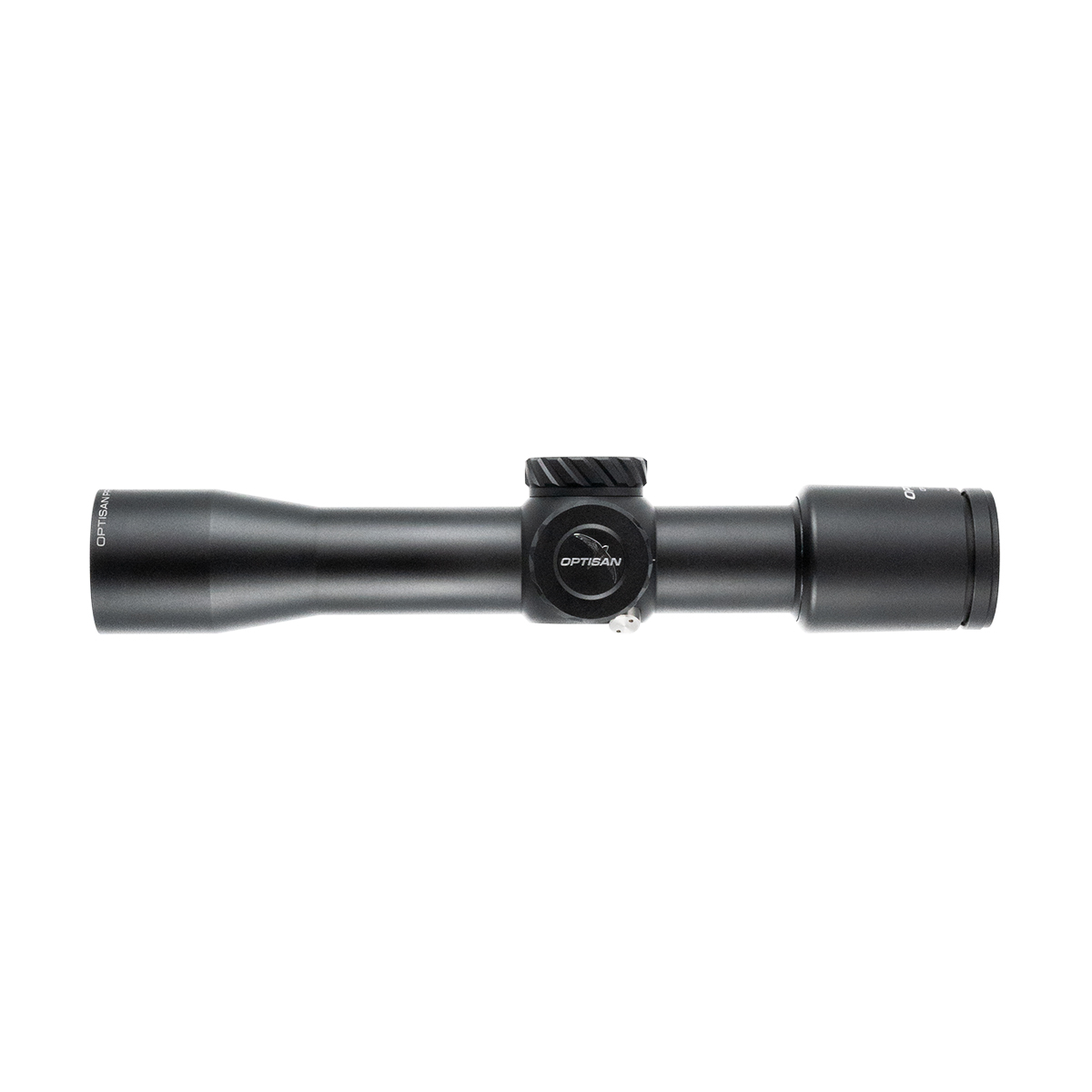

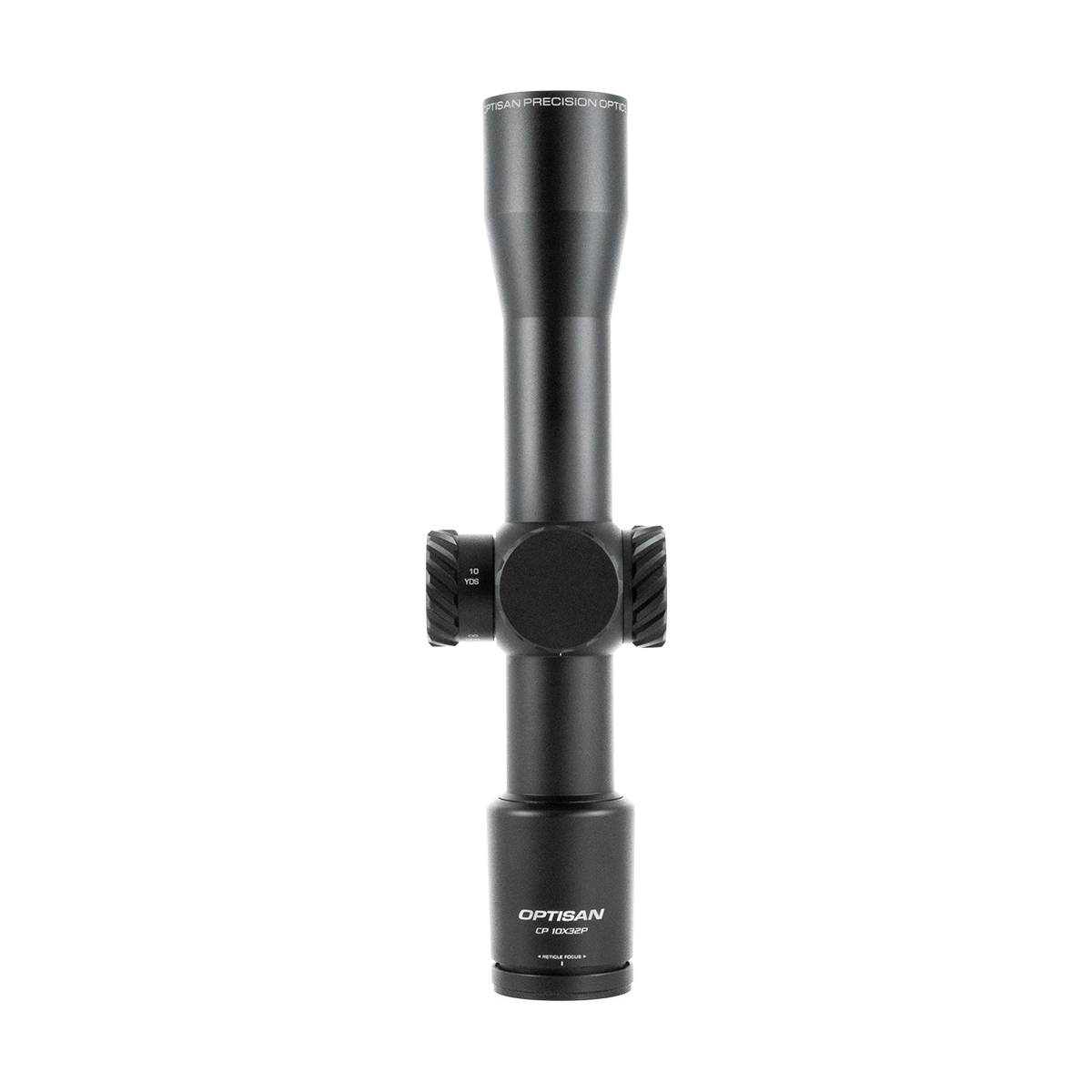

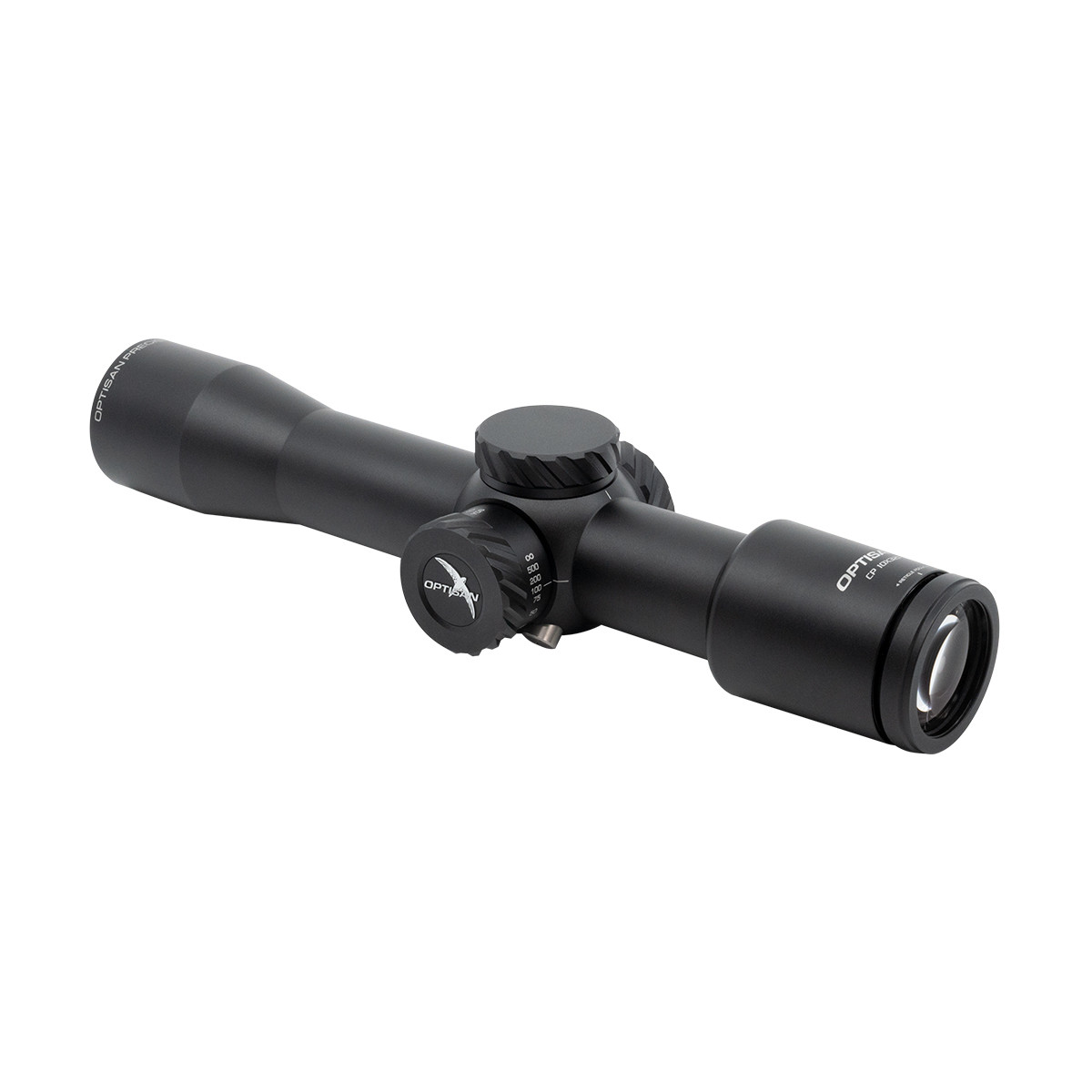

Optisan Optics CP Compact 10x32 SFP MIL Non-Illuminated MH10 30mm Rifle Scope
The Optisan Optics CP Compact 10x32 SFP MIL Non-Illuminated MH10 30mm Rifle Scope delivers precision performance in a sleek, rugged package that serious shooters will appreciate. Designed for dependable accuracy at medium to long ranges, its 10x magnification provides a crisp, detailed view of your target while the 30mm tube ensures exceptional light transmission and optical clarity. Built with a Second Focal Plane (SFP) MIL reticle, this scope gives you reliable holdovers and intuitive adjustments without complexity. With a robust, compact design and dependable performance in varied field conditions, the CP Compact MH10 is perfect for hunters, tactical shooters, and any marksman seeking a high-quality optic that won’t weigh them down.
-Nathan (Technical Advisor)

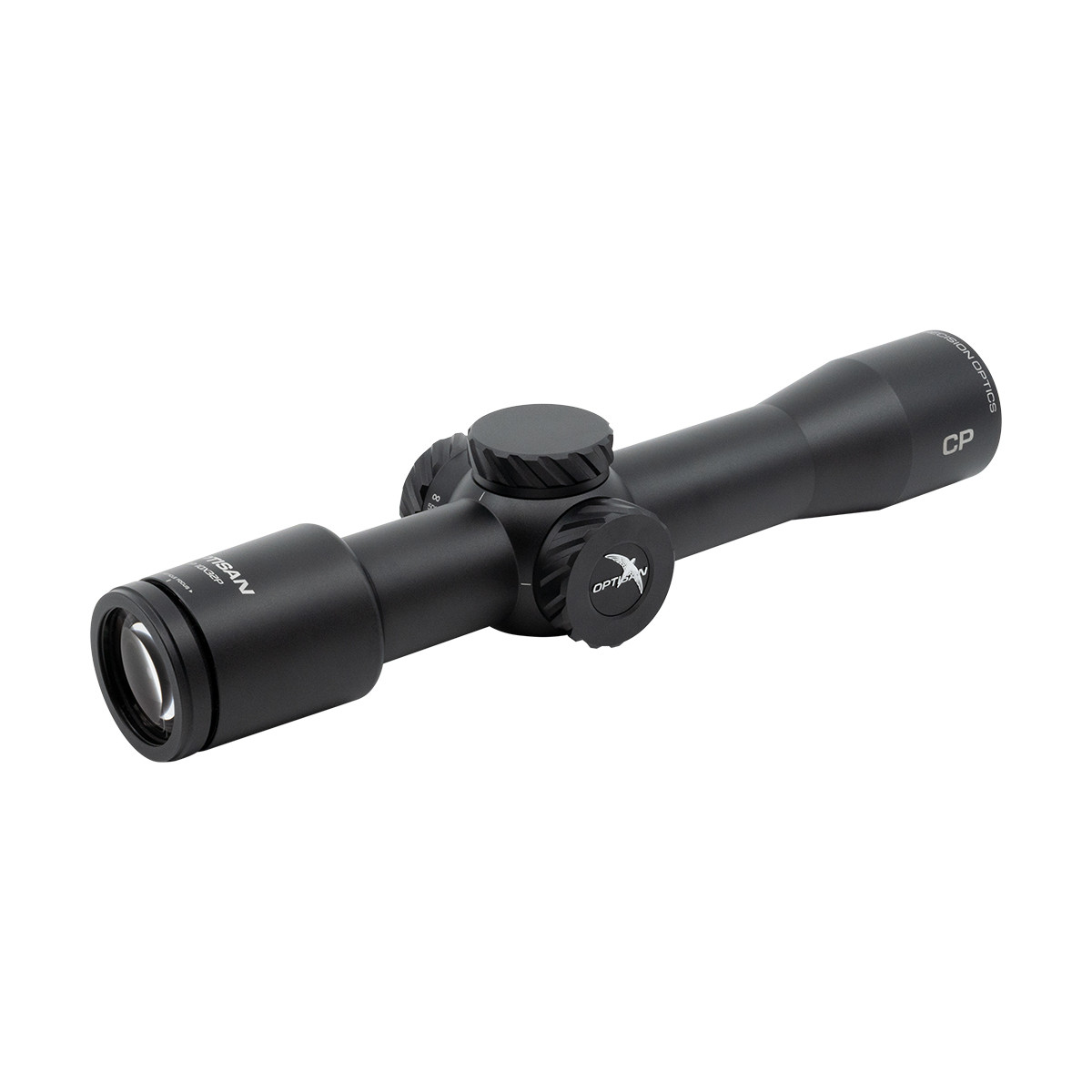

Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Introducing the (NEW FOR 2020!) Optisan CP Compact 10x32 MIL MH10 Rifle Scope.
Compact and lightweight - well matched to the latest generation of compact rifles.
Optisan has developed the CP series to have minimal parallax error. This means you experience a minimal shift in the point of impact when shooting targets at varying distances, without adjusting your focus. This is especially useful when shooting HFT or hunting in the field when adjusting the parallax before each shot is not possible.
Optisan CP scopes have a standard length of eye relief allowing a suitable distance between your eye and objective, whilst shooting. This means that you can use this scope on guns with recoil such as Spring guns, Rimfire and Centrefire.
The 32mm objective and short overall length brings the weight towards the shooter; improving the balance and handling of the gun.
- Magnification (High/Low) 10x
- Objective Diameter 32mm
- Outer Diameter Objective 40mm
- Field of View (FOV) (min/max) 10.80 ft/100 yds
- Eye Relief 3.24 inches
- Exit Pupil (Max/Min) 3.2 mm
- Diopter Range +/- 2.0 dpt
- Parallax Adjustment 10 yds to infinity (100 yds parallax-free)
- Coating Fully Multi-coated
- Tube Construction One-piece tube, aircraft aluminum
- Elevation Adjustment (Value per Click) 0.1 mrad
- Windage Adjustment (Value per Click) 0.1 mrad
- Turret Style (Elevation) Low-profile, Zero-resettable
- Turret Style (Windage) Low-profile, Zero-resettable
- Travel per Rotation 10 mrad
- Elevation Adjustment Range ≥ 20 mrad
- Windage Adjustment Range ≥ 20 mrad
- Eyepiece Diameter 1.55 inches / 39.5 mm
- Eyepiece Length 1.65 inches / 42 mm
- Mounting Length (Rear) 55.50 mm
- Mounting Length (Front) 37.50 mm
- Tube Diameter 30 mm
- Length 9.52 inches / 242 mm
- Weight 478 g / 16.86 oz
- Surface Finish Matte Black
- Functional Temperature -20°C to 50°C
- Storage Temperature -20°C to 50°C
- Submersion Tightness JIS 7
- Reticle SFP MH10X
- Calibrated Ranging Power 10x
- Focal Plane Second
- Illumination Non-illuminated
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- Compact design
Only 25.4 cm length and less than 0.48 kg the CP is the perfect partner for compact and lightweight rifles.
- Minimized Parallax error
By using a 32mm objective lens the CP is able to minimise the effects of Parallax error. This means you have a scope that experiences very small shifts of impact as you change your head position or distance to target.
This means that you can leave the parallax fixed and shoot targets at different distances whilst experiencing minimal shift of impact, this is very helpful in many competitive and hunting shooting situations.
Parallax adjustment range is from 10 yards up to 500 yards to infinity,
- Springer rated
Field-tested by Champion shooters for more than for one year on spring air rifles it is a robust riflescope that is capable of use larger caliber rifles including centerfire
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
MH10 (Non-Illuminated)
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
- 2.5'' Sunshade.
- ABS Flip-Up Covers.
-
What does “10x32” mean on this rifle scope?
“10x” refers to the fixed magnification power, making targets appear ten times closer, and “32” refers to the diameter of the objective lens in millimeters, balancing brightness and image quality. -
What is a Second Focal Plane (SFP) reticle?
An SFP reticle stays the same size as you zoom in and out, meaning the reticle subtensions are calibrated for accurate holdovers only at one magnification (usually the highest power). -
What does “MIL” reticle mean?
A MIL reticle uses milliradian spacing that makes it easier to estimate range, adjust for wind or drop, and communicate corrections with other shooters. -
Is the reticle illuminated?
No — the MH10 reticle on this model is non-illuminated, designed for clarity and precision in conditions where illumination isn’t necessary. -
Will this scope fit my rifle?
The 30mm tube diameter is a common standard, compatible with most 30mm scope mounts and rings. -
Is this scope suitable for hunting?
Yes — its compact size, reliable optics, and 10x magnification make it excellent for hunting medium to long-range game. -
How durable is this rifle scope?
The Optisan CP series is built with rugged materials and precision engineering to withstand field use and recoil from most calibers. -
Does this scope perform well in low light?
With a 32mm objective and quality optics, it delivers bright images at dawn and dusk, though illumination is not included on the reticle. -
Can I adjust windage and elevation easily?
Yes — the scope features tactile, repeatable turrets for precise elevation and windage adjustments. -
Who is this scope best suited for?
Shooters looking for a compact, reliable optic with solid magnification and a MIL reticle — including hunters, tactical shooters, and target shooters — will find this scope a versatile, high-value choice.
Optisan CP Compact 10x32 SFP MIL Non-Illuminated MH10 Rifle Scope
Optisan Lifetime Warranty
