Vector Optics X-ACCU 34mm Medium Profile Picatinny Rings
The Vector Optics X-ACCU 34mm Medium Profile Picatinny Rings are a heavy-duty, precision CNC-machined mount designed for 34mm tube scopes on Picatinny rails, offering a stable, no-flex platform for serious rifle setups. They’re made from 6061-T6 aluminium alloy and use a multi-screw clamp system (up to six screws per ring) to keep the optic locked in place under recoil.
-Nathan (Technical Advisor)
The Vector Optics 34mm Medium Profile Picatinny Rings are built for shooters who demand strength, stability and repeatable accuracy from their optic mounting solution. Designed as part of the X-ACCU range, these rings provide a secure and dependable interface between your 34mm scope and any standard 21mm Picatinny rail.
Manufactured from high-strength 6063-T6 aluminium, these heavy-duty rings are engineered for use on real firearms, delivering excellent rigidity while keeping overall weight to a sensible minimum. The six-bolt clamping system per ring ensures even pressure distribution and rock-solid scope retention, even under heavy recoil.
With a 35mm (1.4") centre height, these medium-profile rings offer ideal clearance for larger objective lenses while maintaining a comfortable shooting position. Finished in a black matte coating, they provide a clean, professional look that complements any modern rifle setup.

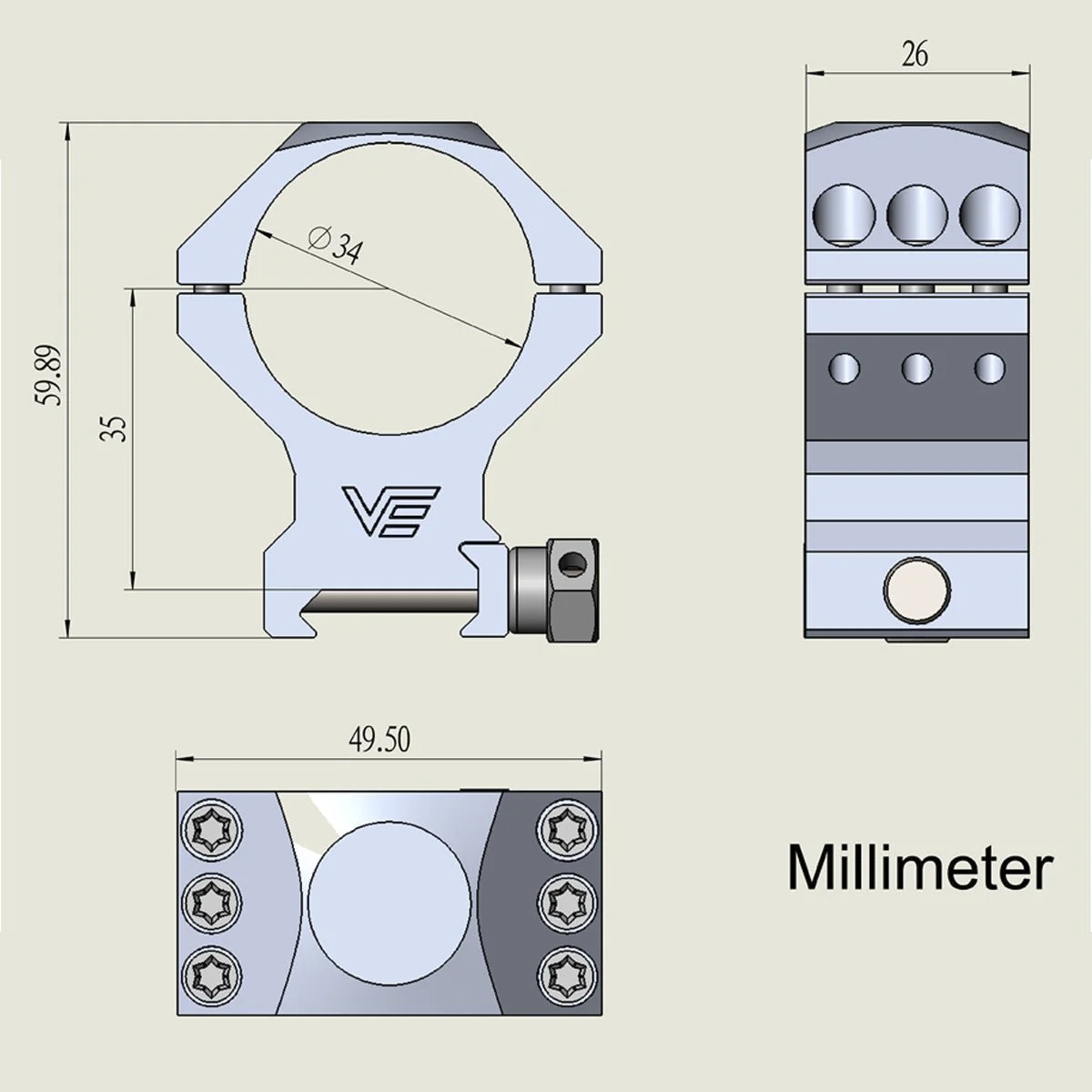

Height = 35mm
- Tube Diameter 34mm
- Profile Height Medium Profile
- Centre Height 35mm / 1.4" (bottom of base to ring centre)
- Ring Width 26mm / 1"
- Mount Type 21mm Picatinny
- Fastening System Six bolts per ring
- Material 6063-T6 aluminium
- Finish Black matte
- Weight 165g / 5.8oz (per pair)
- Maximum Recommended Torque 25 in/lb
- Fitting Tool Hex key (included)
-
34mm scope tube diameter
-
Medium / high profile design for enhanced clearance
-
Six bolts per ring for maximum clamping strength
-
Heavy-duty construction suitable for real firearms
-
Precision-machined from 6063-T6 aluminium
-
21mm Picatinny rail compatible
-
35mm / 1.4" centre height (base to ring centre)
-
26mm / 1" ring width
-
Black matte finish
-
Lightweight yet robust – 165g (5.8oz) per pair
-
Suggested maximum torque: 25 in/lb
-
Supplied with hex key for fitting
- Vector Optics 34mm Medium Profile Picatinny Rings
- Hex key
1. What tube size does it fit?
It fits 34mm scope tubes only.
2. What rail system does it mount to?
It mounts to standard 21mm Picatinny rails.
3. What is the height of the medium version?
About 35mm base-to-centre (≈1.4"), depending on model variant.
4. What is it made from?
6061-T6 aluminium alloy, CNC-machined for strength and consistency.
5. How secure is the mounting system?
Each ring uses multiple screws (often six) plus cross-bolt clamping for strong recoil resistance.
6. Is it suitable for real firearms?
Yes, it’s designed for real rifle recoil, including long-range and high-calibre setups.
7. Is it quick-detach (QD)?
No, this is a fixed torque-down mount, not a QD system.
8. Why choose medium height for 34mm scopes?
It gives a good balance between barrel clearance and cheek weld comfort, especially with larger objective lenses.
9. Does it hold zero well?
Yes—when installed correctly, it’s known for solid repeatability and stability.
10. What’s the downside?
It’s heavier and more rigid than basic rings, and not ideal if you want a lightweight or quick-swap setup.
