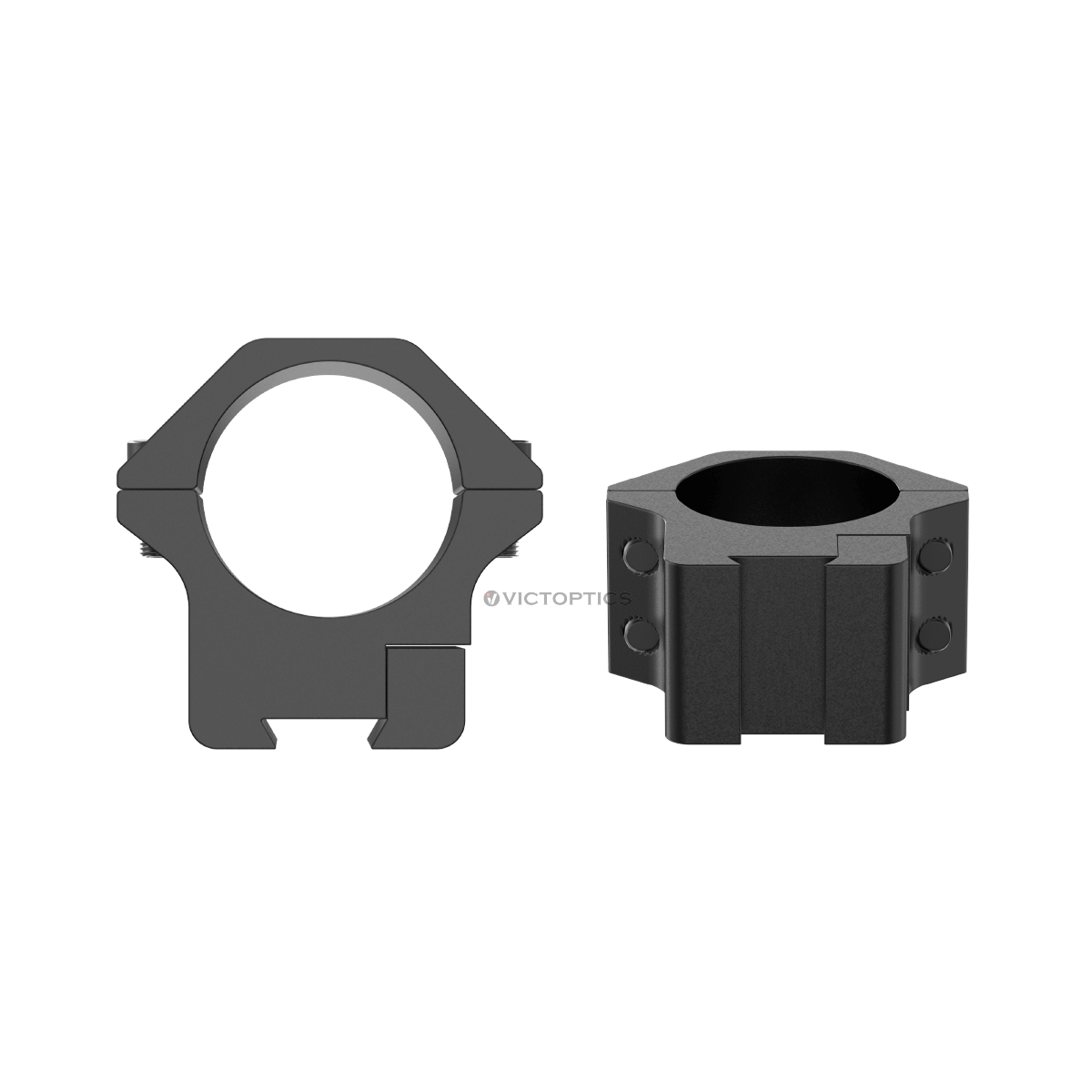

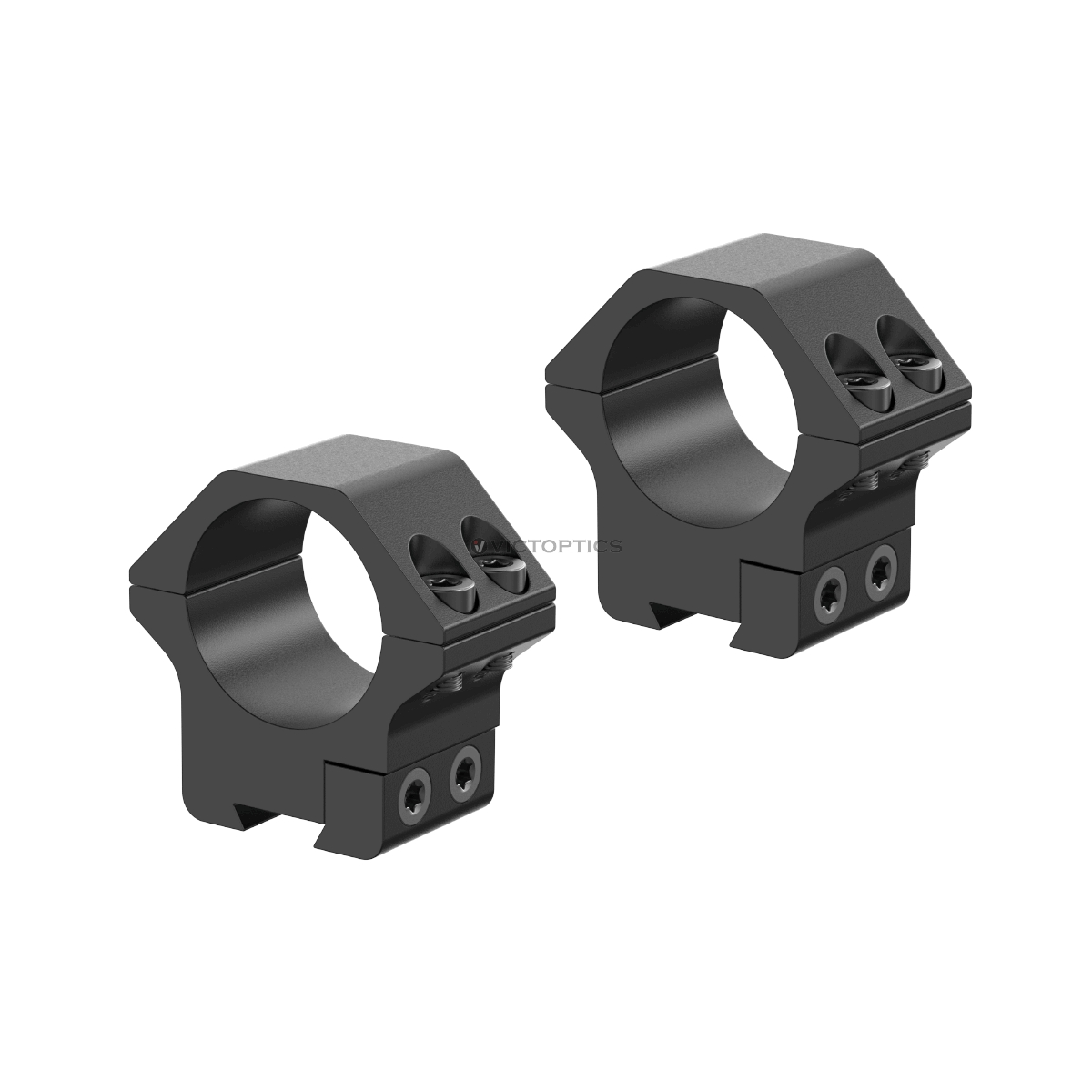

Vector Victoptics ACD Screw Mount 25.4mm (1") 9-11mm Dovetail Mounting Rings - Low
The Vector Victoptics ACD Screw Mount 25.4mm (1") 9–11mm Dovetail Mounting Rings – Low is a straightforward, solid set of scope rings made for rifles with an 11mm (9–11mm compatible) dovetail rail, which is common on air rifles and rimfires. It’s CNC-machined from 6063-T6 aluminium with a four-screw clamp per ring, so it grips tightly and stays stable under recoil without shifting your zero. The low profile (about 22.5mm centre height) keeps your scope sitting close to the barrel, giving you a more natural cheek weld and a clean, compact setup.
-Nathan (Technical Advisor)
The Vector Victoptics ACD Screw Mount Rings are designed for real firearm applications, offering a rock-solid foundation for your optic setup. Crafted from 6063-T6 aluminum alloy, these rings are CNC-machined for precision, ensuring maximum durability and stability. With four screws per ring, they provide a secure grip on your scope, minimizing movement under recoil.
Quick & Easy Installation
Designed for 9-11mm dovetail rail mounts, these rings allow for fast, hassle-free attachment. Whether you're setting up a new optic or making adjustments, the streamlined design ensures an efficient installation process with the included T10 Torx wrench.
Low-Profile Design for a Sleek Setup
With a low-profile height of 22.5mm (0.9") from base to ring center, these rings keep your scope close to the bore, offering an optimal line of sight while maintaining a compact, tactical profile.

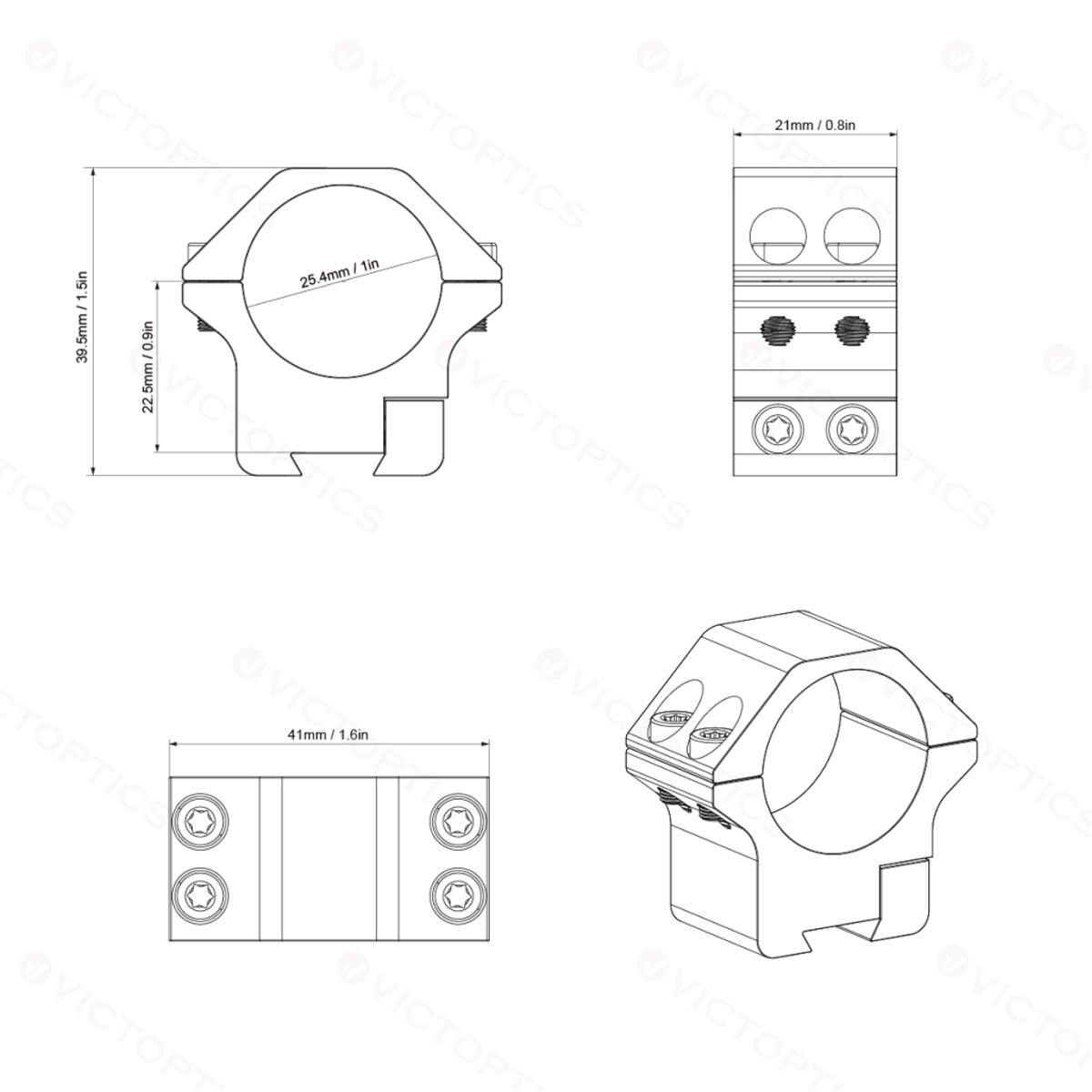

Height = 22.5mm
- Ring Diameter: 25.4mm (1")
- Ring Length: 21mm (0.8")
- Height (Base to Ring Center): 22.5mm (0.9")
- Material: 6063-T6 Aluminum Alloy
- Finish: Black Matte
- Weight: 80g (2.8oz)
- Mounting Compatibility: Fits 9-11mm Dovetail / 3/8" Rail Mounts
- Secure Fit: 4 screws per ring for enhanced stability
- Includes: 1x T10 Torx Wrench
- Vector Victoptics ACD Screw Mount 25.4mm (1") 9-11mm Dovetail Mounting Rings - Low
- 1x T10 Torx Wrench
1. What tube size does it fit?
It fits 1 inch / 25.4mm scope tubes.
2. What rail does it mount to?
It’s designed for 9–11mm dovetail rails (3/8" style), typical on air rifles and some rimfire guns.
3. What does “low profile” mean here?
It has a 22.5mm base-to-centre height, keeping the scope very close to the bore for a tighter setup.
4. What material is it made from?
It’s made from 6063-T6 aluminium alloy, CNC-machined for strength and consistency.
5. How many screws hold the scope?
Each ring uses four screws, which helps prevent scope slip under recoil.
6. Is it suitable for real firearms?
Yes, but it’s most commonly used on air rifles and low-recoil platforms due to the dovetail system.
7. Does it hold zero well?
Yes, when properly tightened, it’s designed to stay stable and resist movement.
8. Why choose dovetail instead of Picatinny?
Dovetail setups are lighter and more common on air rifles, even though Picatinny is more modular.
9. Why pick low rings instead of medium or high?
Low rings give the best cheek weld and stability, as long as your scope clears the barrel and magazine.
10. What’s the main downside?
Limited compatibility—you can’t mount it on Picatinny/Weaver rails without an adapter.
- Vector VictOptics 1 year warranty
