Vector Victoptics ACD Screw Mount 30mm 9-11mm Dovetail Mounting Rings - High

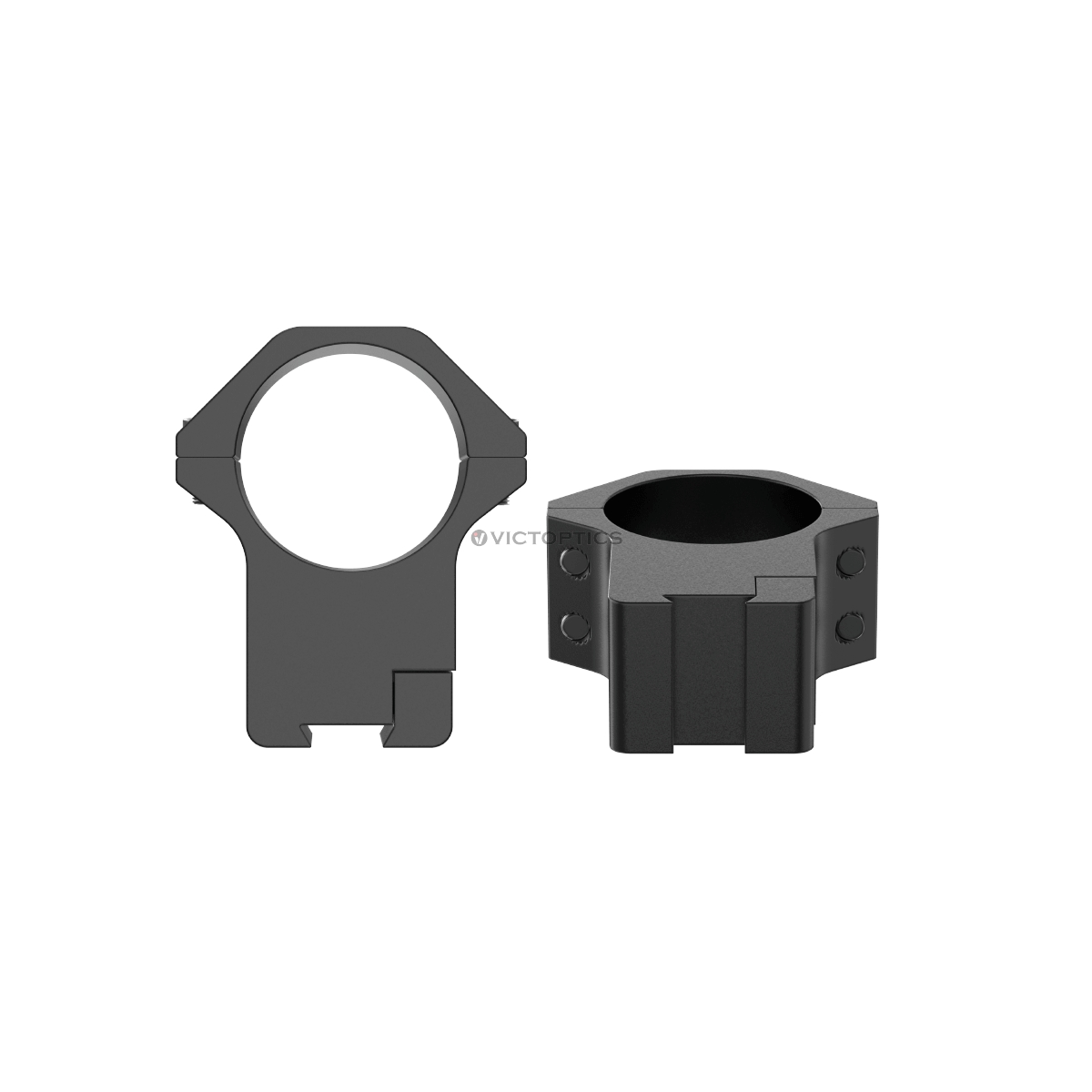

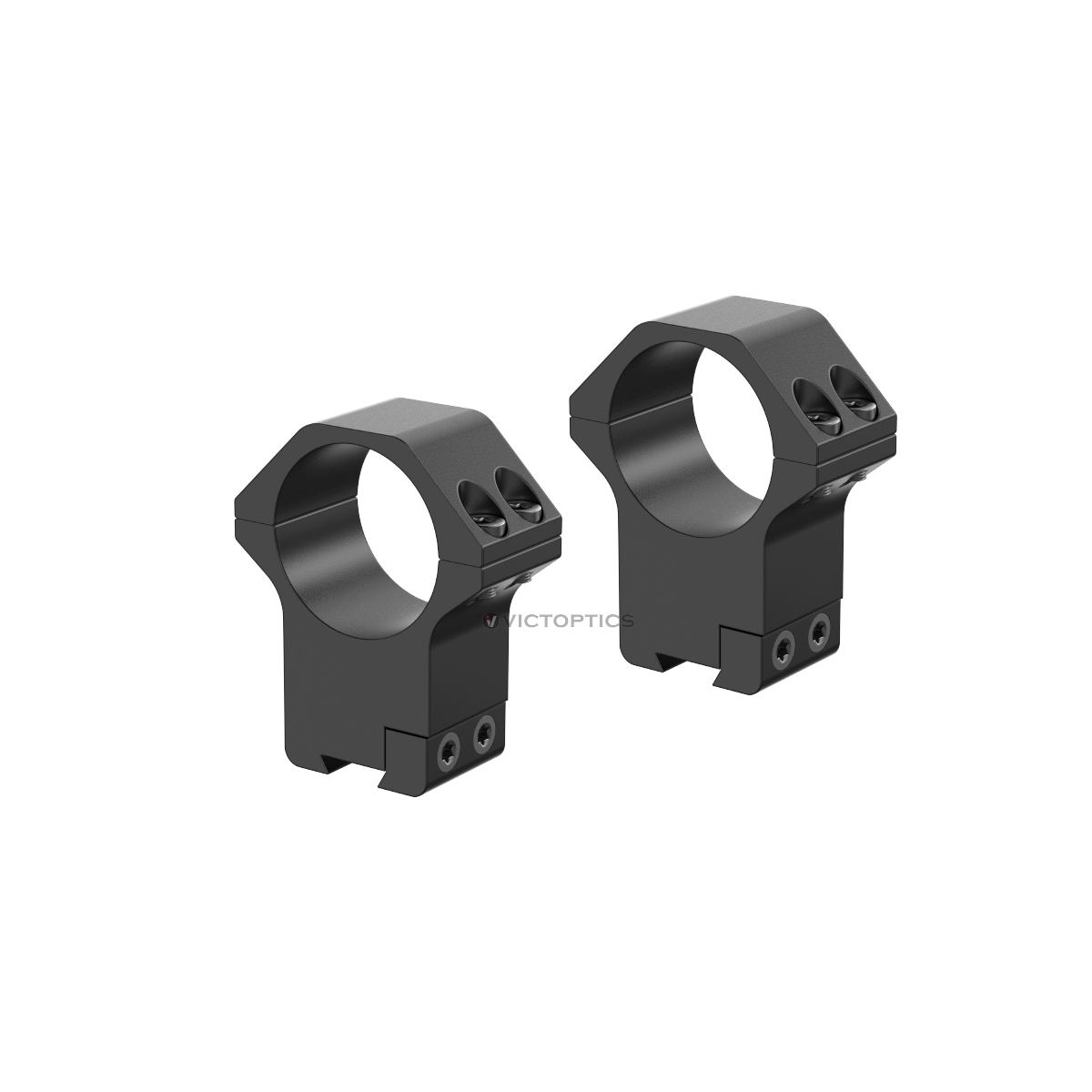

The Vector Victoptics ACD Screw Mount 30mm 9–11mm Dovetail Mounting Rings – High is the tallest version of this 30mm dovetail ring series, made for setups where you need maximum clearance for big objective scopes or awkward rifle geometry. It’s CNC-machined from 6063-T6 aluminium with a four-screw clamp per ring, designed for 11mm (9–11mm) dovetail rails, giving a solid hold and decent recoil stability when installed properly.
-Nathan (Technical Advisor)
The Vector Victoptics ACD Screw Mount 30mm Dovetail Mounting Rings are built for shooters who demand reliability and superior scope positioning. Designed for real firearms, these high-profile mounting rings provide the elevated clearance needed for larger objective lenses while maintaining a secure and stable hold on your optics.

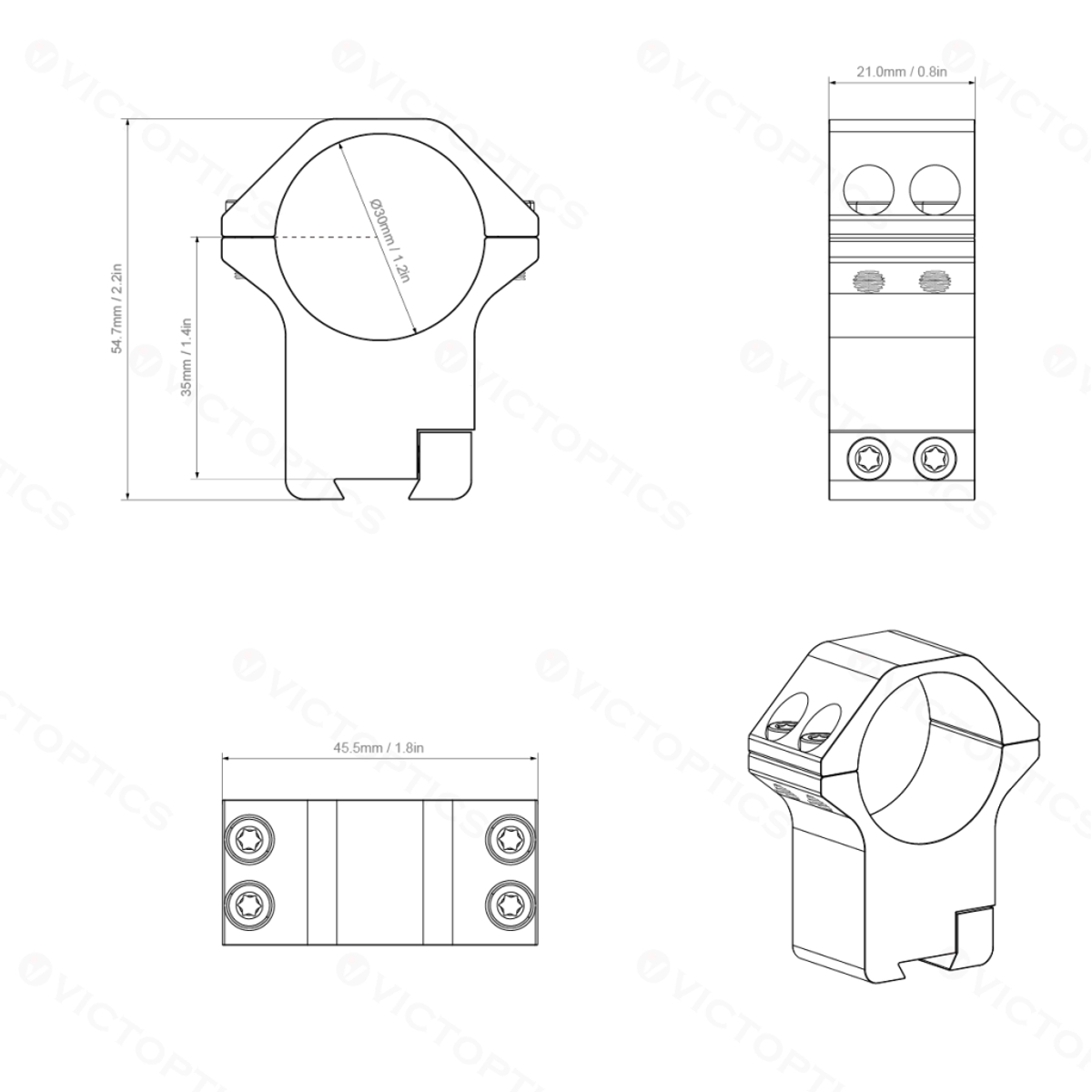

Height = 35mm
- Ring Diameter: 30mm (1.2in)
- Ring Length: 21mm (0.8in)
- Height (Base to Center): 35mm (1.4in)
- Material: 6063-T6 aluminum alloy
- Finish: Black matte
- Weight: 114g (4.0oz)
- Rail Compatibility: Fits 11mm dovetail (3/8”) rail mounts
- Includes: 1x T10 torx wrench
CNC Machined for Accuracy & Durability - Manufactured from 6063-T6 aluminum alloy, these rings are precision CNC-made to ensure a rock-solid hold. The high-quality construction offers exceptional strength and longevity, making them ideal for real firearm applications.
High-Profile Design for Extra Clearance - With a 35mm (1.4in) height from base to ring center, these high-profile rings allow for proper scope positioning, ensuring compatibility with larger optics and rifles requiring extra elevation.
Secure 4-Screw Locking System - Each ring features four torx screws for maximum grip and stability, ensuring your scope remains secure even under heavy recoil.
Easy and Quick Installation - Designed to fit 11mm dovetail (3/8") rail mounts, these rings allow for a hassle-free installation process using the included T10 torx wrench.
SCACD-22 Screw-in Anti Cantilever Device Compatible - These rings are designed with an integrated connection point for the SCACD-22 Screw-in Anti Cantilever Device Mount (ACD mount not included), offering additional customization and stability.
- Vector Victoptics ACD Screw Mount 30mm 9-11mm Dovetail Mounting Rings
- 1x T10 torx wrench
1. What tube size does it fit?
It fits 30mm scope tubes.
2. What rail does it mount to?
It’s made for 9–11mm (3/8”) dovetail rails, typical on air rifles.
3. How high is the high version?
Around 35mm base-to-scope centre, the tallest in this series.
4. What material is it made from?
6063-T6 aluminium alloy, CNC-machined for strength and consistency.
5. Is it strong enough for recoil?
Yes for air rifles and low-to-moderate recoil platforms; dovetail is the limiting factor, not the ring strength.
6. Is it quick-detach?
No, it’s a fixed screw-down mount, not QD.
7. Why choose high rings?
For large objective scopes, bolt clearance, magazine clearance, or awkward rail height alignment.
8. What’s the downside?
Higher optic position = slightly worse cheek weld and less natural sight alignment.
9. Does it hold zero well?
Yes, if properly torqued and mounted correctly on a solid dovetail rail.
10. When should I avoid high rings?
If your scope already clears everything—going high just adds unnecessary height and makes shooting position less consistent.
- Vector VictOptics 1 year warranty
