Arken Optics EPL4 4-16x44 FFP VHR Illuminated 30mm Rifle Scope-MIL
“Designed with first focal plane reticle and a 44 mm objective lens, this optic offers a versatile 4-16× magnification range suitable for varied shooting scenarios. The illuminated reticle with MIL subtension markings supports low-light visibility while aiming, and the VHR reticle assists in range estimation and holdover. Turret adjustments are tactile, and the overall build balances clarity and practicality for field and range use.” – Soph.
The Arken Optics EPL4 4-16x44 FFP VHR MIL Illuminated Rifle Scope is Arkens lightweight hunter cersion of the EP series.The refined Hunter is built on a streamline 30mm main tube to reduce overall weight with our toolless, easy to operate capped windage turret that lets you set and forget.
Featuring a Japanese ELD (Extraordinary Low Dispersion) and VHR (Variable Hunter Reticle) combined provides astonishing optical performance making this a pleasure for users of all skill levels and disciplines.
- Magnification: 4-16x
- Objecitve Diameter: 44 mm
- Eye Relief: 3.6 inches
- Field of View: 30-7.5 ft @100 Yards
- Tube Size: 30 mm
- Turret Adjustment: 0.1 MRAD // 0.25MOA
- Reticle Position: First Focal Plane
- Reticle Details: VHR MIL // VHR MOA
- Zero Stop: AZS Zero Stop System
- Zero Reset: Yes
- Elevation Adjustment Range: 25 MRAD // 86 MOA
- Windage Adjustment Range: 12 MRAD // 41 MOA
- Elevation Adjustment Per Revolution: 8 MRAD // 20 MOA
- Windage Adjustment Per Revolution: 6 MRAD // 15 MOA
- Parallax: Side Parallax Adjustments, 10Yds-Infinity
- Illuminated Reticle: Yes, red
- Turret Rotation: Counter Clockwise (CCW)
- Length: 13.2 inches
- Weight: 24.11 oz

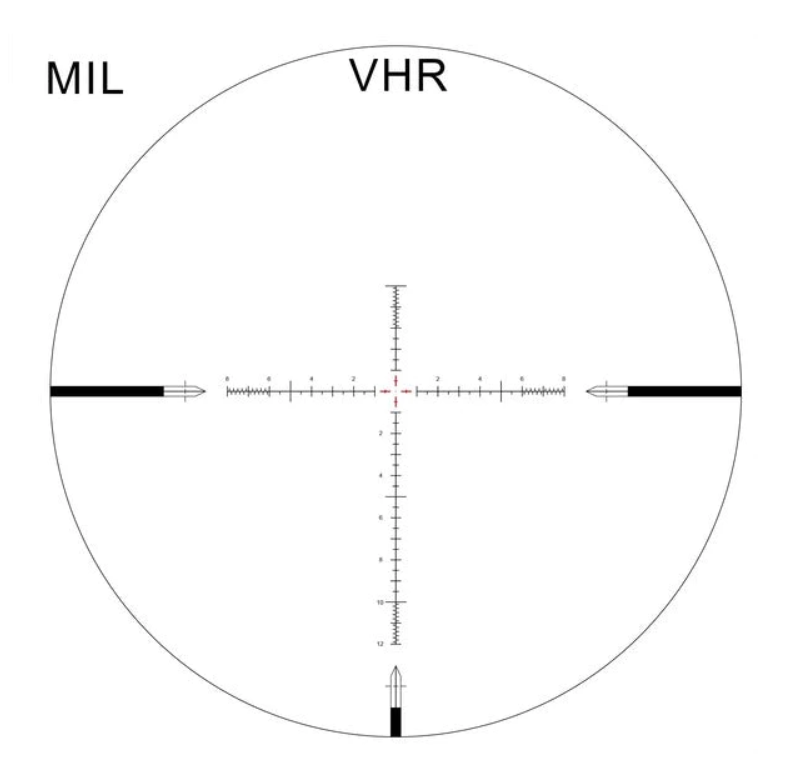

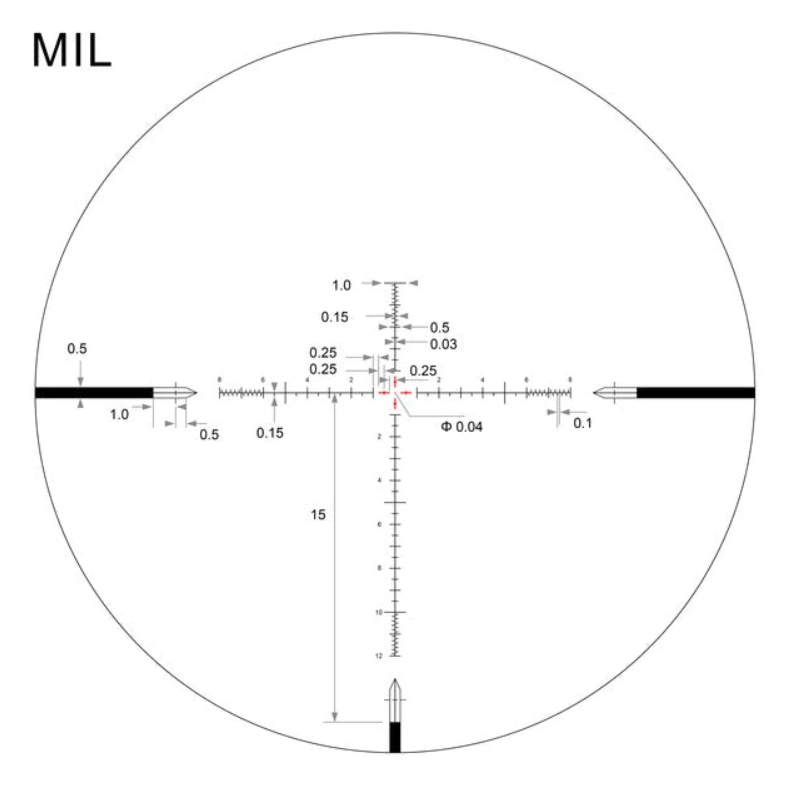

VHR MIL:
VHR MIL:

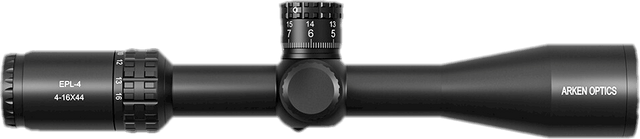

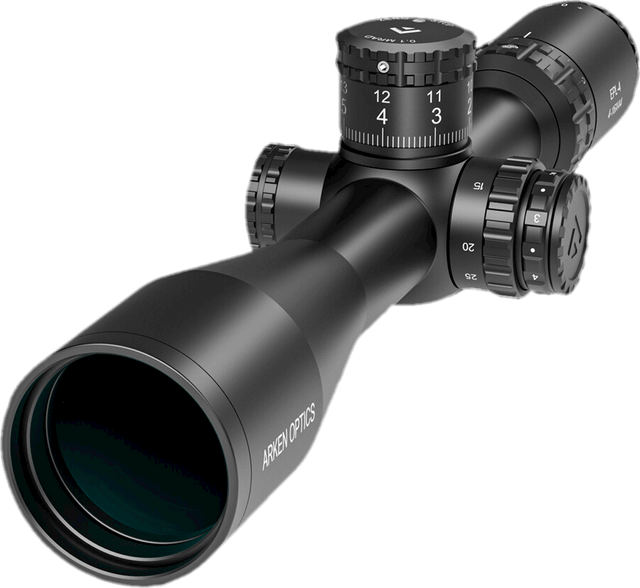

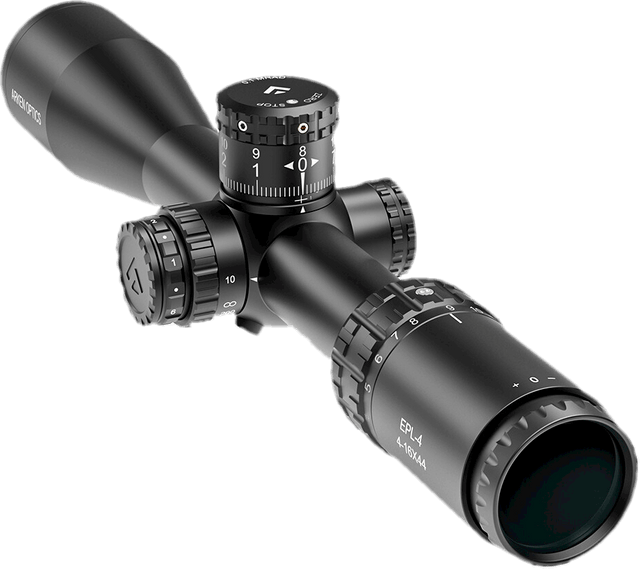

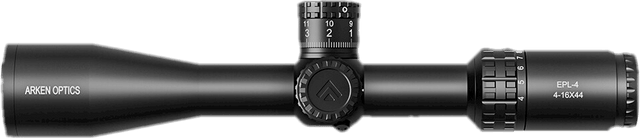

Arken Optics EPL4 4-16x44 FFP VHR Illuminated Rifle Scope.
Download the manual HERE
