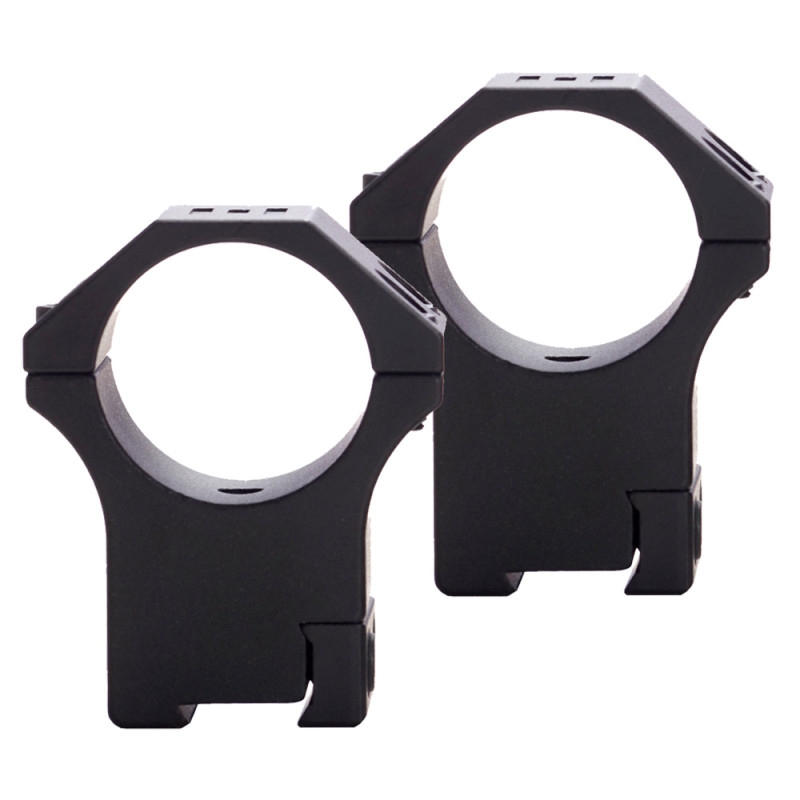

Element XT 1 Inch High Dovetail Rifle Scope Ring Mount
If you’re running a 1-inch scope and need maximum clearance on a dovetail setup, the Element Optics XT 1 Inch High Dovetail Rifle Scope Ring Mount is the option you go for when lower mounts just won’t cut it. It’s built from lightweight CNC-machined aluminium, so you still get a strong, stable platform without unnecessary weight or bulk. The high profile gives you plenty of space for larger objective lenses or rifles with tighter barrel clearance, making it a practical choice for more demanding setups. Even though it sits higher, it still keeps things solid and repeatable once properly torqued, so your zero stays consistent. It’s a simple, dependable mount that prioritises fitment and function over anything unnecessary.
-Nathan (Technical Advisor)
Available in both Dovetail and Picatinny, the XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics have designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone. These are available for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specification” tab.
Height = 31.7mm
- Height: 31.7mm
- Weight (pair): 96.2g
- Material: 6061 aluminium
- Mounts to: Dovetail
- Tools Required: T15 TORX
- Max Torque (rings): 18 in-lbs (2.0NM)
- Max Torque (base): 35 in-lbs (4.0NM)
- Element XT 1 Inch High Dovetail Rifle Scope Ring Mount
1. What size scope does this mount fit?
It is designed specifically for 1-inch scope tubes.
2. What rail type does it use?
This mount is made for dovetail rails, not Picatinny.
3. What does “high” height mean?
High height provides maximum clearance between the scope and barrel, useful for large objective lenses or tight rifle setups.
4. What is the exact height of the high version?
The high dovetail version measures about 31.7mm base-to-centre height.
5. What material is it made from?
It is CNC-machined from 6061 aluminium for a balance of strength and low weight.
6. How heavy is it?
The pair weighs roughly 96g depending on configuration.
7. Is it strong enough for recoil?
Yes, when correctly installed and torqued, it is designed to hold zero under normal recoil conditions.
8. What tools are needed for installation?
A T15 Torx driver and a torque wrench are recommended for proper fitting.
9. When should I choose high rings?
Choose high rings if you’re running a large objective lens (typically 50–56mm), a tight barrel setup, or need extra clearance for accessories.
10. Is it better than budget mounts?
Yes, it offers better machining consistency, stronger materials, and more reliable alignment than most entry-level dovetail rings.
- Lifetime manufacturer's warranty
