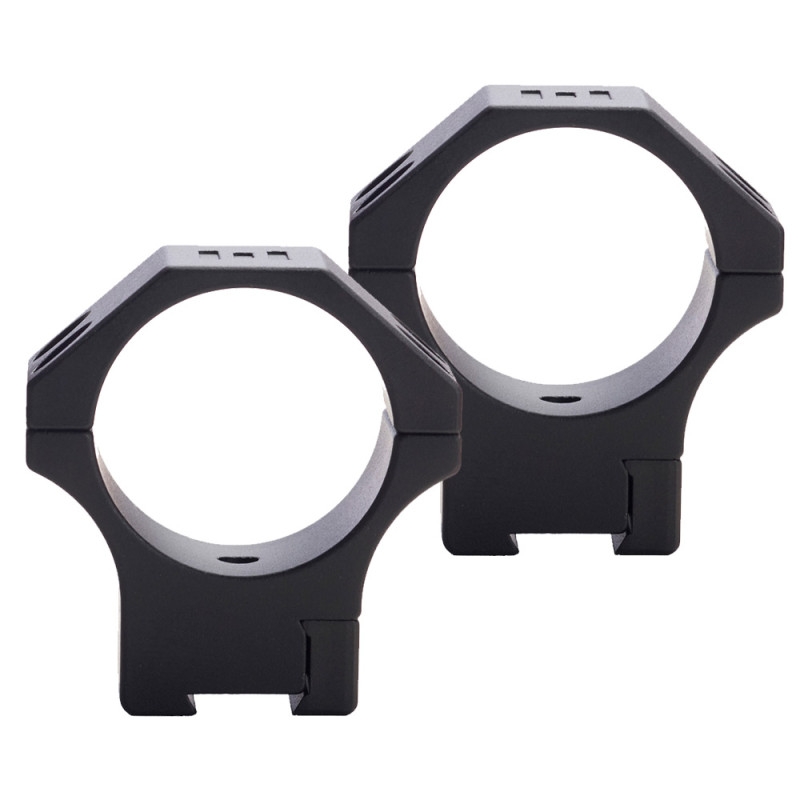

Element XT 30mm Medium Dovetail Rifle Scope Ring Mount
If you’re running a 30mm scope on a dovetail setup and want a reliable middle-height mounting solution, the Element Optics XT 30mm Medium Dovetail Rifle Scope Ring Mount is a really solid, no-fuss option. It’s built from lightweight CNC-machined 6061 aluminium, so you get a strong and stable mount without adding unnecessary bulk to your rifle. The medium height is the most versatile choice in the range, giving enough clearance for most 30mm scope bodies while still keeping the optic low enough for a comfortable cheek weld and consistent shooting position. It’s not overcomplicated or overly tactical, just a clean, dependable mount designed to hold zero properly when installed and torqued correctly.
-Nathan (Technical Advisor)
Available in both Dovetail and Picatinny, the XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics have designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone. These are available for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specification” tab.
Height = 27.2mm
- Height: 27.2mm
- Weight (pair): 82.8g
- Material: 6061 aluminium
- Mounts to: Dovetail
- Tools Required: T15 TORX
- Max Torque (rings): 18 in-lbs (2.0NM)
- Max Torque (base): 35 in-lbs (4.0NM)
- Element XT 30mm Medium Dovetail Rifle Scope Ring Mount
1. What scope tube size does this mount fit?
It is designed specifically for 30mm scope tubes.
2. What rail type does it use?
This version is made for dovetail rails, not Picatinny.
3. What is the height of the medium version?
The medium 30mm dovetail rings are approximately 27.2mm base-to-centre height.
4. What is it made from?
It is CNC-machined from 6061 aluminium for a balance of strength and low weight.
5. How heavy is it?
The pair weighs about 82.8g.
6. Is it strong enough for recoil?
Yes, it is designed to hold zero reliably under normal recoil when properly installed and torqued.
7. What tools are needed for installation?
A T15 Torx driver is required for fitting and adjustment.
8. What torque should be used?
Around 18 in-lbs for the rings and 35 in-lbs for the base is recommended.
9. Is medium height suitable for most scopes?
Yes, medium is the most versatile option and fits a wide range of 30mm scope setups.
10. Is it better than budget dovetail rings?
Yes, it offers better machining consistency, stronger materials, and more reliable alignment than most entry-level mounts.
- Manufacturer's Lifetime Warranty.
