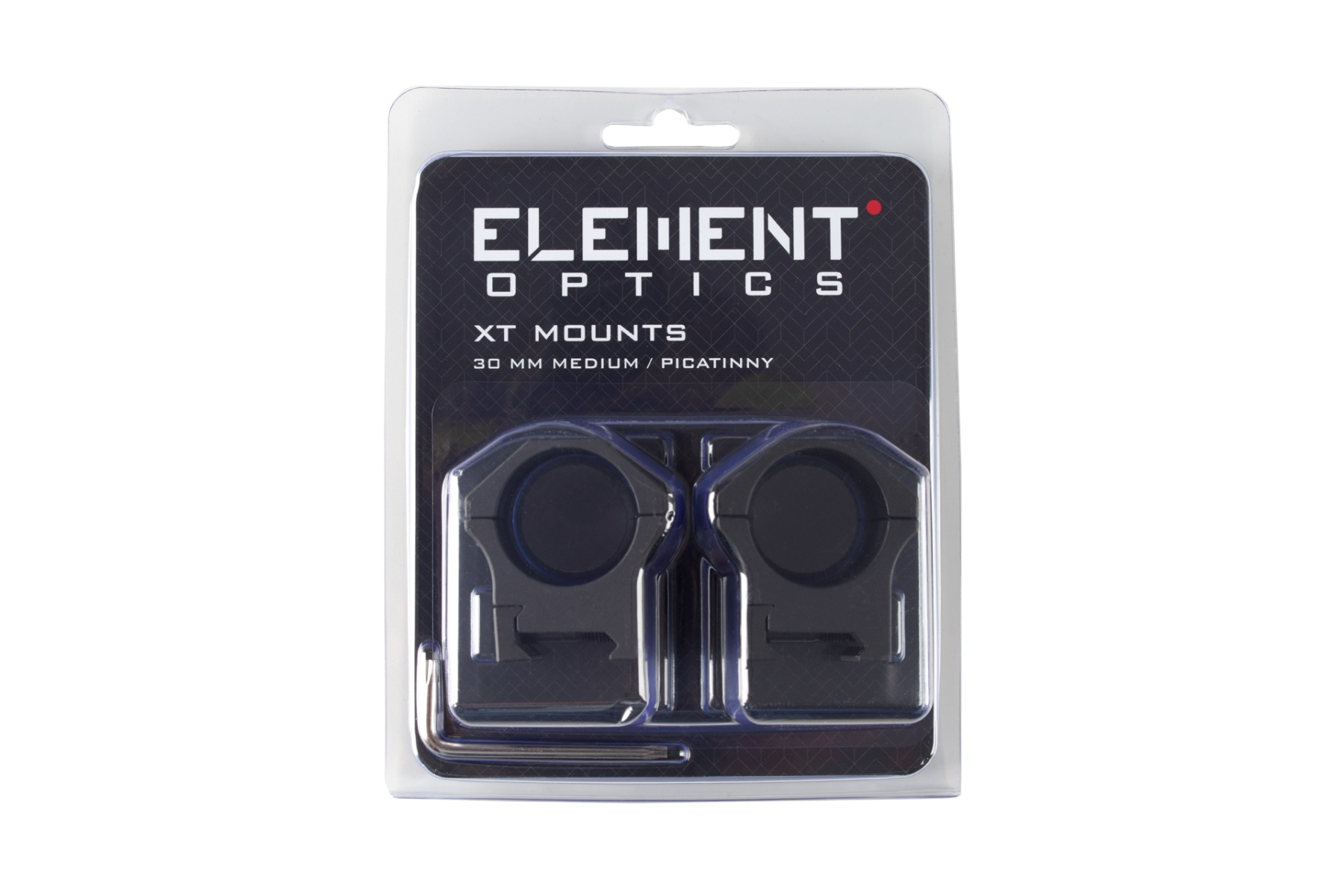

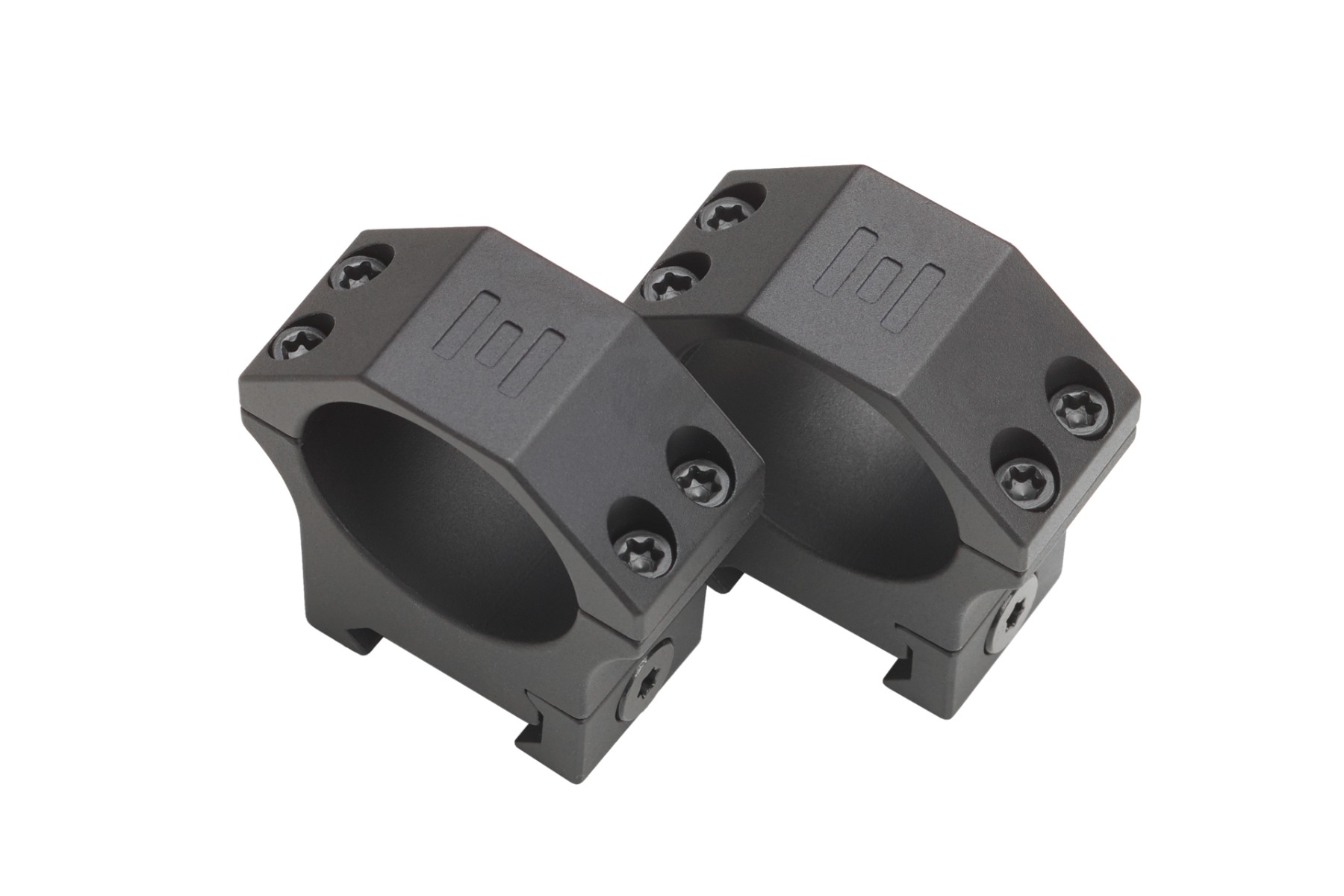

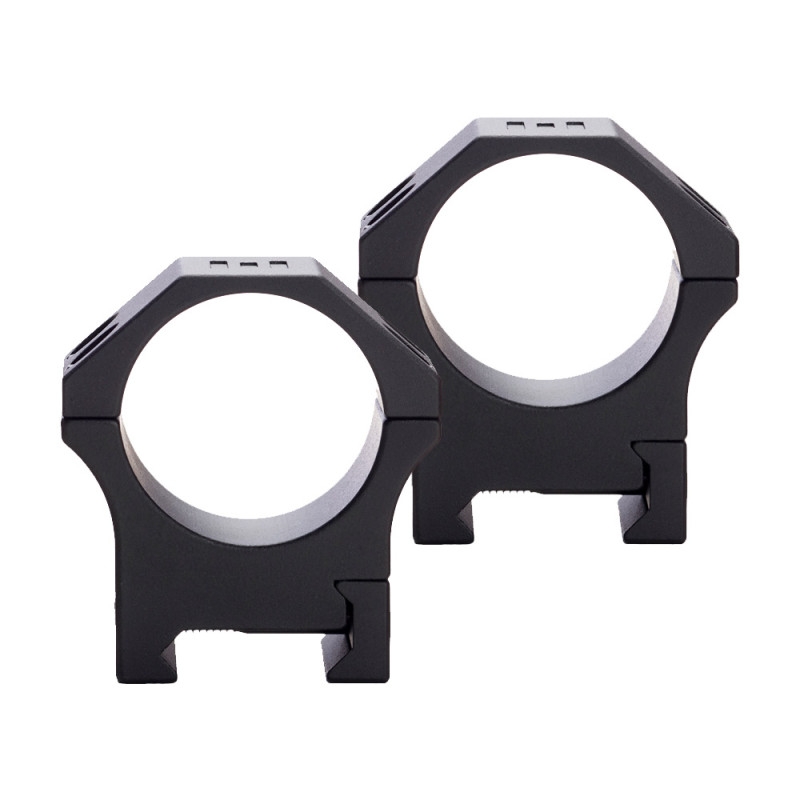

Element XT 30mm Medium Picatinny Rifle Scope Ring Mount
If you want a solid, do-it-all mounting option for a 30mm scope on a Picatinny rail, the Element Optics XT 30mm Medium Picatinny Rifle Scope Ring Mount is the most versatile “safe choice” in the range. It’s CNC-machined from 6061 aluminium, so you get a lightweight setup that still feels properly rigid and dependable under recoil. The medium height is the sweet spot for most builds, giving enough clearance for common objective lens sizes without pushing the scope unnecessarily high off the rifle. That keeps your cheek weld natural and your shooting position consistent, which really matters for repeatable accuracy. It’s not flashy or over-engineered, just a clean, reliable mount designed to hold zero properly when installed and torqued to spec.
-Nathan (Technical Advisor)
Available in both Dovetail and Picatinny, the XT Mounts provide a lightweight, affordable scope mounting solution without sacrificing any build quality. Element Optics have designed the XT Mounts to be structurally solid, with looks to compliment the sleekest of rifle setups. There is something for everyone. These are available for 30mm and 1” body tubes, and in a variety of height options.
Torque guidelines should be followed for the best possible results, as overtorquing rings can lead to temporary or permanent damage of the riflescope body tube and internals. These specs can be found below in the “specification” tab.
Height = 25mm
- Height: 25mm
- Weight (pair): 98g
- Material: 6061 aluminium
- Mounts to: Picatinny
- Tools Required: T15 TORX
- Max Torque (rings): 18 in-lbs (2.0NM)
- Max Torque (base): 35 in-lbs (4.0NM)
- Element XT 30mm Medium Picatinny Rifle Scope Ring Mount
1. What scope tube size does this mount fit?
It is designed specifically for 30mm scope tubes.
2. What rail system does it use?
It mounts directly to Picatinny rails.
3. What is the height of the medium version?
The medium Picatinny version is approximately 25mm base-to-centre height.
4. What is it made from?
It is made from 6061 aluminium for a balance of strength and low weight.
5. How heavy is it?
The pair weighs about 98g depending on configuration.
6. Is it strong enough for recoil?
Yes, when correctly installed and torqued, it is designed to hold zero under normal recoil conditions.
7. What tools are needed for installation?
A T15 Torx driver is typically required for fitting and adjustment.
8. What torque settings should be used?
Around 18 in-lbs for the rings and 35 in-lbs for the base are recommended.
9. When should I choose medium height?
Medium is best for most general setups where you need clearance for standard to moderately large objective lenses without raising the optic too high.
10. Is it better than budget mounts?
Yes, it offers better machining consistency, stronger materials, and more reliable alignment than most entry-level rings.
- Lifetime manufacturer's warranty
