Hawke Vantage 30 WA FFP 4-16x50 Half Mil Dot IR Reticle 30mm Rifle Scope
- First Focal Plane (FFP) Half Mil Dot reticle offers precise holdover and rangefinding at all magnifications
- Wide-angle field of view: 32.5 – 8.1ft @100yds for excellent situational awareness
- Side focus parallax adjustment ensures pinpoint accuracy at varying distances
- Exposed locking turrets with 1/10 MRAD click values for quick, reliable adjustments
- Fully multi-coated 50mm lens delivers bright, clear images in all lighting conditions
- Shockproof, waterproof, nitrogen-purged 30mm mono-tube chassis for rugged durability in the field
The Hawke Vantage 30 WA FFP 4-16x50 IR Rifle Scope is built to deliver precision, durability and reliability for all shooting disciplines. Designed with a robust 30mm mono-tube chassis, this scope incorporates Hawke’s H2 optical system for crisp, bright imagery across all conditions. It features a first focal plane (FFP) configuration, meaning the Half Mil Dot reticle scales with magnification, providing accurate holdover and rangefinding at any zoom level, crucial for long-range shooting and changing field conditions.
The FFP Half Mil Dot reticle, specially developed for FFP optics, includes half mil spacing out to 5 mils in all directions and hollow posts with mil and 0.2 mil markings for bracketing and rangefinding. This reticle, combined with 1/10 MRAD click adjustments on exposed locking turrets, allows shooters to make precise, repeatable corrections with confidence, where every 10 clicks equals 1 MRAD, true at all magnifications.
Designed with a wide-angle field of view from 32.5 to 8.1 feet at 100 yards (6.2° to 1.5°), this scope ensures excellent target acquisition and awareness of the surrounding environment. The side focus parallax adjustment, operable from 10 yards to infinity, delivers consistent sharpness and eliminates parallax error over a wide range of distances.
The 11-layer fully multi-coated lenses, high-torque zoom ring, and fast-focus eyebell guarantee optimal optical performance and ease of use. Meanwhile, the 5-step red and green illumination ensures the glass-etched reticle remains clear and visible in all lighting environments. Built to withstand the harshest conditions, it is nitrogen purged, shockproof, waterproof, and fog proof, making it a reliable companion in any terrain or weather. Backed by the Hawke No-Fault Lifetime Warranty, this scope offers complete peace of mind for serious shooters who expect exceptional quality and versatility.
- Optical System System H2
- Scope Tube 30mm
- Magnification 4 - 16x
- Objective Lens 50mm
- Reticle FFP Half Mil Dot (16x)
- Illumination 5 Levels (Red & Green)
- Illumination Control Stepped Rheostat
- Parallax Side Focus
- Field of View 32.5 - 8.1ft @100yds / 10.8 - 2.7m @100m
- Field of View (°) 6.2 - 1.5
- Eye Relief 3.5in / 90mm
- PX/Focus (Error free from) 10yds - ∞ / 9m - ∞
- Click Value 1⁄10 MRAD
- Turret Type (Elevation) Exposed

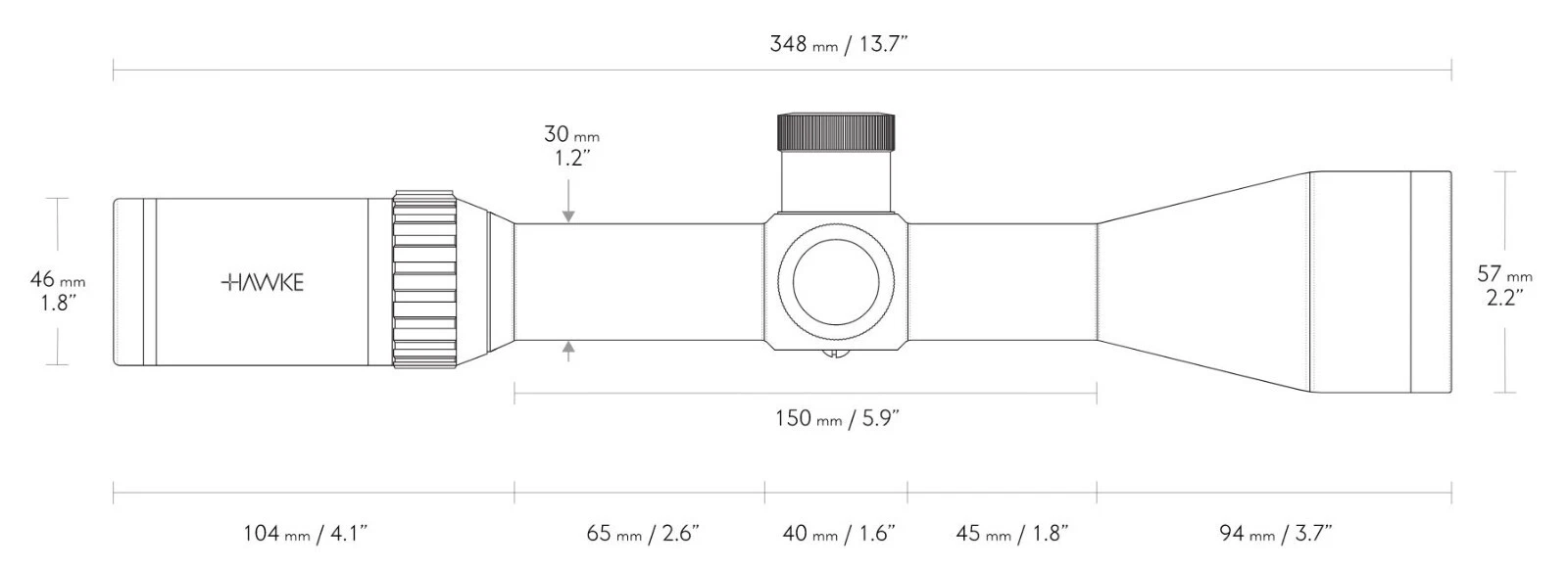

- Length 13.7in / 348mm
- Weight 26.3oz / 745g
-
First Focal Plane (FFP) Reticle: Reticle scale remains constant relative to the target across the zoom range, allowing consistent holdover and ranging at any magnification.
-
FFP Half Mil Dot Design: Offers half mil spaced markings and hollow segmented posts for accurate bracketing, rangefinding, and aiming.
-
Multi-Stage Illumination: Red and green illumination with multiple brightness levels, enhancing reticle visibility in varying lighting conditions.
-
Wide Angle Optical System: Provides a broad field of view, ideal for target tracking and scanning large areas quickly.
-
Side Focus Parallax Adjustment: Allows precise focusing and parallax correction from close range to infinity.
-
Exposed Locking Turrets: Designed for fast, accurate, and secure adjustments in the field, with tactile and audible clicks.
-
11-Layer Fully Multi-Coated Lenses: Ensures high light transmission, clarity, and colour fidelity for optimal viewing.
-
High Torque Zoom Ring: Offers smooth and precise magnification adjustment, even in cold or wet conditions.
-
Fast-Focus Eyebell: Enables rapid reticle focus for improved speed and accuracy.
-
Durable Construction: Built on a 30mm mono-tube chassis, nitrogen-purged and rated for all calibres, shockproof, waterproof, and fog proof.

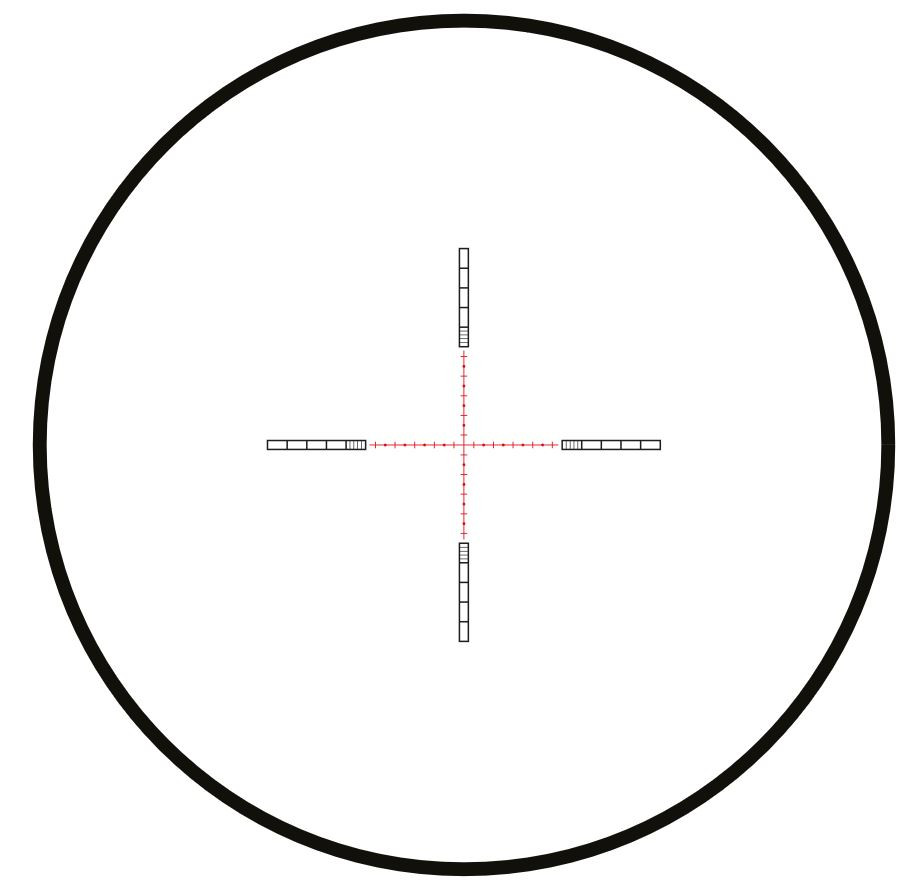

FFP HALF MIL DOT RETICLE
The FFP Half Mil Dot reticle was developed specifically for first focal plane optical systems and based around the common principles of mil spaced reticles. With half mil spaced markings out beyond 5 mil in all directions, the FFP Half Mil Dot is a versatile reticle that provides aim points no matter how extreme the conditions.
Hollow posts are segmented into mil spacing and 0.2 mil spacings, so can be used for bracketing and rangefinding.
The mil spaced reticle and 1/10 MRAD turrets make for easy point of aim adjustment. Every 10 clicks on the turret will measure exactly 1 mil spacing on the reticle, also known as 1 MRAD. Because of FFP this is true on all magnifications.
FFP HALF MILDOT RETICLE
Box
Instruction Manual
Riflescope Alignment Booklet
Lens Covers
Lens Cloth
Hawke Worldwide Warranty
