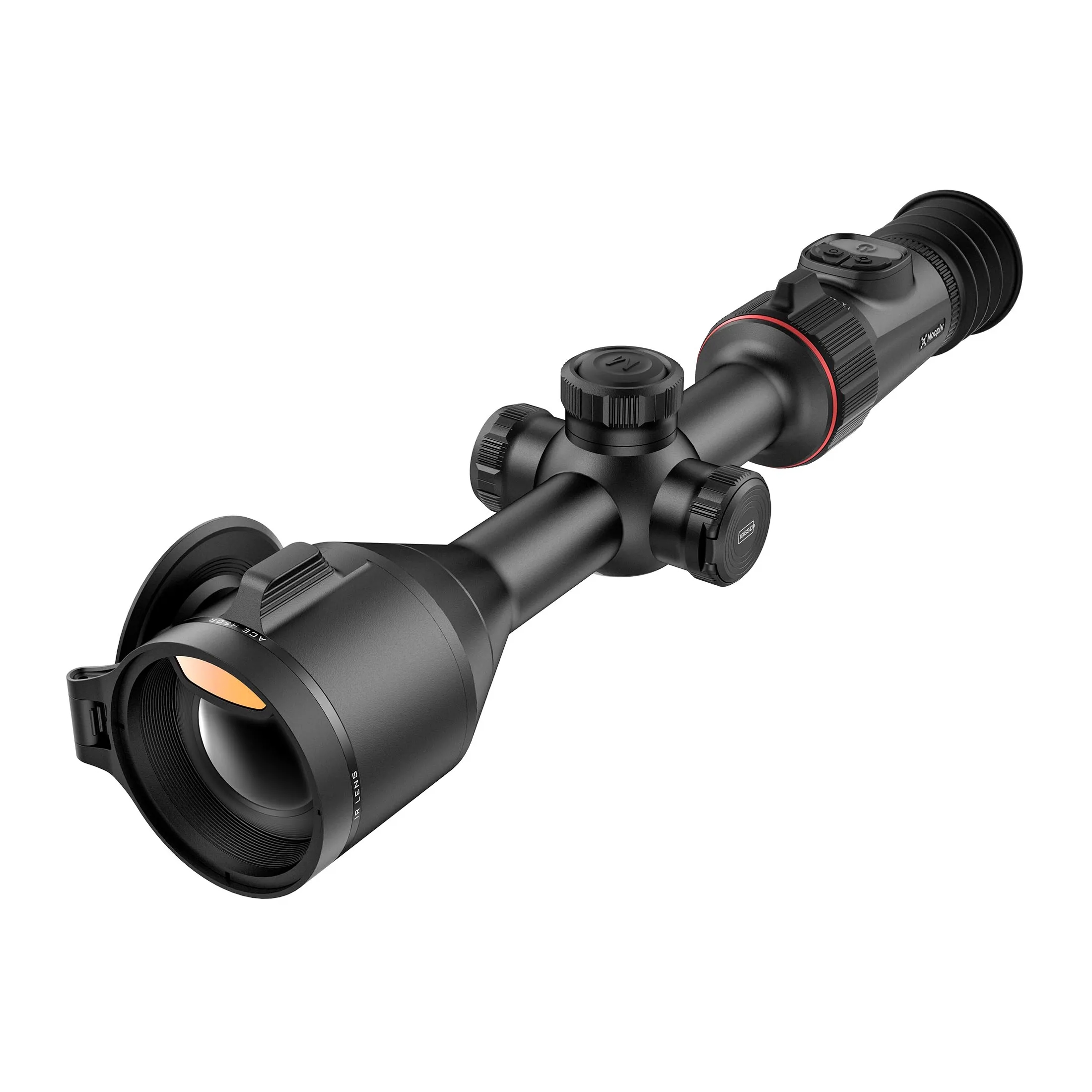

NocPix ACE H50R Thermal Rifle Scope - 12um 640x512 <15mK NETD w/ LRF & Ballistic Calculation
At the heart of the ACE H50R is its Gen-2 HD thermal sensor, which boasts a resolution of 640x512 and a 60Hz frame rate, offering an incredibly stable performance. With an NETD of ≤12mK, this scope detects even the smallest temperature differences, ensuring detailed and smooth thermal imagery, ideal for tracking fast-moving targets in real-time. The advanced Reality+ imaging algorithm further enhances this by eliminating environmental temperature noise, providing superior contrast and clarity even in complex hunting conditions.
The ACE H50R is equipped with a 50mm/F0.9 lens, which allows 20% more light to reach the sensor, producing brighter and clearer images. This is crucial for hunters aiming for precision, as the improved light transmittance ensures enhanced visibility in low-light environments. Furthermore, the 3100-meter detection range sets the ACE apart, making long-range identification and tracking of distant targets easier and more efficient than ever before.
The integrated Vision+ system elevates the visual experience with a 1.03-inch, round AMOLED display featuring a 2560x2560 resolution. Its ocular zoom system, designed to avoid the blurring and distortion commonly associated with traditional e-zoom, ensures that hunters enjoy high-resolution, crisp close-up views without losing detail. This provides an immersive, comfortable viewing experience, whether observing prey from a distance or zooming in for precise targeting.
The ACE H50R’s laser rangefinder (LRF) is built for precision, offering accurate distance measurements up to 1200 meters. This system, aligned perfectly with the optical axis, ensures that hunters can measure distances effortlessly while maintaining the scope's sleek and elegant design.
Built for extended use in the field, the ACE features a dual-battery system with a built-in 4000mAh battery and an additional replaceable 18650 battery, allowing for uninterrupted operation during long hunting sessions. The durable design, crafted from high-strength aluminum alloy, ensures the ACE can withstand rugged outdoor environments and intense use, having passed rigorous impact resistance tests. With an IP67 water resistance rating, the scope remains reliable in adverse weather conditions, offering hunters peace of mind no matter the environment.
Designed with hunters in mind, the NocPix ACE H50R includes essential features such as ballistic calculations for improved accuracy, recoil-activated video recording, and a shutterless design, ensuring seamless operation in the field. With user-friendly additions like a focus adjuster, charging cover, and the ability to playback videos directly via the Gallery feature, this scope combines high performance with convenience for an optimal hunting experience.
- Type: Vox
- Resolution, Pixels: 640×512
- Pixel Size, um: 12μm
- NETD, mK: ≤ 15
- Frame Rate, Hz: 60
Optical Specifications:
- Objective Lens, mm: 50/F0.9
- Field of View (H×V), º: 8.8×7.0
- Linear Field of View (H×V), m @ 100m: 15.4x12.3
- Magnification, x: 3~24
- Ocular zoom, x: 1~3
- Eye Relief, mm: 50
- Exit Pupil Diameter, mm: 8
- Diopter, D: -5~+5
- Detection Range, m: 2600
Display Specifications:
- Type: AMOLED
- Resolution: 2560×2560
Battery Power Supply:
- Battery: Built-in battery/4000mAh + Replaceable 18650 battery
- Max. Operating Time (22ºC), h: 7
- External Power Supply: 5V (Type C)
Physical Specifications:
- Wi-Fi / APP Support: Yes
- Photo / Video Recorder: Yes
- Recoil Activated Video: Yes
- Gallery: Yes
- Memory Capacity: 64GB
- IP Rating: IP67
- Operating Temperature, ℃: -20 ~ +50
- Weight, g: 1120
- Dimension, mm: 365x90x68
Connections and Compatibilities:
- Max. Recoil Power on Rifled Weapon (Eo), Joules: 6000
- Compatible Mount: 30mm Tube
- Safety Class for Laser Rangefinder: Class 1
- Measuring Range, m: 1200, ±1
- Ballistic Calculation: Support
- Advanced thermal imaging for superior night vision
- Integrated laser range finder (LRF) for accurate distance measurement
- Proprietary Reality+ imaging enhancement for improved contrast and clarity
- Vision+ system with ocular zoom for high-resolution images without distortion
- Dual-battery system for extended operational time
- Ballistic calculations for enhanced targeting accuracy
- Recoil-activated video recording for capturing hunting moments
- Shutterless design for seamless operation
- User-friendly features such as a focus adjuster and direct video playback
- Rugged construction for durability in challenging environments
- IP67 water resistance for reliable performance in adverse weather conditions
- NocPix ACE H50R Thermal Rifle scope - 12um 640x6512 15mK NETD w/ LRF & Ballistic Calculation
- NocPix 3 year warranty for main body, 2 year warranty for battery and 10 years for detector.
