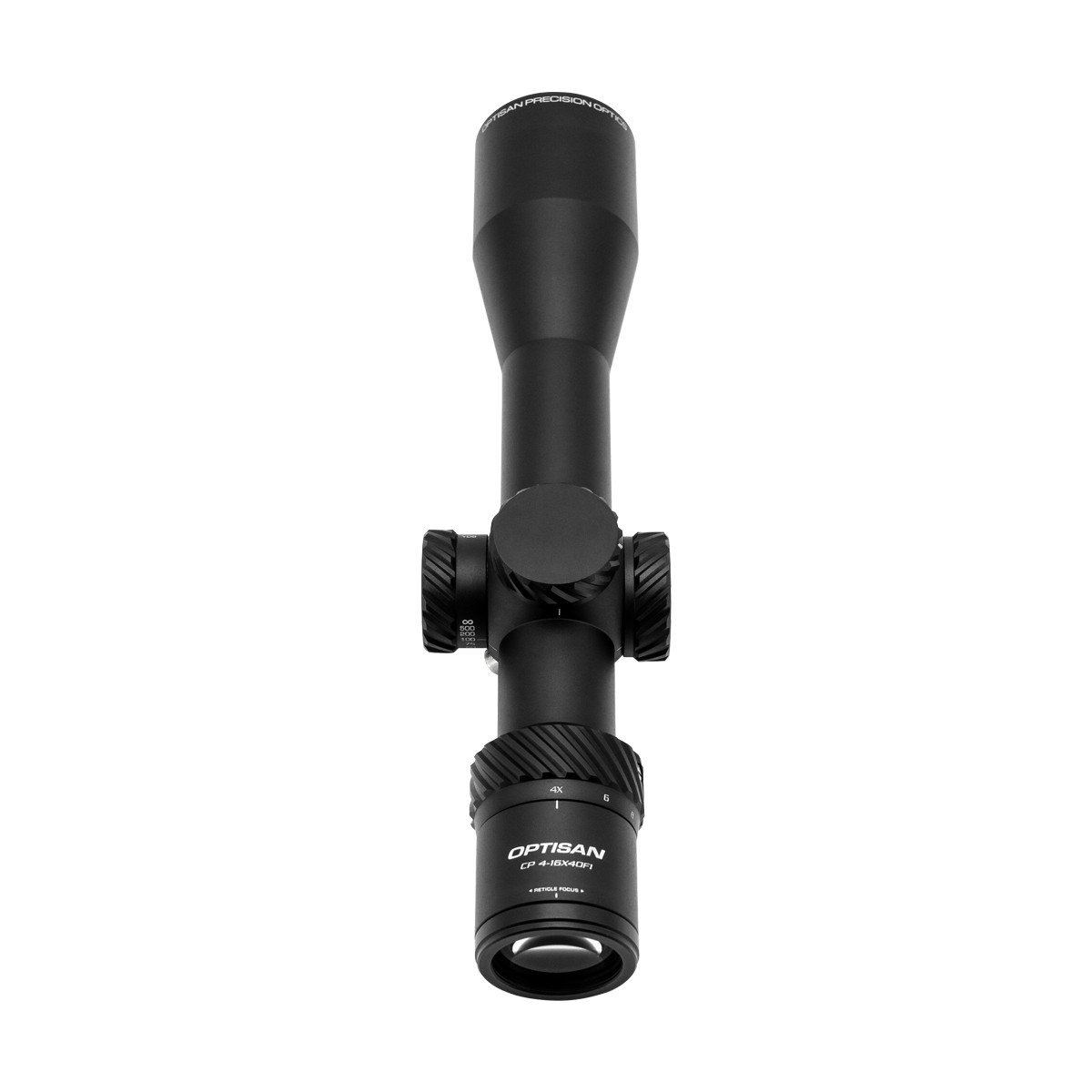

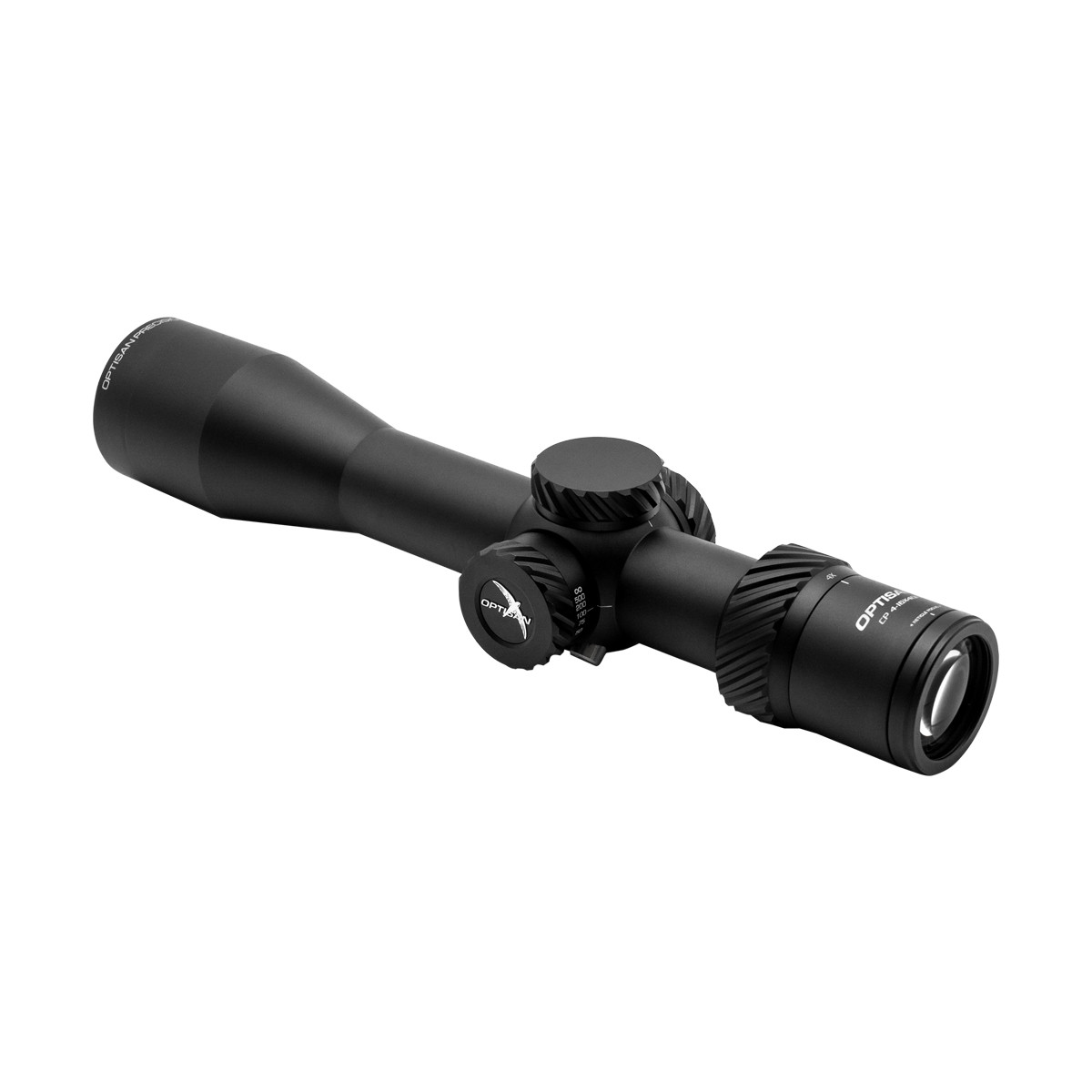

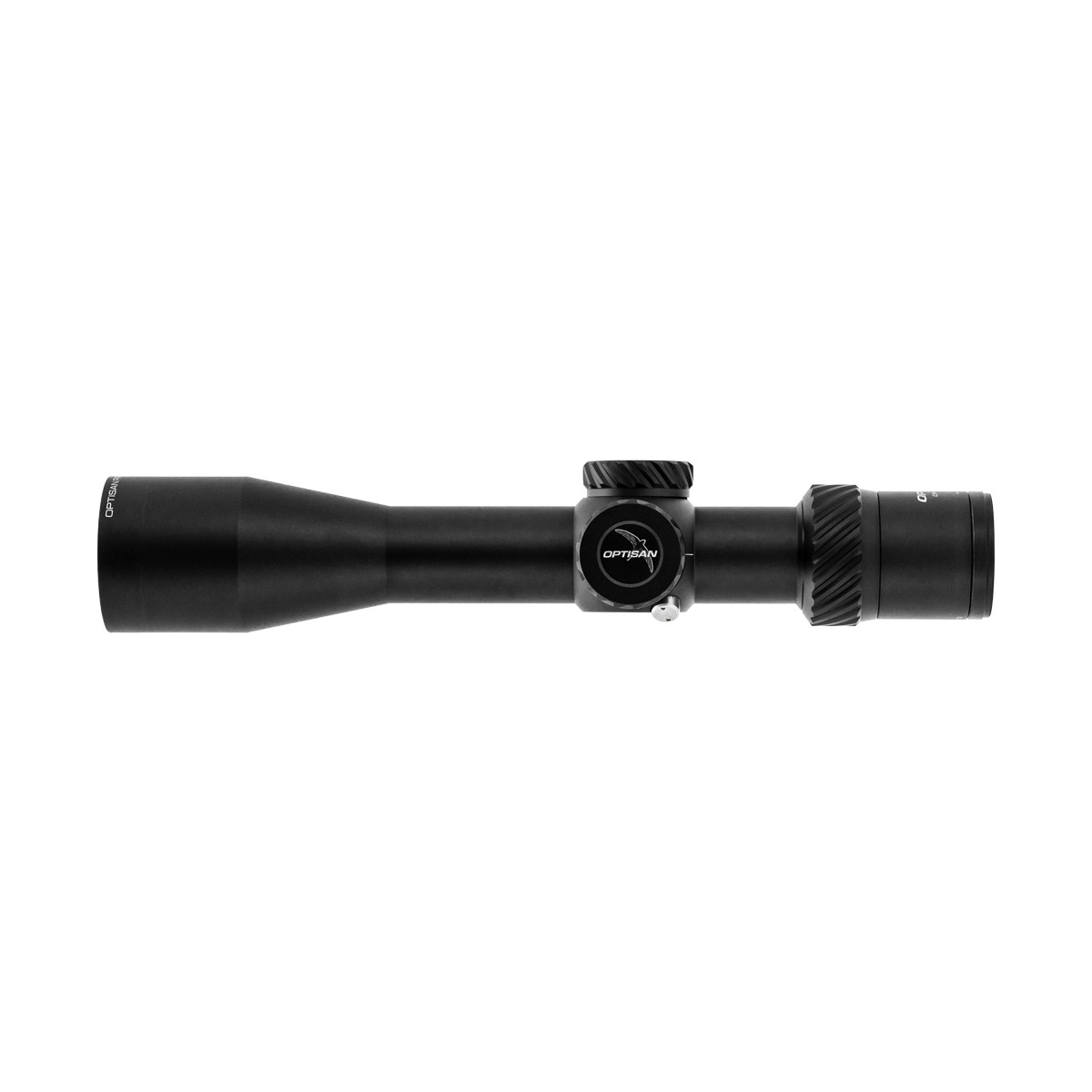

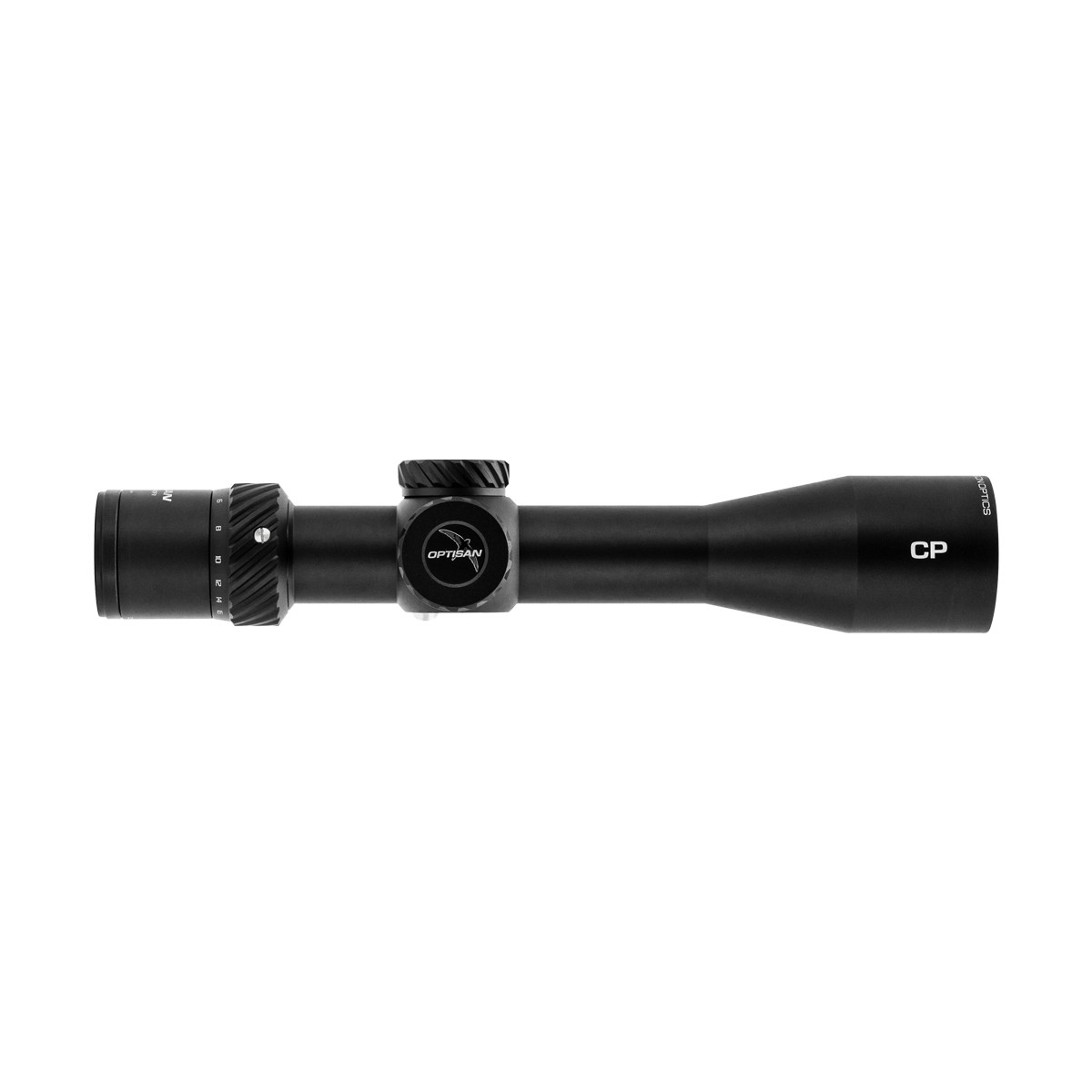

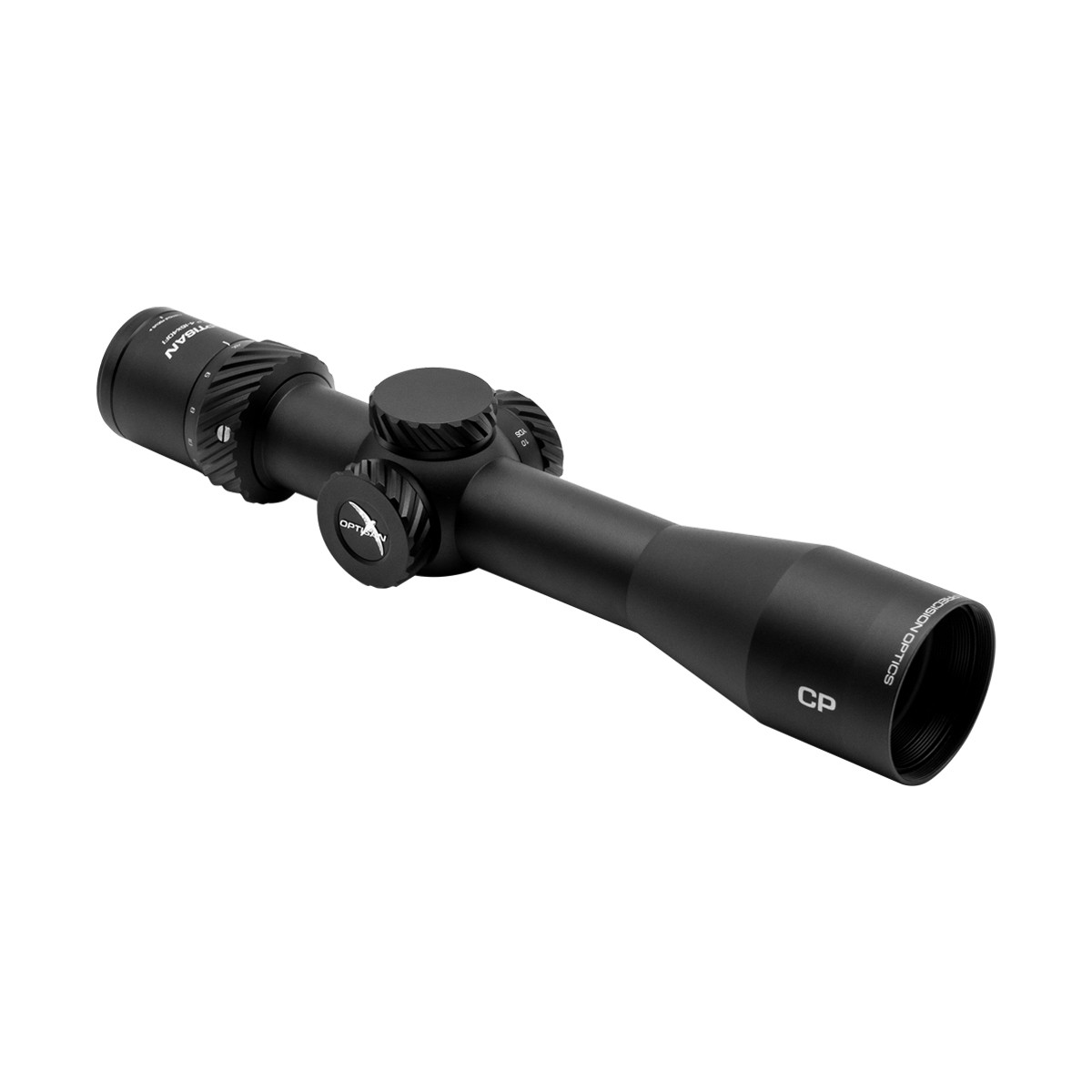

Optisan Optics CP 4-16x40 F1 FFP Non Illuminated F1MOA16 Side Focus 30mm Rifle Scope
The Optisan Optics CP 4‑16x40 F1 FFP Non‑Illuminated F1MOA16 Side Focus 30 mm Rifle Scope is designed for shooters who demand precision, versatility, and durability in one compact optic, offering a smooth 4–16× magnification range and a 40 mm objective lens that delivers bright, sharp images from close to mid‑range targets. Its First Focal Plane (FFP) F1MOA16 reticle scales with magnification, ensuring that holdovers and corrections remain accurate at any power. With 0.25 MOA per click turrets and a side focus parallax adjustment, you can fine‑tune your aim and maintain a crisp, aligned target image at varying distances. Built on a rugged 30 mm main tube with fully multi‑coated optics, this scope stands up to field use while remaining lightweight and easy to handle, making it ideal for hunting, tactical shooting, or precision target work.
-Nathan (Technical Advisor)
The highly anticipated Optisan CP first focal plane riflescopes have finally arrived. This scope is available in both MRAD-based reticles and MOA-based reticles. These come with matching click values to it make sit nice and easy whilst out in the field to make your adjustments and holdovers.
The main reason the first focal plane reticles were introduced to the CP'S was due to the fact that the first focal plane reticles are always consistent no matter what magnification you are on. So with this being an air rifle focus rifle scope, predominantly used by HFT and vermin control, having the ability to call holdoffs using your reticle on every magnification is incredibly useful. This was the feedback received by Optisan and they listened to bring you the Optisan CP 4-16x40.

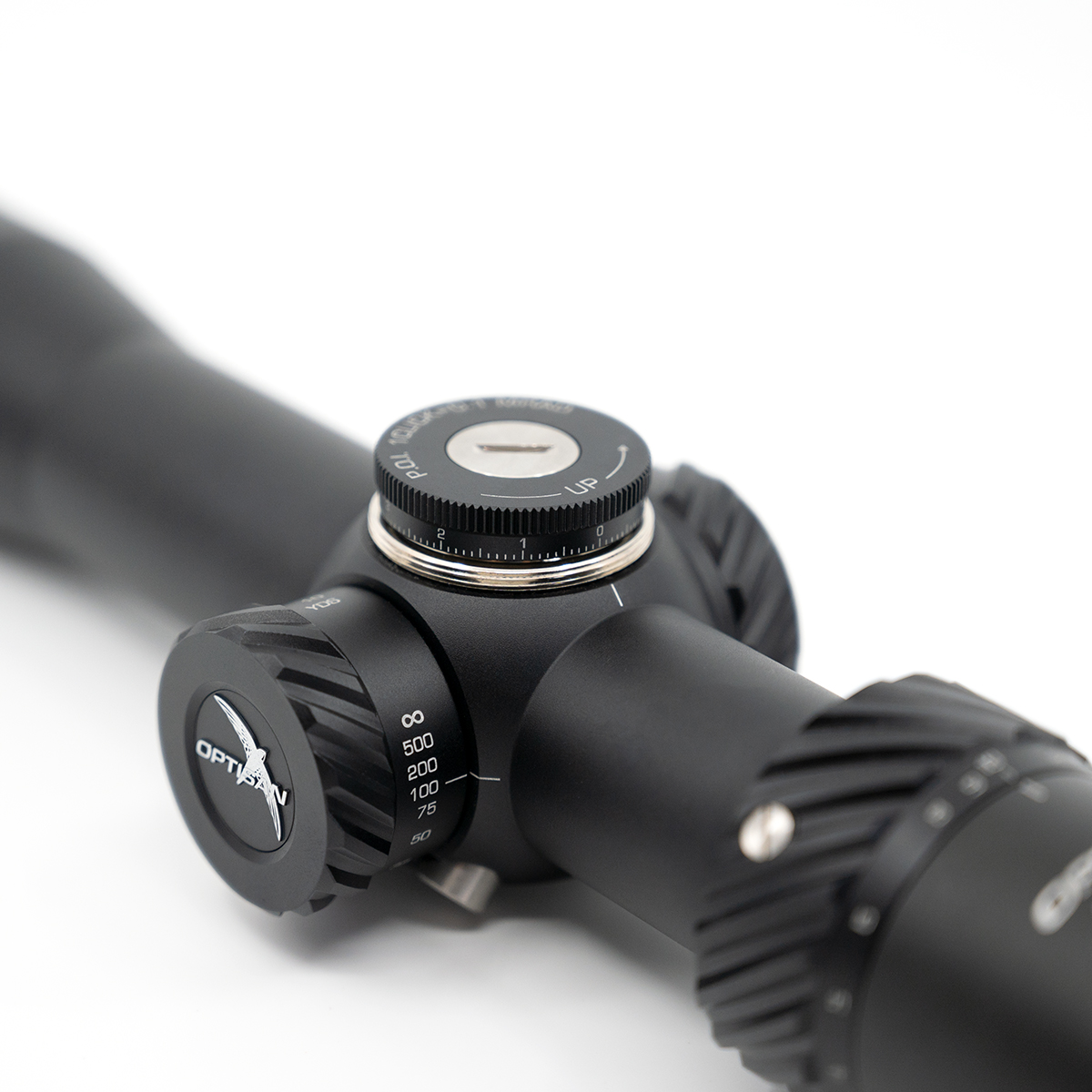

Much like its second focal plane brother, the Optisan CP 4-16x40 FFP MOA measures only 268mm in length and weighs only 530 grams. It features a 30mm main tube and one-piece construction made from aircraft-grade aluminium. If you are buying the first focal plane MRAD riflescope you are going to get a 0.1 MRAD click, and if you are buying the first focal plane MOA, you are going to get a ¼ MOA click. The turrets on these are low profile and under caps.
Both the MRAD and the MOA versions of the Optisan CP 4-16x40 F1 come with a non-illuminated reticle and feature a hash-mark reticle which will provide the shooter with more than enough holdover points to accurately call wind calls without having to dial in the turrets, making it a perfect choice for Air Rifle Shooters.
To follow on, the Optisan CP 4-16X40 has parallax adjustments from 10 yards out to infinity and features fully multi-coated lenses which are consistent throughout the CP range of riflescopes which shooters are incredibly happy with.
| Magnification (High) | 16X ±5% |
| Magnification (Low) | 4X ±5% |
| Objective Diameter (mm) | 40mm |
| Outer dia. Objective (mm) | 48mm |
| FOV (min.mag）(ft/100yds) | 26.20 |
| FOV (max.mag）(ft/100yds) | 6.55 |
| Eye relief (in) | 3.5'' - 3.3'' |
| Exit Pupil (Max mag.） (mm) | 10 mm |
| Exit Pupil (min. mag.） (mm) | 2.5 mm |
| Diopter Range (dpt) | +/- 2.0 |
| Parallax Adjustment | 10yds - infinity (100yds pa free) |
| Coating | Fully Multi-coated |
| Tube Construction | One-piece tube, aircraft aluminum |
| Elevation Adjustment (value per click) | 1/4 MOA |
| Windage Adjustment (value per click) | 1/4 MOA |
| Turret Style (Elevation) | Low profile |
| Turret Style (Windage) | Low profile |
| Elevation adj. range | ≥ 18 mrad |
| Windage adj. range | ≥ 18 mrad |
| Eye Piece Diameter (in) | 1.55'' |
| Eye Piece Diameter (mm) | 39.5 mm |
| Eye Piece Length (in) | 1.08'' |
| Eye Piece Length (mm) | 27.55 mm |
| Mounting Length rear (mm) | 55.70 mm |
| Mounting Length front (mm) | 30.00 mm |
| Tube Dia. (mm) | 30 mm |
| Length (in) | 10.55'' |
| Length (mm) | 268mm |
| Weight (g) | 530g |
| Weight (oz) | 18.69 oz |
| Surface Finish | Matte Black |
| Functional temperature | -20 ~ 50 degree celcius |
| Storage temperature | -20 ~ 50 degree celcius |
| Reticle | F1MOA16 |
| Focal plane | SFP |
| Illumination | Non-Illuminated |

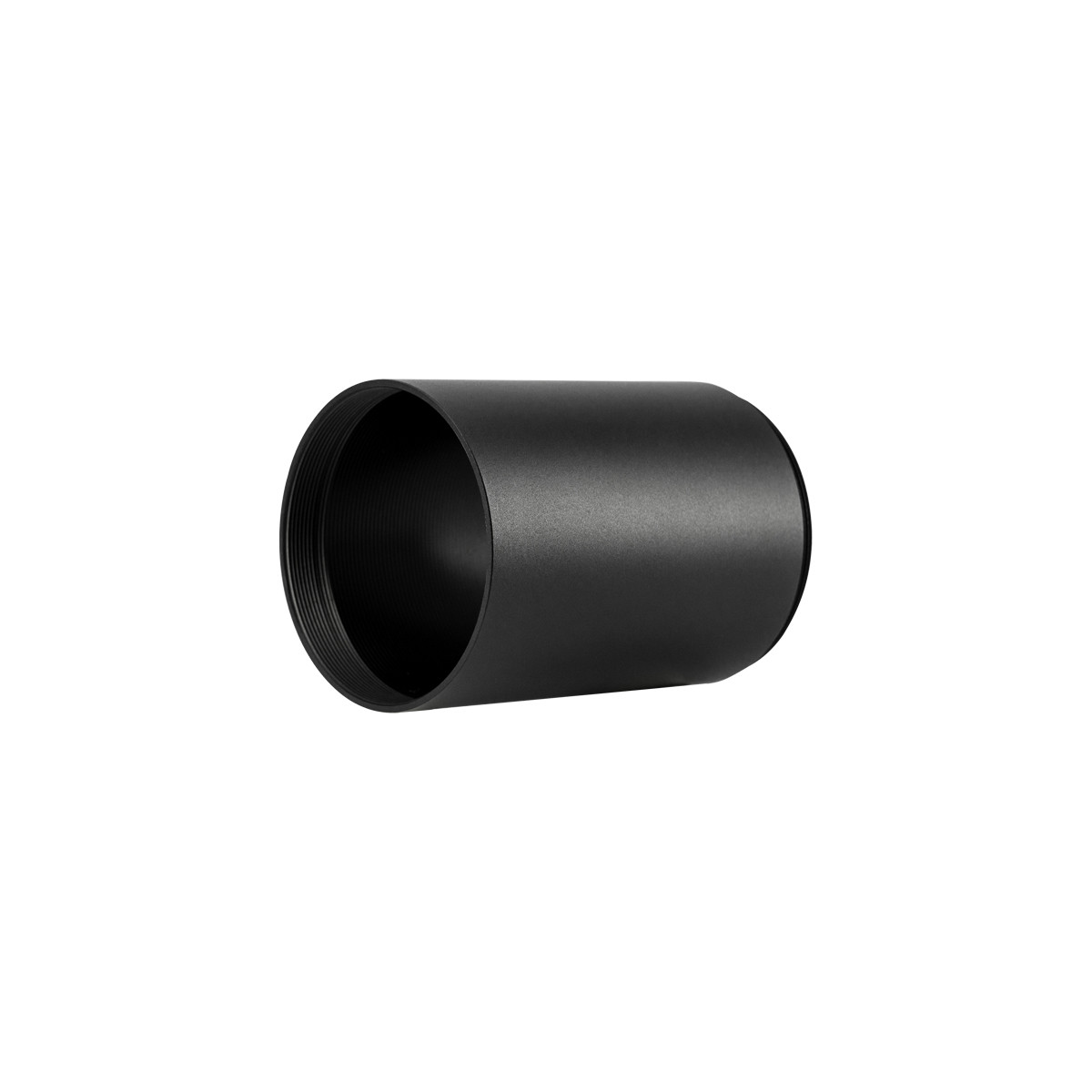

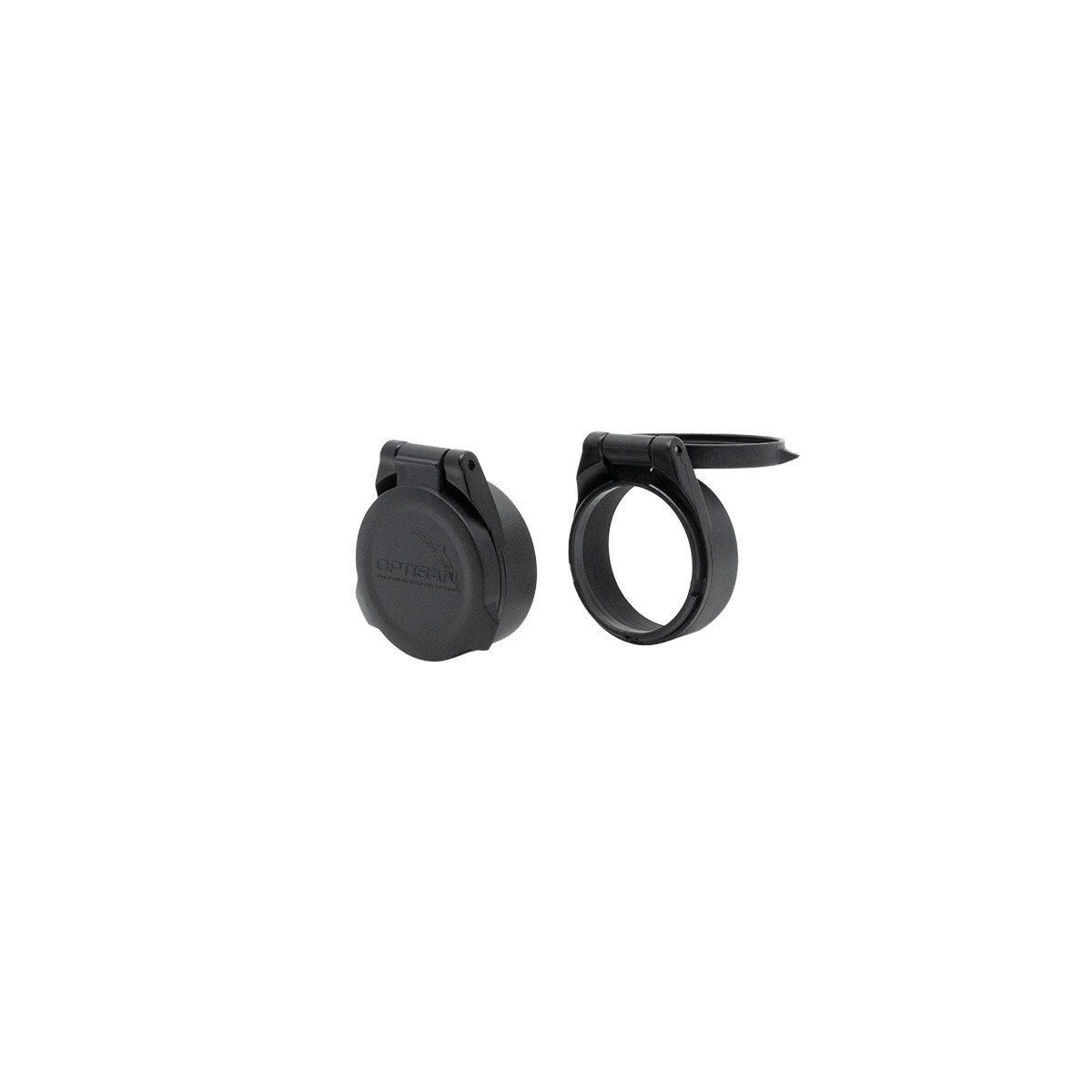

| Standard Accessories | 2.5'' sunshade, ABS flip up covers |
| Travel Per Rotation |
Optisan Optics CP 4-16x40 F1 (F1MOA16) Non-Illuminated Rifle Scope.
-
What does “4‑16x40” mean?
It indicates a variable magnification from 4× to 16× and a 40 mm objective lens that balances brightness, clarity, and compact size -
What is a First Focal Plane (FFP) reticle?
The reticle scales with magnification so all subtensions remain accurate at every zoom level for reliable holdovers and range estimation -
What does F1MOA16 reticle mean?
It’s an MOA-based reticle with 16 marks designed for practical holdovers, wind corrections, and range estimation using MOA measurements -
Is the reticle illuminated?
No, the reticle is non-illuminated for clear, distraction-free aiming in most lighting conditions -
What does 0.25 MOA per click adjustment mean?
Each turret click adjusts the point of impact by 0.25MOA, giving precise control over elevation and windage -
What is side focus (parallax adjustment)?
Side focus allows you to eliminate parallax error at varying distances so the reticle and target remain sharp and aligned -
Does this scope perform well in low light?
Yes, the 40 mm objective lens and fully multi-coated optics provide bright, clear images at dawn, dusk, or in shaded environments -
Is this scope suitable for hunting?
Yes, its versatile magnification and rugged construction make it ideal for hunting a wide range of game -
Is this scope durable in the field?
Yes, the 30 mm main tube and quality materials ensure it withstands recoil, rough handling, and outdoor conditions -
Who is this scope best suited for?
Shooters looking for a reliable, mid-to-long-range optic with true-to-scale FFP reticle performance, precise adjustments, and consistent field reliability
