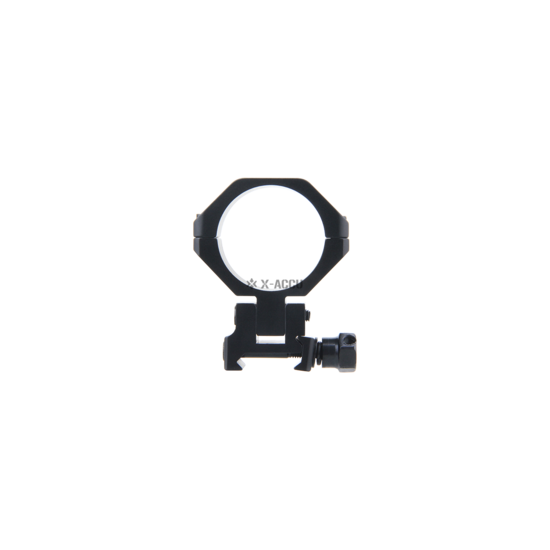

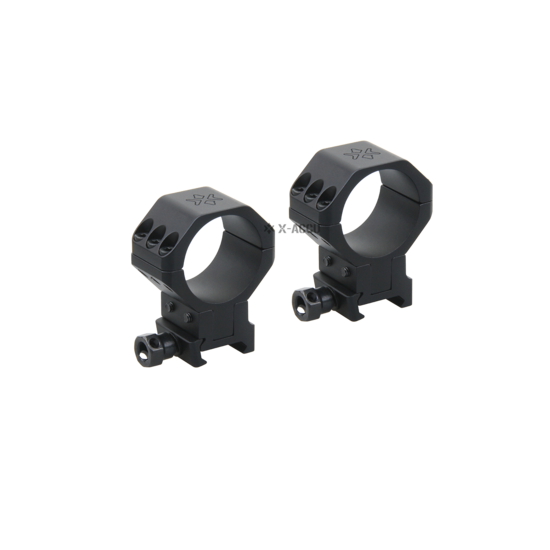

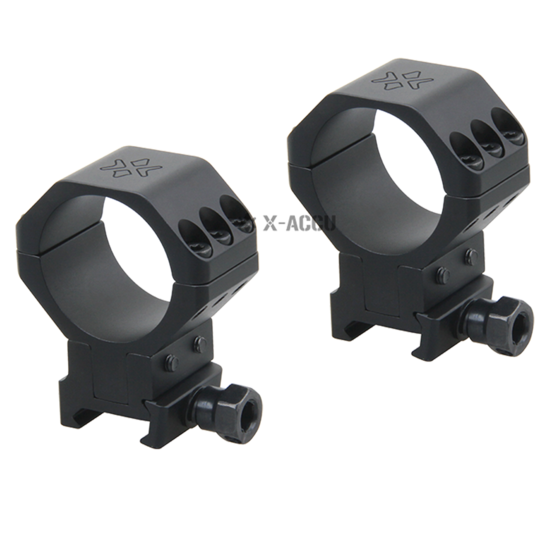

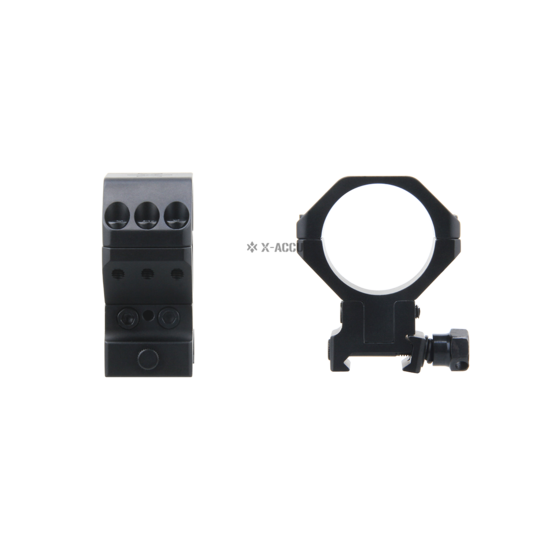

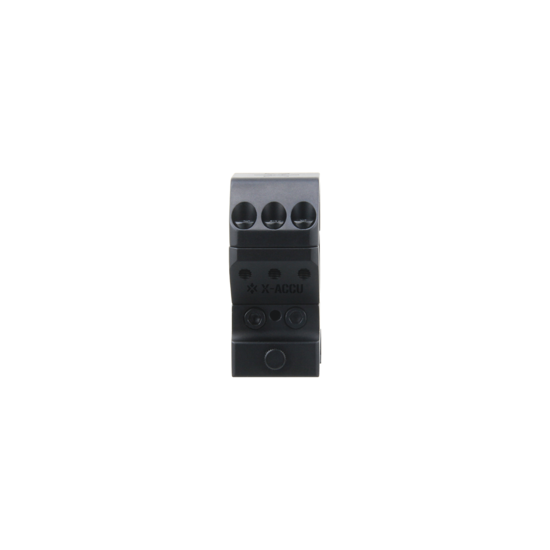

Vector Optics X-ACCU 34mm Adjustable Elevation Picatinny Rings
If you want a budget-friendly way to fine-tune scope height instead of messing around with shims or swapping mounts, the Vector X-ACCU 34mm Adjustable Elevation Rings are genuinely handy. You get a solid Picatinny fit plus built-in elevation adjustment so you can dial your scope position properly. It’s one of those “cheap but clever” upgrades that makes setup way less painful.
-Nathan (Technical Advisor)
34mm Diameter, Adjustable Elevation Height From 34.5 to 40.5mm (1.35-1.60“ Bottom to Ring Center)
6 Torx Screws Per Ring, Can Fit 60mm Objective Lens Scope, CNC Well Machined, 1913 Picatinny
Height = 34.5-40.5mm
- Diameter: 34mm
- Height: 34.5-40.5mm (1.35-1.60in) from bottom to ring center
- Ring Width: 26mm 1"
- Weight (net): 165g / 5.8oz; 190g
- Finish: Black matte
- Material: 6061-T6
- Mount: 1913 Picatinny
- Unique construction provides strength well with steel cross-bolt
- Six Torx screws per ring will hold your scope under any conceivable situations
- perfect alignment and superior accuracy
- Do not use over 18 inches/pounds of torque on the scope rings' screws
- Fittings include: Hex key
- Suggest 25 inch/pounds (can accept max 45 inch/pounds) torque force for big nut when installing the mount on the Picatinny rail
1. What scope tube size do these fit?
They’re designed for 34mm scope tubes.
2. What rail system do they mount to?
They fit standard 1913 Picatinny rails.
3. How does the adjustable elevation work?
The ring height can be adjusted roughly from 34.5mm to 40.5mm (bottom to centre), letting you fine-tune scope alignment.
4. Why would I want adjustable rings instead of fixed ones?
Because you can correct small height or alignment issues without buying different ring sizes or adding risers.
5. Are they actually stable once adjusted?
Yes—each ring uses 6 Torx screws plus a solid cross-bolt design to keep everything locked down.
6. What are they made from?
CNC-machined 6061-T6 aluminium alloy with a matte black finish.
7. Are they suitable for large scopes?
Yes, they can clear scopes with up to around a 60mm objective lens, depending on setup.
8. Do they hold zero under recoil?
For most rifles and normal recoil levels, yes—proper torqueing is key, like with any rings.
9. Are they hard to install?
Slightly more involved than normal rings because you’re also setting height adjustment, but still straightforward with the included tool.
10. Who are these best for?
They’re ideal for shooters who want a budget-friendly way to fine-tune scope alignment on a Picatinny setup without overcomplicating things.
