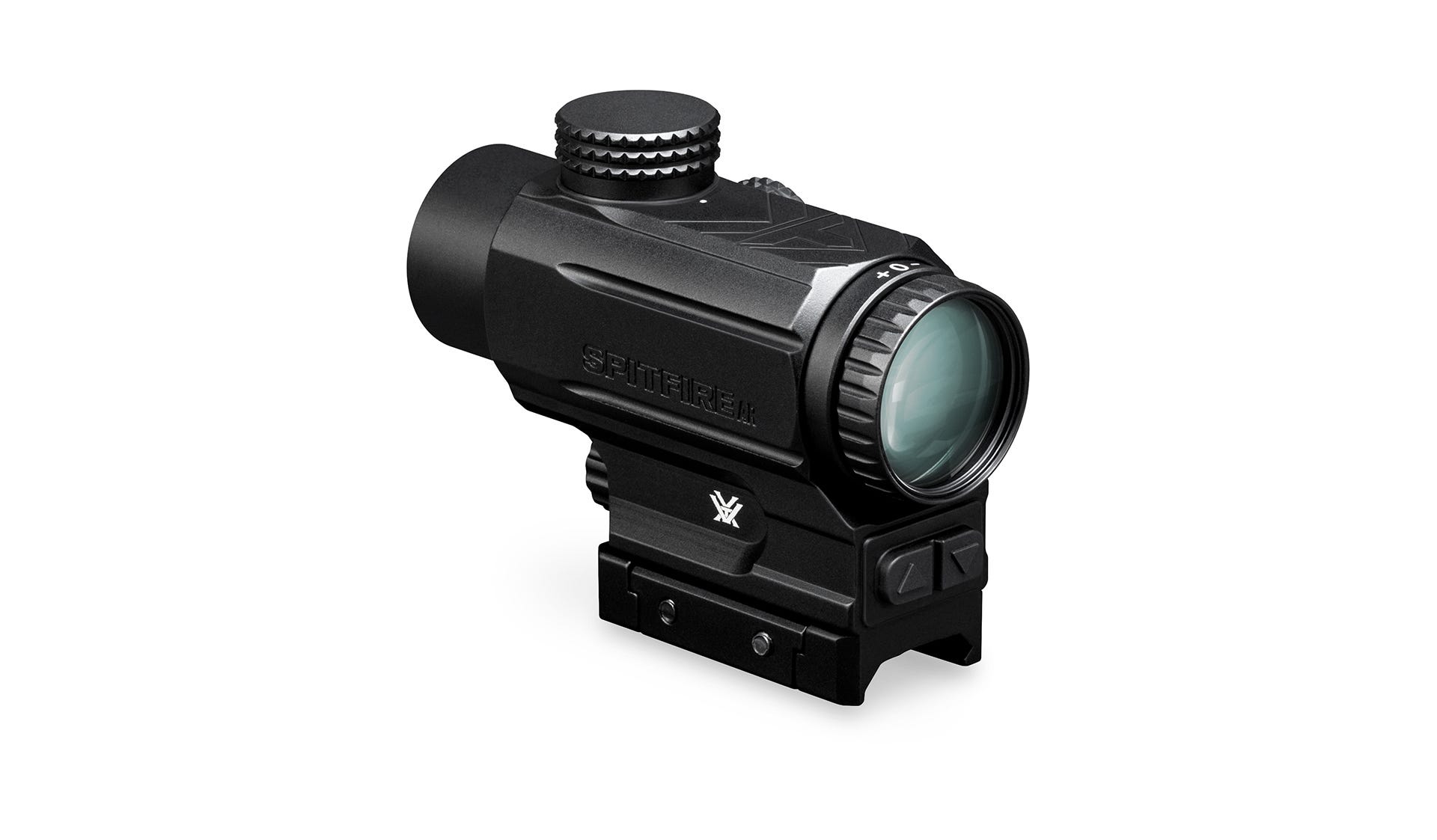

Vortex Spitfire AR Prism Scope
Get the speed of a red dot with the clarity of a scope using the Vortex Spitfire AR Prism Scope, a compact optic built specifically for fast, close-quarters shooting. Featuring a prism-based design with a glass-etched DRT (Dual Ring Tactical) reticle, it delivers a crisp aiming point that remains visible even without battery power—making it ideal for shooters with astigmatism or those who demand reliability in all conditions. The true 1x magnification allows rapid, both-eyes-open shooting, while 12 brightness settings with red and green illumination let you adapt instantly to any lighting environment. With a forgiving eye box, parallax-free performance, and a rugged, lightweight aluminium build, the Spitfire AR is designed to keep you on target when speed matters most
-Nathan (Technical Advisor)
Vortex Spitfire AR Prism Scope

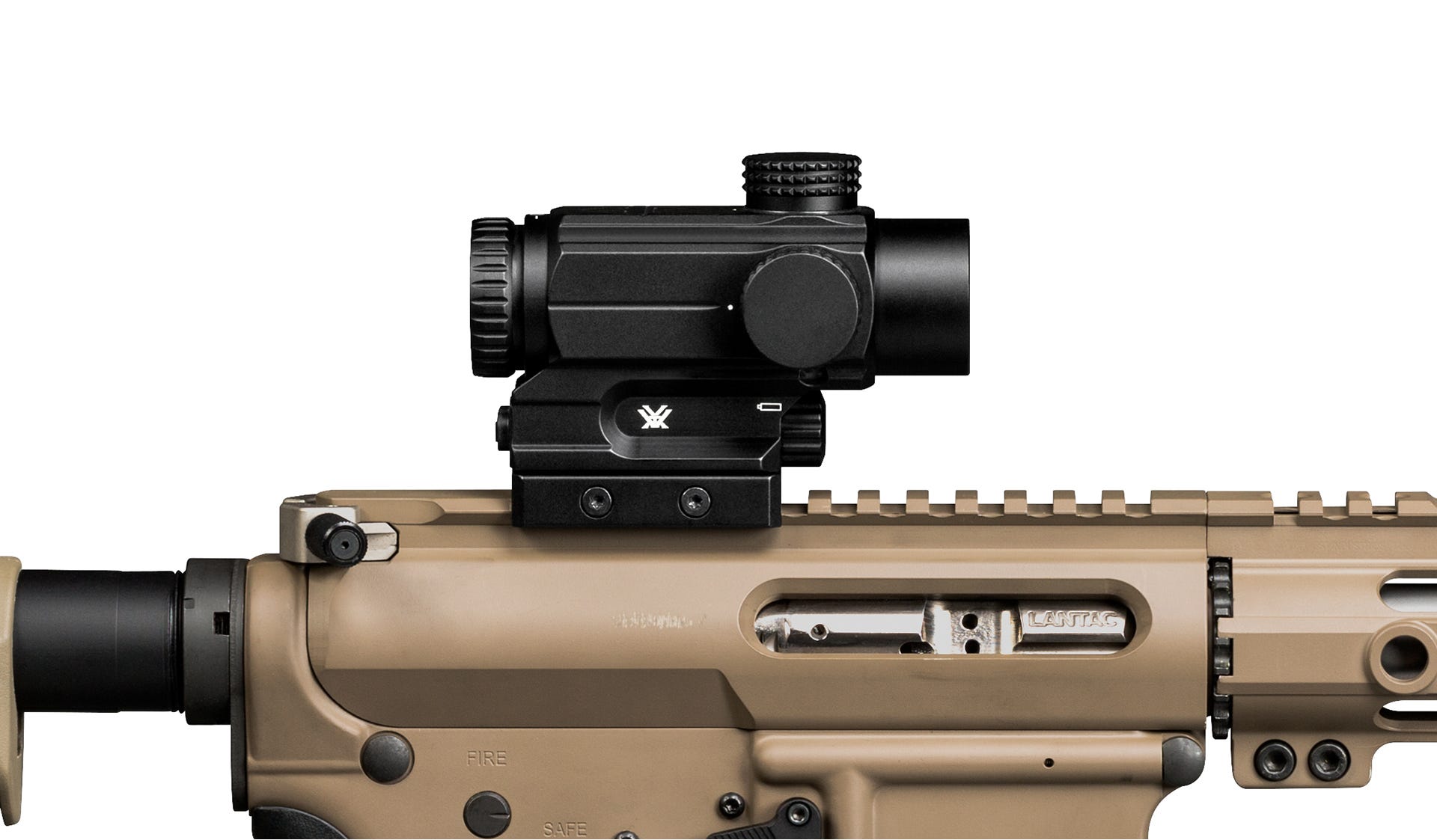

Built from the ground up specifically to maximise the quick-handling performance of AR-platform rifles, the Vortex Spitfire AR Prism Scope delivers incredible optical quality and ultra-fast functionality in a lightweight, streamlined package. The generous, parallax-free, sight picture and forgiving eye box gets shooters on target effortlessly—even in high-stress scenarios.
Rear facing power and illumination intensity controls are easy to access, simple to operate, stay visually present from the shooting position and are protected from incidental contact. Ten intensity levels let you adjust to perfectly match ambient light conditions. Runs off a single, common, AAA battery. The DRT (Dual Ring Tactical) reticle is etched directly on the prism to assure consistent point-of-aim at all times— regardless of whether or not the illumination is engaged. An additional yardage-marked turret cap (ballistic-matched to the 5.56 cartridge) allows the shooter to swap out the factory-installed cap for rapid dialling of known-distance shots out to 700 yards.
At 11.2 ounces, the lightweight Spitfire AR excels in close to medium-range shooting applications where speed is of the essence, making it the ideal choice for AR shooters who needs to get on target fast. Prism Scopes are not compatible with the VMX-3T Magnifier.
- Neutral pressure nitrogen purging guarantees waterproofing and fog proofing that withstands the elements at any elevation.
- Waterproof performance design to withstand harsh weather conditions.
- Lifetime. Unlimited. Unconditional. Vortex will repair or replace the product in the event it becomes damaged or defective.
Vortex Spitfire AR Prism Scope
| Magnification | 1 x |
| Objective Lens Diameter | 25 mm |
| Eye Relief | 3.8 inches |
| Field of View | 79 feet/100 yards |
| Adjustment Graduation | 1/2 MOA |
| Max Elevation Adjustment | 120 MOA |
| Max Windage Adjustment | 120 MOA |
| Parallax Setting | Parallax Free |
| Length | 4.3 inches |
| Weight | 11.2 ounces |
| Product Manual (PDF) | Download |
Vortex Spitfire AR Prism Scope
Optical Features |
|
| Fully Multi-Coated | Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission. |
| Prism-Based Design | Delivers sharp optics and allows for unique reticle designs that are visible with or without illumination. |
| Brightness Settings | Provides 12 variable illumination settings—adjusts for use in very dim to very bright lighting conditions. |
Construction Features |
|
| Single-Piece Chassis | Compact and lightweight. |
| Nitrogen Gas | Nitrogen gas purging with o-rings-seals delivers fog proof, waterproof performance. |
| Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
| Shockproof | Rugged construction withstands recoil and impact. |
| Hard Anodized Finish | Highly durable low-glare matte finish. |
| Operating Temperature | Rated from -22 degrees to +122 degrees Fahrenheit. |
Convenience Features |
|
| Mount Height | Comes mounted at a lower 1/3 co-witness height of 40.4 mm from the optic centre to base surface. |
| Adjustable Brightness | Provides five levels of brightness intensity with red and green illumination settings. |
| Red/Green Reticle Option | Allows shooters a choice of dot colour. |
| Battery Life | 14-hour auto-shutdown feature maximises battery life. Typical battery life is 250 hours at maximum brightness and 3,000 hours at minimum brightness setting. |
- T-10 torx wrench
- 556 BDC Turret Cap
- AAA battery
- Flip Caps
1. What magnification does the Spitfire AR have
It is a true 1x prism scope, designed for fast target acquisition at close range
2. What makes a prism scope different from a red dot
It uses a glass-etched reticle instead of a projected dot, meaning the reticle is visible even without illumination or battery power
3. What reticle does it use

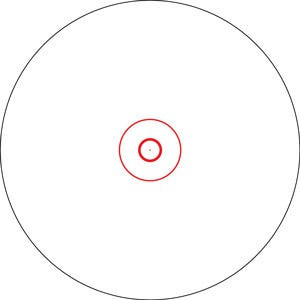

It features the DRT (Dual Ring Tactical) MOA reticle, designed for fast target acquisition and close-quarters precision
4. Is the reticle illuminated
Yes, it offers both red and green illumination with multiple brightness settings
5. How many brightness settings does it have
It provides up to 12 illumination settings for different lighting conditions
6. What is the battery life
Battery life is approximately 250 hours on high settings and up to 3,000 hours on low settings
7. Is it parallax free
Yes, it is designed to be parallax-free for fast and accurate shooting
8. Can it be used with a magnifier
No, prism scopes like the Spitfire AR are not compatible with magnifiers
9. What is the adjustment click value
It uses 1/2 MOA adjustments for windage and elevation
10. What warranty does it come with
It is covered by the Vortex VIP Lifetime Warranty, which is unlimited, unconditional, and transferable
