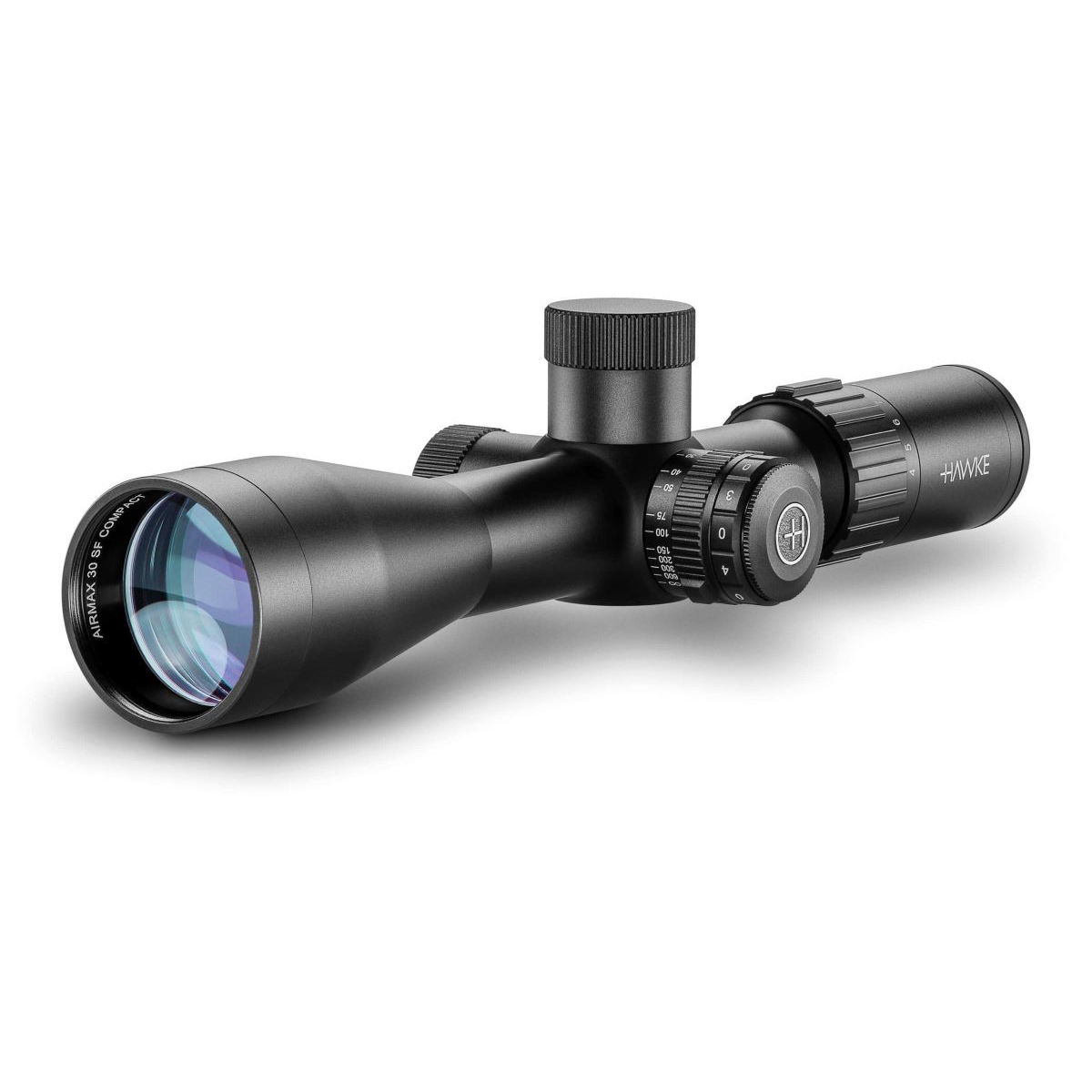

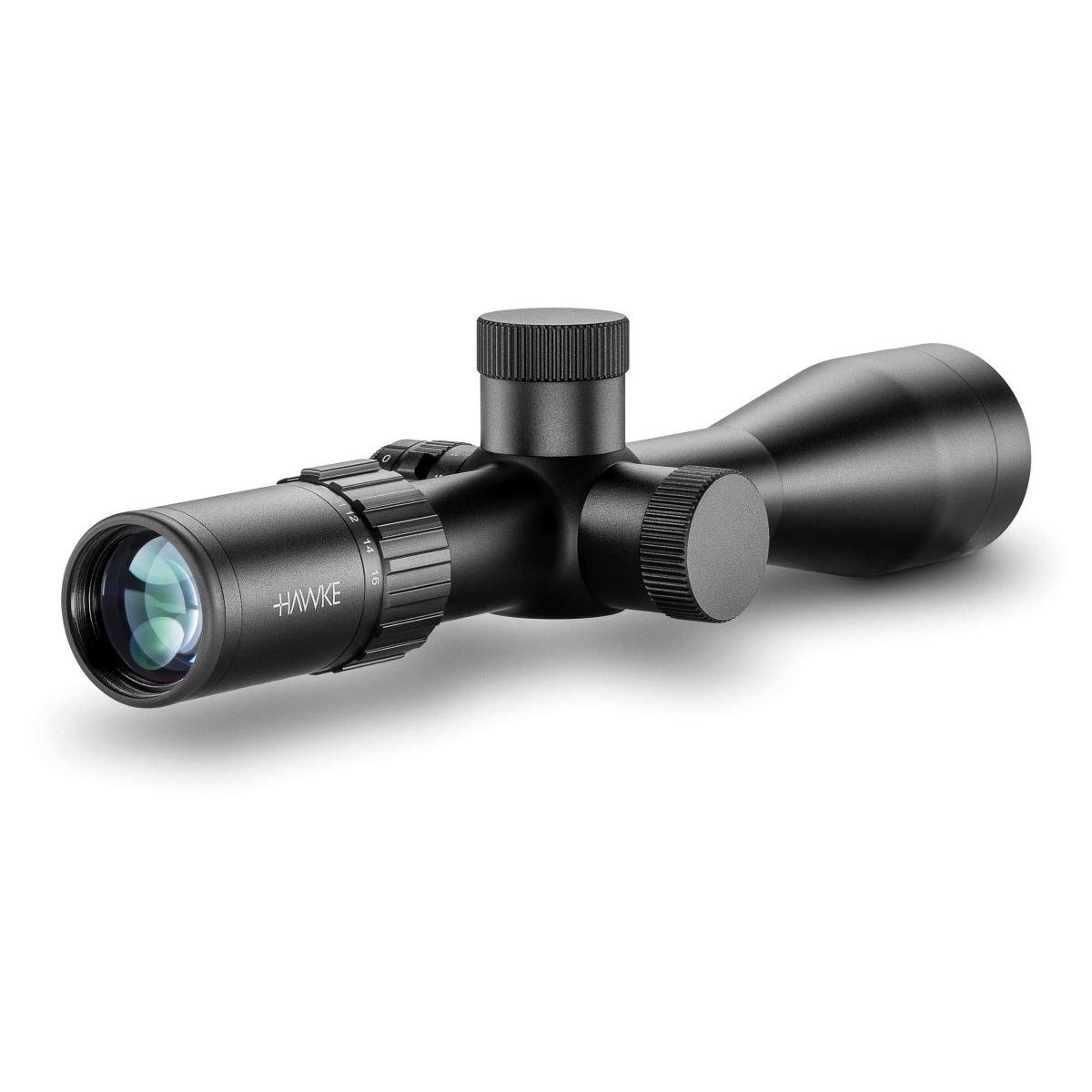

Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR 30mm Rifle Scope
- Robust 30mm mono-tube chassis for durability and lightweight handling
- 16-layer fully multi-coated lenses delivering clear and bright images
- Specialised AMX IR reticle with multiple holdover points for accurate long-range shooting
- Capped target turrets and side focus parallax correction for precise adjustments
- Six-level red illumination for improved reticle visibility in various lighting conditions
- Wide field of view ranging from 32.8 to 8.2 feet at 100 yards for excellent situational awareness
The Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR rifle scope is expertly crafted to meet the unique demands of airgun shooters. Utilising the advanced H2 optical system, it delivers exceptional clarity and brightness through 16-layer fully multi-coated lenses, ensuring sharp, vibrant images in varied lighting conditions. Its robust 30mm mono-tube chassis offers durability while remaining lightweight and compact, ideal for agile handling.
Designed specifically for airguns, the AMX IR reticle provides multiple precise aim points, with half mil-dot spacing on the lower post for enhanced long-range accuracy. The strategically placed horizontal bars and segmented hollow posts allow for effective bracketing and holdovers on challenging shots. Illumination is easily adjusted across six red brightness levels via a stepped rheostat, allowing for optimal reticle visibility without overpowering the sight picture.
The scope features capped target turrets for protected and accurate windage and elevation adjustments, complemented by a side focus parallax system that ensures error-free aiming from 10 yards to infinity. The high torque zoom ring offers smooth magnification changes between 4 and 16 times, while the fast-focus eyebell allows quick reticle focusing tailored to individual eyesight. With a generous field of view ranging from 32.8 to 8.2 feet at 100 yards, this scope delivers excellent target tracking and situational awareness. Built to withstand recoil from all calibres, it is nitrogen purged, shockproof, waterproof, and fog proof, promising reliable performance in all conditions. The Hawke AIRMAX is backed by the Hawke No-Fault Lifetime Warranty, offering peace of mind and long-lasting quality.
- Optical System System H2
- Scope Tube 30mm
- Magnification 4 - 16x
- Objective Lens 44mm
- Reticle AMX IR
- Illumination 6 Levels (Red)
- Illumination Control Stepped Rheostat with Off Positions In-between
- Parallax Side Focus
- Field of View 32.8 - 8.2ft @ 100yds / 10.9 - 2.7m @ 100m
- Field of View (°) 6.3 - 1.6
- Eye Relief 3in / 76mm
- PX/Focus (Error free from) 10yds - ∞ / 9m - ∞
- Click Value 1/10 MRAD
- Turret Type (Elevation) Target

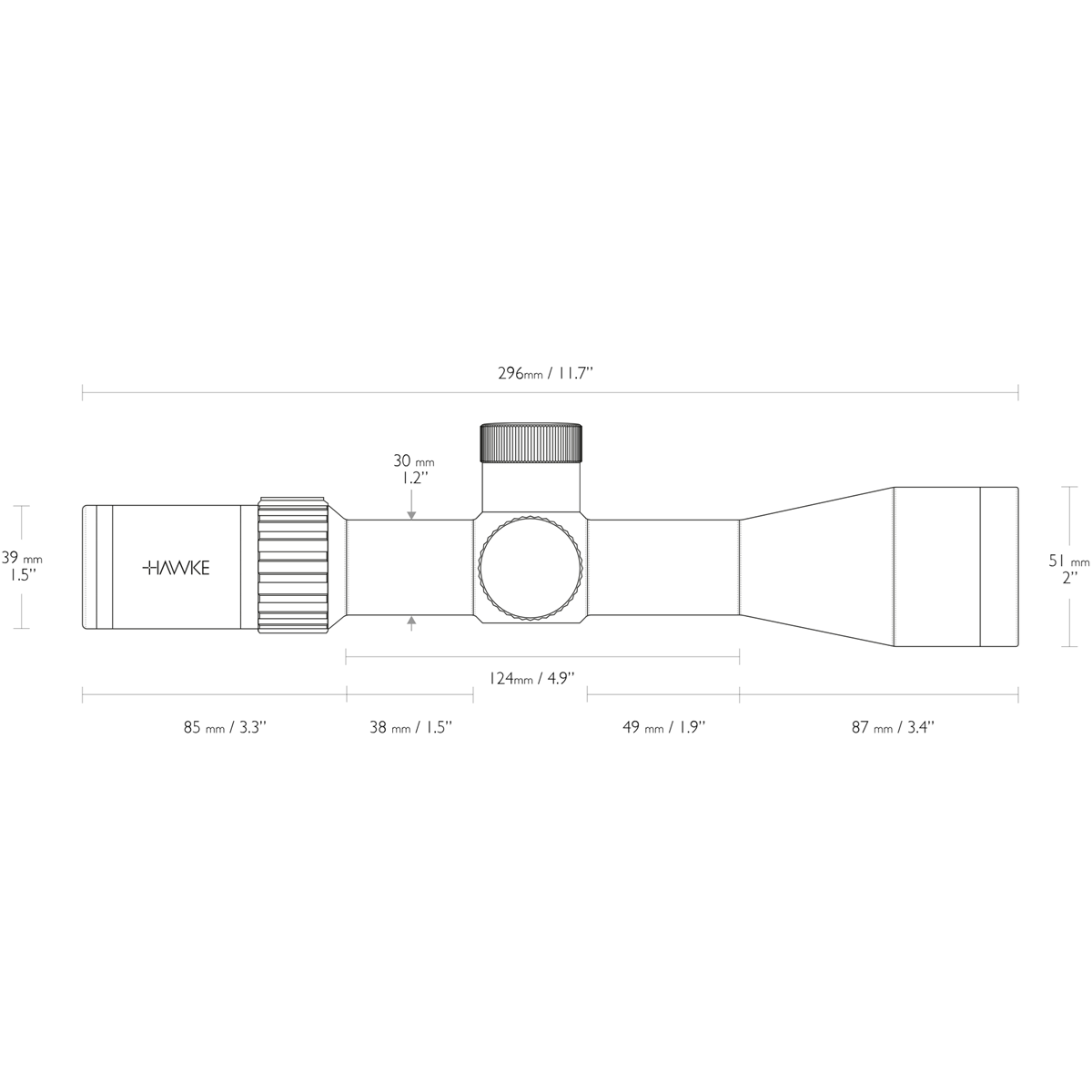

- Length 11.7in / 296mm
- Weight 21.9oz / 621g
-
Specialised AMX IR reticle designed for airgun trajectories with multiple precise aim points and half mil-dot spacing
-
16-layer fully multi-coated lenses for superior brightness, clarity, and reduced glare
-
Durable yet lightweight 30mm mono-tube chassis for strength and easy handling
-
Capped target turrets offering protected, repeatable, and accurate windage and elevation adjustments
-
Side focus parallax system to eliminate parallax error from 10 yards to infinity
-
Six-level red illumination with stepped rheostat control and off positions for optimal reticle visibility
-
Smooth high torque zoom ring for effortless magnification adjustment between 4x and 16x
-
Fast-focus eyebell for quick reticle focusing tailored to the shooter’s eyesight
-
Nitrogen purged, shockproof, waterproof, and fog proof for reliable performance in all weather conditions
-
Supported by the Hawke No-Fault Lifetime Warranty for peace of mind and lasting quality

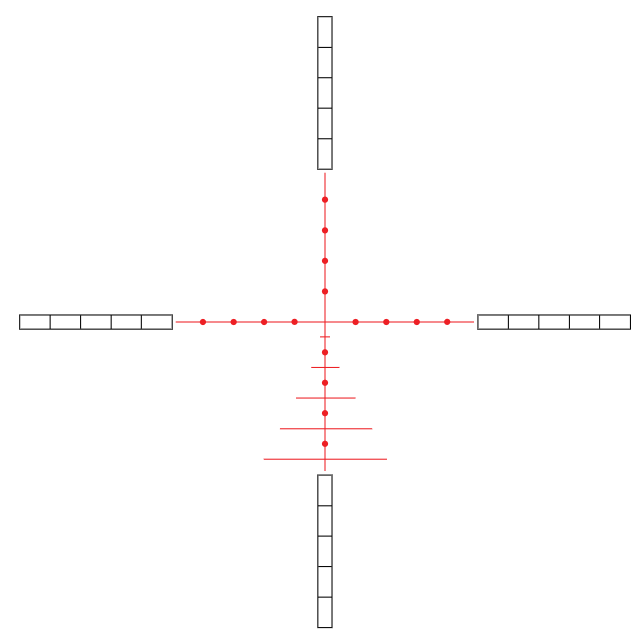

AMX RETICLE
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories. Half Mil Dot spacing on the lower post provides increased aim points for long shots. The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
- Hawke AIRMAX 30 SF COMPACT 4-16x44 AMX IR Rifle Scope
- Instruction Manual
- Reticle Booklet
- Lens Cloth
- Bikini Style Lens Covers
- 3" Sidewheel
- CR2032 Battery
- Hawke Worldwide Warranty.
Download Manual HERE
