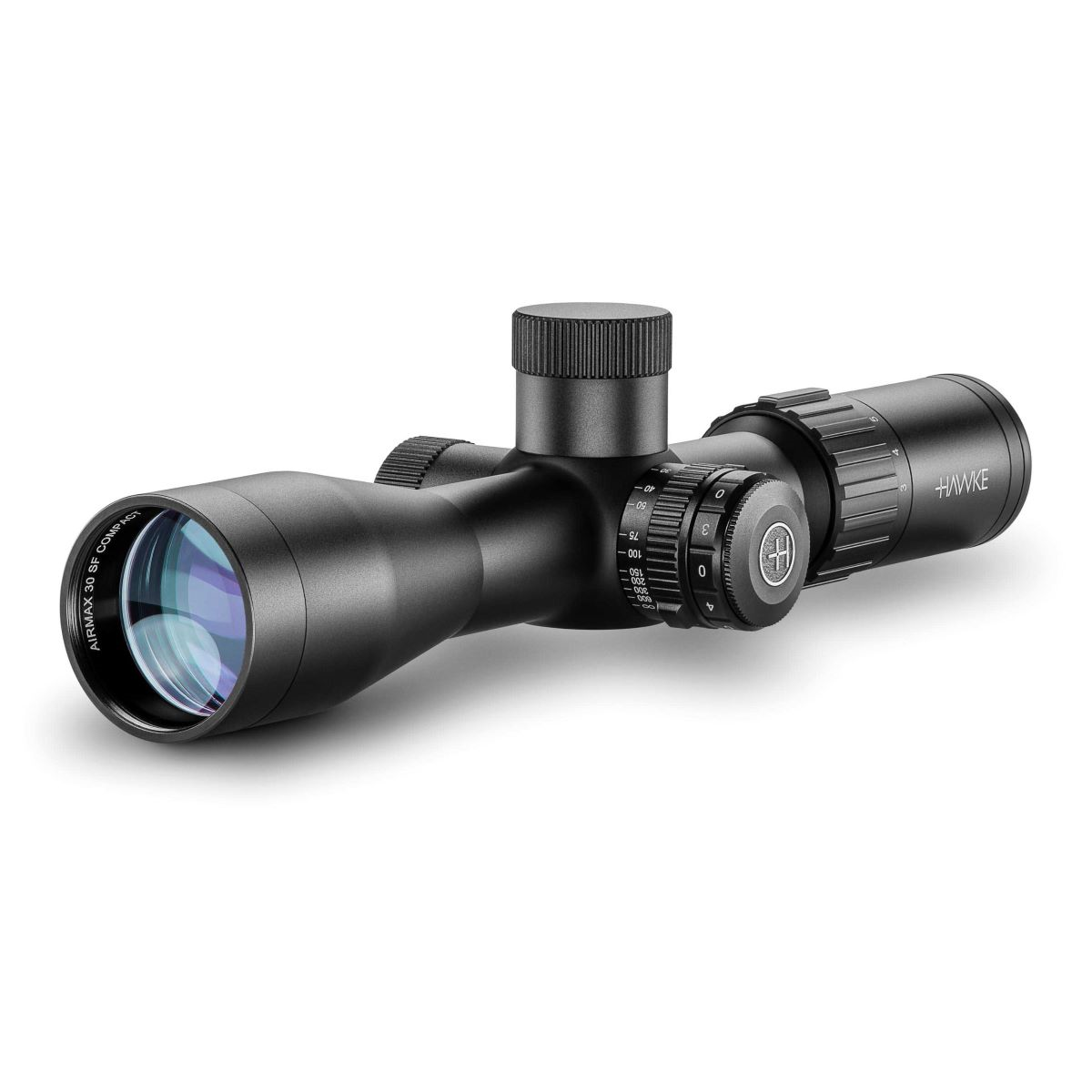

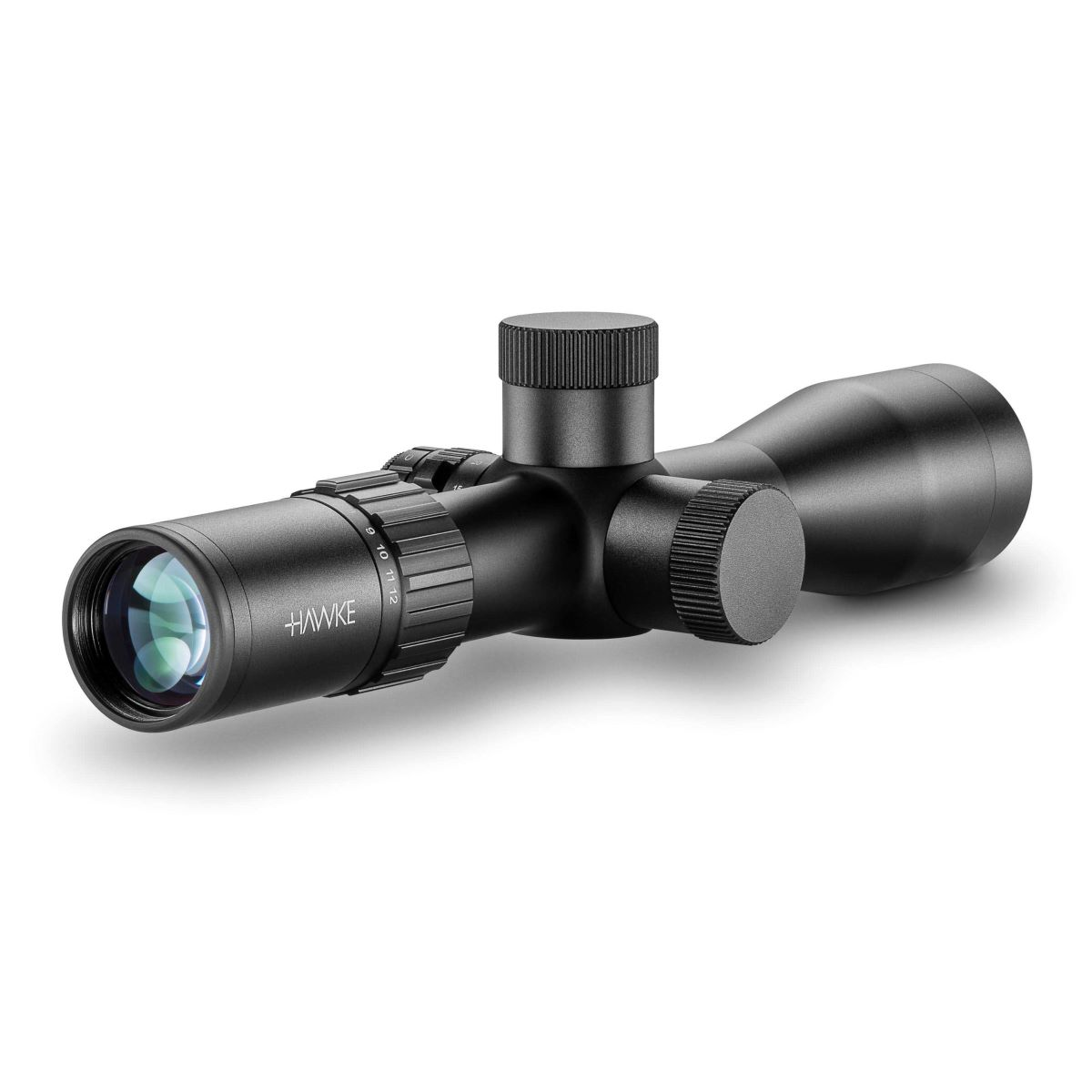

Hawke Airmax 30 SF Compact 3-12x40: AMX IR 30mm Rifle Scope
- Lightweight and durable 30mm mono-tube chassis designed for airgun use
- Advanced H2 optics with 16-layer fully multi-coated lenses for clear, bright images
- Specialised AMX IR reticle offering precise long-range aiming and holdover points
- Side focus parallax correction for sharp targeting from 10 yards to infinity
- Six-level red illumination and capped target turrets for easy low-light use and precise adjustments
- Wide field of view ranging from 43.7 to 10.9 feet at 100 yards for excellent target tracking
The Hawke Airmax 30 SF Compact 3-12x40 AMX IR rifle scope is expertly engineered for airgun enthusiasts seeking precision in a streamlined design. Featuring the advanced H2 optical system, it delivers sharp, bright images through 16-layer fully multi-coated lenses that maximise light transmission. The scope’s 30mm mono-tube chassis ensures durability and strength while remaining lightweight and compact, perfect for versatile field use.
Designed with airgun shooters in mind, the AMX IR reticle offers multiple precise aim points based on mil-dot spacing, allowing for accurate holdovers even with loopy trajectories. The half mil-dot spacing on the lower post and strategically placed horizontal bars enhance long-range shot accuracy and bracketing. The scope’s six-level red illumination is controlled by a stepped rheostat, providing adjustable brightness with off positions for seamless low-light operation.
Additional features include capped target turrets for protected yet precise adjustments, side focus parallax correction from 10 yards to infinity, and a high torque zoom ring that enables smooth magnification changes from 3 to 12 times. The fast-focus eyebell allows quick reticle clarity adjustment, while the generous field of view, ranging from 43.7 to 10.9 feet at 100 yards, offers excellent situational awareness. Built to withstand recoil from all calibres, this scope is nitrogen purged, shockproof, waterproof, and fog proof, ensuring reliable performance in any condition. The Hawke No-Fault Lifetime Warranty guarantees enduring quality and peace of mind.
- Optical System System H2
- Scope Tube 30mm
- Magnification 3 – 12x
- Objective Lens 40mm
- Reticle AMX IR
- Illumination 6 Levels (Red)
- Illumination Control Stepped Rheostat with Off Positions In-between
- Parallax Side Focus
- Field of View 43.7 – 10.9ft @ 100yds / 14.6 – 3.6m @ 100m
- Field of View (°) 8.3 – 2.1
- Eye Relief 3in / 76mm
- Parallax/Focus Range 10yds – ∞ / 9m – ∞
- Click Value 1/10 MRAD
- Turret Type (Elevation) Target

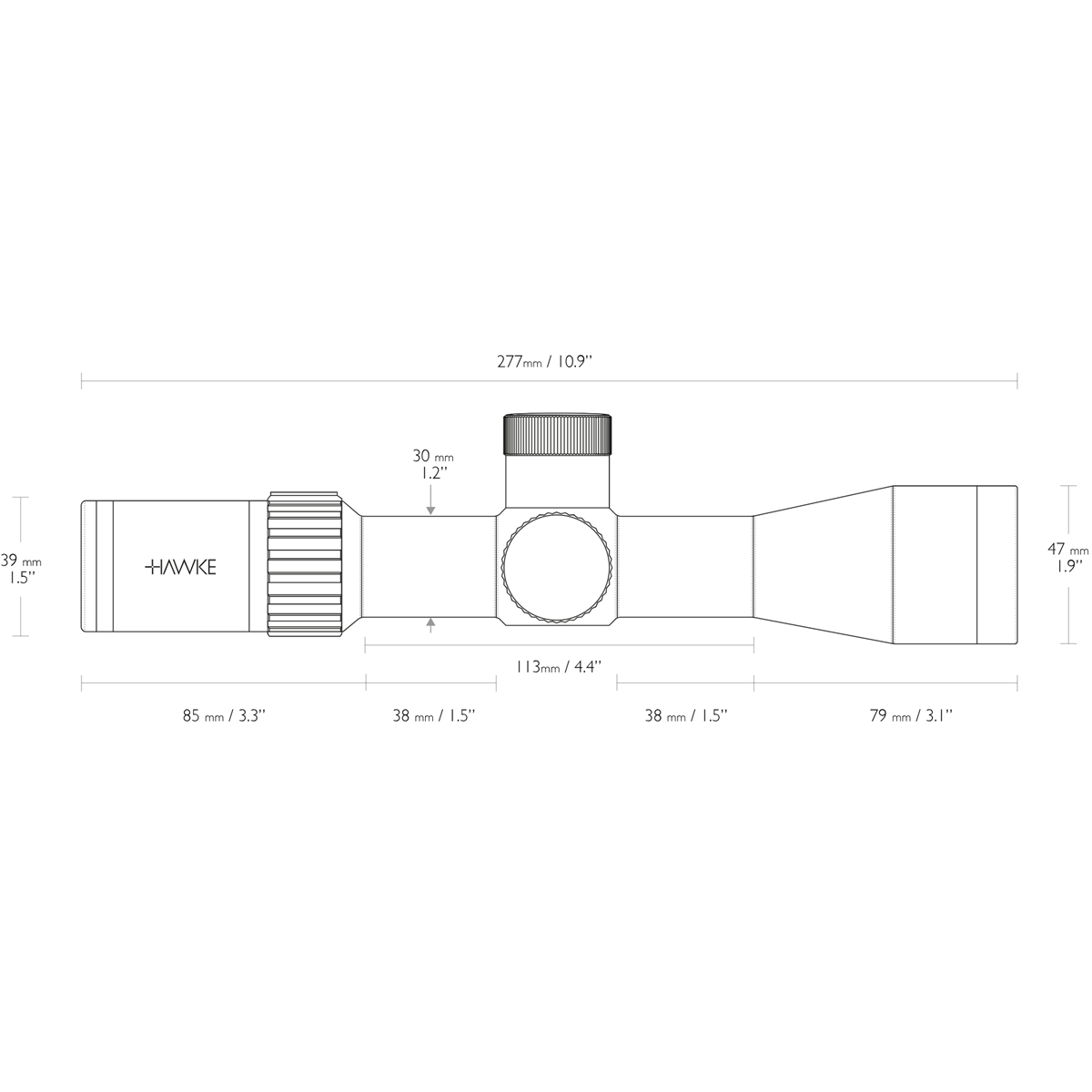

- Length 10.9in / 277mm
- Weight 20.8oz / 589g
-
Specialised AMX IR reticle designed for airgun trajectories with multiple holdover points and half mil-dot spacing
-
16-layer fully multi-coated lenses for exceptional brightness and clear images in low light
-
Durable yet lightweight 30mm mono-tube chassis for reliable performance in the field
-
Capped target turrets providing protected, precise, and repeatable adjustments
-
Side focus parallax system adjustable from 10 yards to infinity for accurate targeting
-
Red reticle illumination with six adjustable brightness levels for versatile low-light use
-
Smooth high torque zoom ring for effortless magnification changes
-
Fast-focus eyebell for quick reticle focusing tailored to the shooter’s eyesight
-
Nitrogen purged, shockproof, waterproof, and fog proof for resilience in all weather conditions
-
Compatible with all calibres, offering versatility across airgun types
-
Backed by the Hawke No-Fault Lifetime Warranty for peace of mind and long-term satisfaction

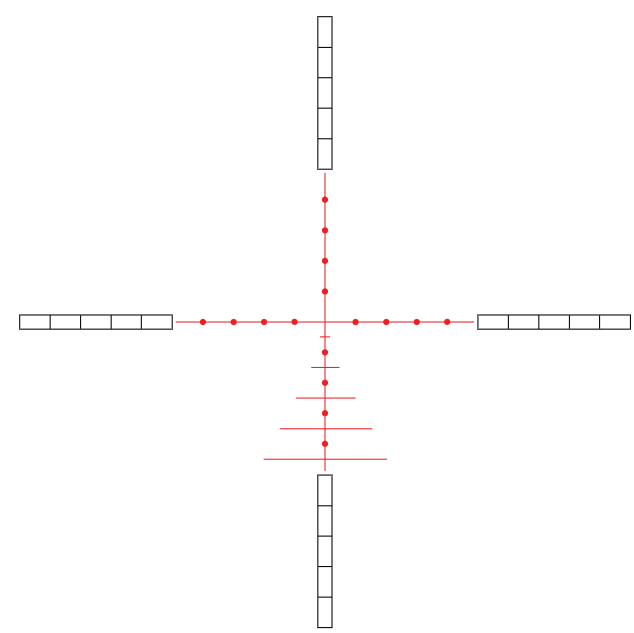

AMX RETICLE:
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil-Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
-
Instruction Manual
-
Reticle Booklet
-
Lens Cloth
-
Bikini Style Lens Covers
-
3" Sidewheel
-
CR2032 Battery
- Hawke No-Fault Lifetime Warranty.
